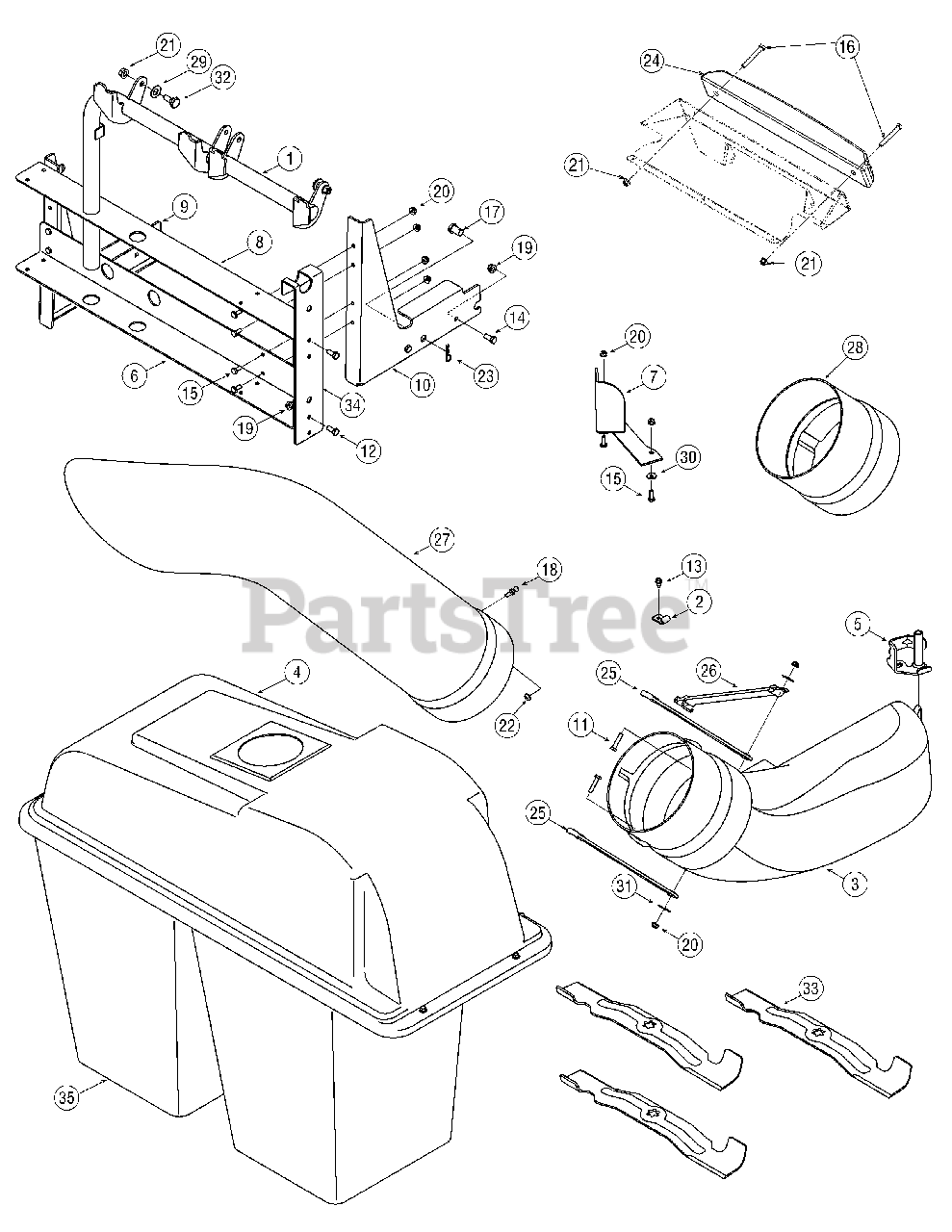

590-303 - Troy-Bilt 50" Double Bagger > Parts Diagrams (2) > General Assembly 1

  • Title
16592

1

Support Tube Assembly

Part# 16592 (Superseded to 16592-0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $126.98

Variations

POWDER BLACK (0637)

TUBE ASSY-SUPPORT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $126.98

16606

2

Retainer Hook Bracket

Part# 16606 (Superseded to 96606)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $4.92

631-0221A

3

Chute Elbow

Part# 631-0221A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $169.76

664-04017

4

Grasscatcher Cover Assembly

Part# 664-04017

OEM Warranty Repair Part for MTD

Not available

683-0617A

5

Chute Stop Bracket

Part# 683-0617A (Superseded to 683-0617A-0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $44.16

Variations

POWDER BLACK (0637)

STOP-CHUTE DEFLECT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $44.16

703-05195

6

Hanger Bracket - Bottom

Part# 703-05195 (Superseded to 703-05195-0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $81.38

Variations

POWDER BLACK (0637)

BRACKET-HANGER BLK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $81.38

703-05783

7

Deck Deflector

Part# 703-05783

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BAFFLE-50" DECK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $56.94

703-05833

8

Hanger Bracket - Top (w/ cutout)

Part# 703-05833

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $84.44

Variations

POWDER BLACK (0637)

BRACKET-TOP HANGER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $84.44

783-05856A

9

Catcher Mounting Bracket LH

Part# 783-05856A

OEM Warranty Repair Part for Troy-Bilt

Currently unavailable

703-05858A

10

Catcher Mounting Bracket RH

Part# 703-05858A

OEM Warranty Repair Part for MTD

Not available

710-0106

11

Hex Bolt 1/4-20 x 1.25 Gr5

Part# 710-0106

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0376

12

Hex Bolt 5/16-18 x 1.00 Gr5

Part# 710-0376

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.69

710-0599

13

TT Screw 1/4-20 x 0.5

Part# 710-0599

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-3008

14

Hex Bolt 5/16-18 x .75 Gr5

Part# 710-3008

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.76

710-3015

15

Hex Bolt 1/4-20 x 0.75 Gr5

Part# 710-3015

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.68

710-3022

16

Hex Bolt 3/8-16 x 2.75 Gr5

Part# 710-3022

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.03

711-0332

17

Clevis Pin

Part# 711-0332 (Superseded to 911-0332)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $10.99

711-04069

18

Grasscatcher Pin

Part# 711-04069 (Superseded to 911-04069)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $5.75

712-04063

19

Flange Lock Nut, 5/16-18 GrF

Part# 712-04063

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.75

712-04064

20

Flange Lock Nut 1/4-20 GrF

Part# 712-04064

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.67

712-04065

21

Flange Lock Nut 3/8-16 GrF

Part# 712-04065

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.71

712-3027

22

Flange Lock Nut 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.82

714-04023

23

Cotter Pin

Part# 714-04023 (Superseded to 914-04023)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.85

719-04271A

24

Weight Bar

Part# 719-04271A

Note: Bolts to foot rest as shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $188.76

719-04069

24

Weight Bar

Part# 719-04069 (Superseded to 02002426)

Note: Bolts to weight bar bracket, Not shown. Refer to model 590-302 for image.

OEM Warranty Repair Part for Troy-Bilt

Not available

603-04201

24

Weight Bar Bracket

Part# 603-04201

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $260.05

Variations

POWDER BLACK (0637)

BRACKET ASM-WEIGHT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $260.05

710-3011

24

Hex Bolt 3/8-16 x 2.25

Part# 710-3011

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $4.75

710-3144

24

Hex Bolt 3/8-16 x 2.0

Part# 710-3144

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.94

703-05494

24

Clamp: Weight Bar Bracket

Part# 703-05494

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Variations

POWDER BLACK (0637)

CLAMP-WEIGHT BRKT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Not available

712-0431

24

Top Lock Flange Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $3.18

723-04009A

25

Chute Strap

Part# 723-04009A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $7.75

723-0476

26

Chute Strap

Part# 723-0476

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $22.66

731-0926B

27

Chute Tube

Part# 731-0926B

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $94.48

731-2299A

28

Chute Extension

Part# 731-2299A

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $53.77

736-0253

29

Bell Washer

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.63

736-0270

30

Bell Washer

Part# 736-0270

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.66

736-3092

31

Flat Washer

Part# 736-3092

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.71

738-0380

32

Shoulder Screw 3/8-16

Part# 738-0380 (Superseded to 938-0380)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $5.39

742-04056C

33

Blade

Part# 742-04056C (Superseded to 942-04056C)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $27.18

Variations

POWDER BLACK (0637)

BLADE:17.90 LG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $27.18

783-0601

34

Catcher Support Bracket

Part# 783-0601

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $24.05

Variations

POWDER BLACK (0637)

BRACKET-SUPPORT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $24.05

N/A

35

Grassbag Assembly

Part# N/A

Note: furnish components.

Not available

16591A

35

Bag Frame Hanger Bracket

Part# 16591A (Superseded to 16591A-0637)

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $42.66

Variations

POWDER BLACK (0637)

BRACKET-HANGER BAG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $42.66

710-0473

35

Screw, #10-24 x .5

Part# 710-0473

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.85

712-0272

35

Hex Sems Nut, 10-24

Part# 712-0272

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.63

764-0221

35

Bag

Part# 764-0221 (Superseded to 964-0221)

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $50.08

749-0701A

35

Frame Tube for Bag

Part# 749-0701A

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $42.44

Variations

POWDER BLACK (0637)

FRAME CATCHER BAG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 3 to 6 business days

Your price: $42.44

710-0604

35

Self Tapping Screw, 5/16-18 x .625

Part# 710-0604 (Superseded to 710-0604A)

Note: Not shown

OEM Warranty Repair Part for Troy-Bilt

Usually leaves our warehouse in 1 business day

Your price: $2.92
