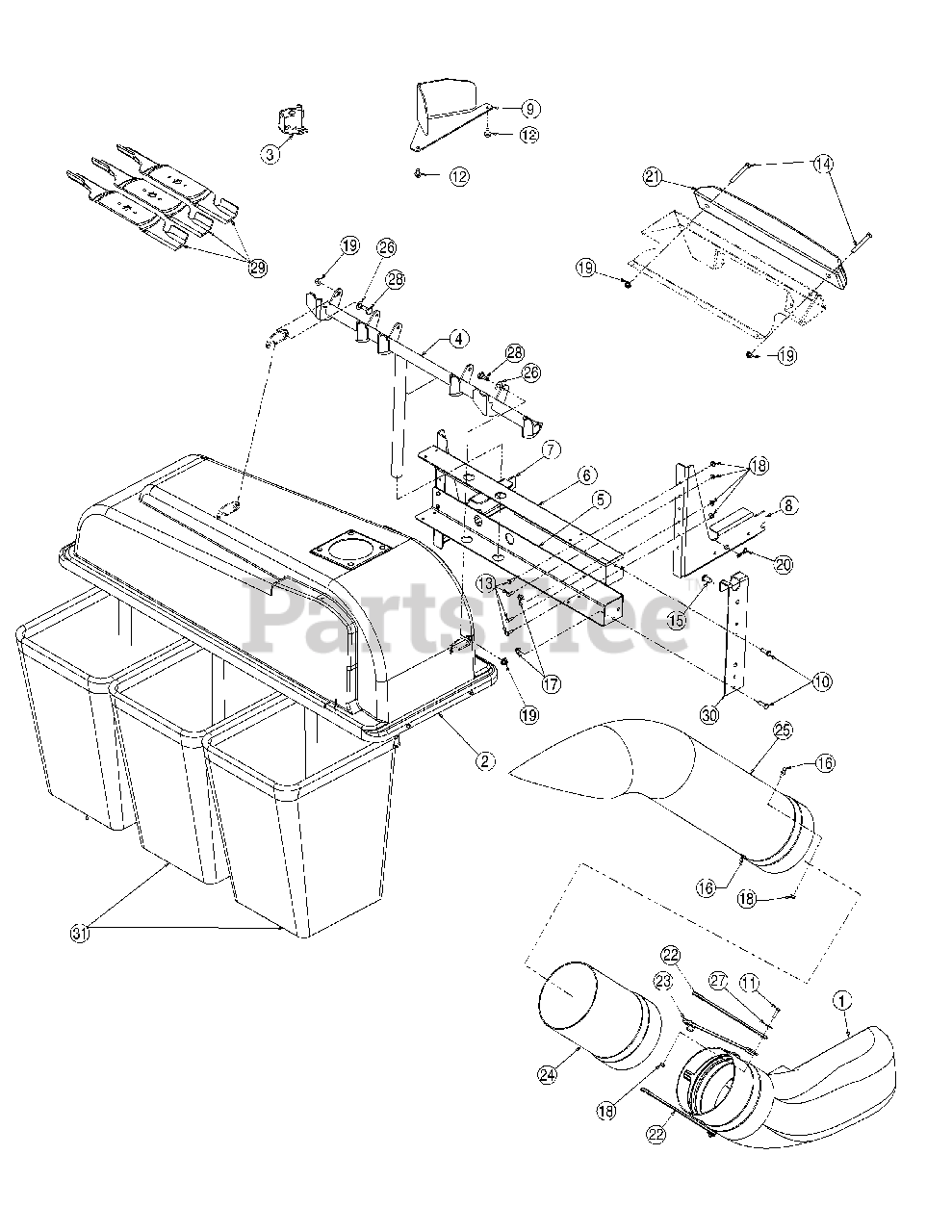

590-304-000 - White Outdoor Triple Bag Grass Collector General Assembly Parts Diagram

Triple Bag Grass Collector

General Assembly Parts Diagram

  • Title

1

White Outdoor 631-04238

Chute, Elbow

$

$

Not available

2

White Outdoor 664-04018

Grasscatcher Cover Assembly

$

$

Not available

3

White Outdoor 683-0617A

Chute Stop Bracket
(Superseded to 683-0617A-0637)

Variations

White Outdoor 683-0617A-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

4

White Outdoor 689-00002

Support Assembly, Grasscatcher
(Superseded to 689-00002-0637)

Variations

White Outdoor 689-00002-0637

SUPPORT ASSY-GRASSCATCHER - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 703-05195

Hanger Bracket - Bottom
(Superseded to 703-05195-0637)

Variations

White Outdoor 703-05195-0637

BRACKET-HANGER BLK - POWDER BLACK (0637)

$103.99

$

Usually ships in 3-6 days

0

$103.99

$

Usually ships in 3-6 days

0

6

White Outdoor 703-05833

Hanger Bracket - Top (w/ cutout)

Variations

White Outdoor 703-05833-0637

BRACKET-TOP HANGER - POWDER BLACK (0637)

$112.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

7

White Outdoor 703-05856A

Bracket, Catcher Support LH
(Superseded to 703-05856A-0637)

Variations

White Outdoor 703-05856A-0637

SUPPORT-LH MOUNTING - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

$101.99

$

Usually ships in 3-6 days

0

8

White Outdoor 703-05858A

Bracket, Catcher Support RH
(Superseded to 703-05858A-0637)

Variations

White Outdoor 703-05858A-0637

SUPPORT-RH MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 703-06018

Deflector, Deck
(Superseded to 703-06018A-0637)

Variations

White Outdoor 703-06018-0637

BAFFLE-54" DECK - POWDER BLACK (0637)

$85.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, Qty 17

0

11

White Outdoor 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Gr5

$3.99

$

In Stock, Qty 19

0

12

White Outdoor 710-0604A

Screw, Hex Wash. Hd. TT, 5/16-18 x 0.625

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3015

Screw, Hex Cap, 1/4-20 x 0.75 Gr5

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-3022

Screw, Hex Cap, 3/8-16 x 2.75 Gr5

$4.49

$

In Stock, Qty 10

0

15

White Outdoor 711-0332

Pin, Clevis , .5 x .78
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

16

White Outdoor 711-04069

Pin, Grasscatcher 1/4-20
(Superseded to 911-04069)

$7.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-04063

Nut, Hex Flange Insert Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-04064

Nut, Hex Flange Insert Lock,1/4-20

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-04065

Nut, Hex Flange Insert Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 714-04023

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 719-04271A

Weight, Bagger

$240.99

$

Usually ships in 3-6 days

0

22

White Outdoor 723-04009A

Chute Strap

$10.99

$

In Stock, only 1 left!

0

23

White Outdoor 723-0476

Chute Strap

$30.99

$

In Stock, only 3 left!

0

24

White Outdoor 731-05878

Tube, Extension, 8"

$

$

Not available

25

White Outdoor 731-0926B

Tube, Catcher

$132.99

$

Usually ships in 3-6 days

0

26

White Outdoor 736-0253

Washer, Bell, .525 x 1.0 x .05

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 736-3092

Washer, Flat, .265 x 1.0 x .03 HT

$3.99

$

In Stock, Qty 13

0

28

White Outdoor 738-0380

Shoulder Screw, .5 x .270: 3/8-16

$7.49

$

In Stock, Qty 18

0

29

White Outdoor 742-0679

Blade
(Superseded to 942-0679)

$38.99

$

Usually ships in 3-6 days

0

30

White Outdoor 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

White Outdoor 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

31

N/A

Bag Assembly, Catcher

Note: Order Componants

$

$

Not available

White Outdoor 764-0251

Bag:Ctcher:Grass Triple
(Superseded to 964-0251)

Note: Not Shown

$83.99

$

In Stock, Qty 20+

0

White Outdoor 749-0745

Tube:Frm:Grsbg Triple
(Superseded to 749-0745A-0637)

Note: Not Shown

$56.99

$

In Stock, only 1 left!

0

White Outdoor 712-0272

Hex:Sems:#10-24

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0

White Outdoor 710-0604A

Scr:TT:5/16-18:0.625

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

White Outdoor 710-0473

Screw:Truss Mach #10-24 x .50

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0

White Outdoor 17201A

Brkt:Hngr:Bag Frame
(Superseded to 17201A-0637)

Note: Not Shown

Variations

White Outdoor 17201A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0
