590-515-190 - White Outdoor Triple Bag Grass Collector Triple Bagger Parts Diagram

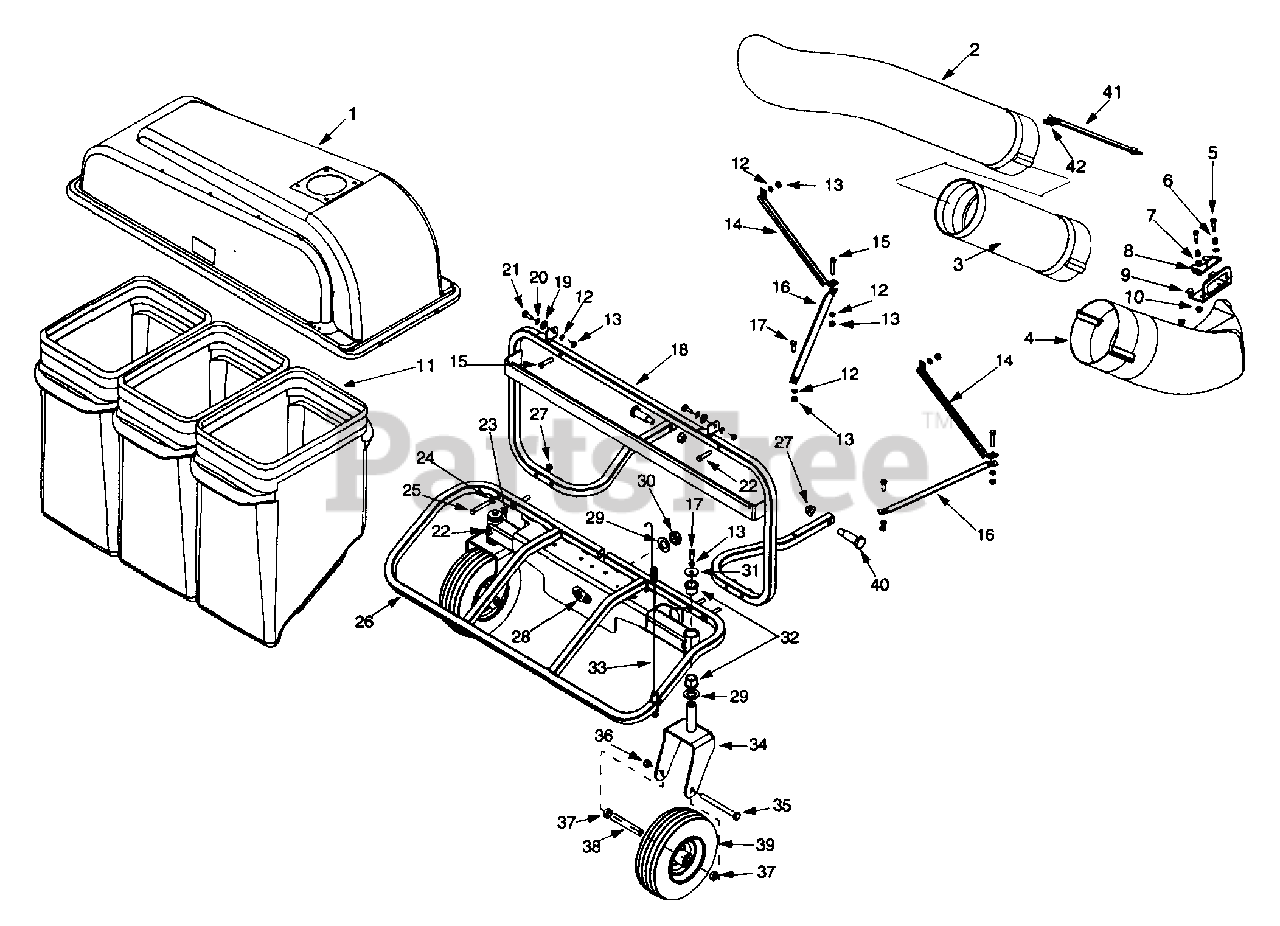

Triple Bag Grass Collector

Triple Bagger Parts Diagram

  • Title

1

White Outdoor 664-0096

Cover Assembly

$

$

Not available

2

White Outdoor 731-0899A

Upper Tube Chute
(Superseded to 731-0899E)

$115.99

$

In Stock, only 1 left!

0

3

White Outdoor 731-3334

Chute Extension
(Superseded to 731-3334A)

$

$

Not available

4

White Outdoor 731-3319

Discharge Chute
(Superseded to 731-3319B)

$

$

Not available

5

White Outdoor 738-3174

Shoulder Screw

$17.99

$

Usually ships in 3-6 days

0

6

White Outdoor 732-0334

Compression Spring .50 OD x .5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 736-0117

Flat Washer
(Superseded to 936-0117)

$7.49

$

In Stock, only 2 left!

0

8

White Outdoor 703-3604

Bagger Latch

$31.99

$

Usually ships in 3-6 days

0

9

White Outdoor 703-3538

Chute Bracket

$77.99

$

Usually ships in 3-6 days

0

10

White Outdoor 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 731-3322

Grass Bag Container

$

$

Not available

12

White Outdoor 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

14

White Outdoor 703-3558

Cover Support Brace
(Superseded to 703-3558A-0637)

Variations

White Outdoor 703-3558-0637

BRACE-COVER SUPPOR - POWDER BLACK (0637)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

16

White Outdoor 703-3559

Bagger Hitch Brace
(Superseded to 703-3559A-0637)

Variations

White Outdoor 703-3559-0637

BRACE-BAGGER HITCH - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

17

White Outdoor 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 603-0761

Cover Support Frame Assembly

Variations

White Outdoor 603-0761-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 736-0255

Bell Washer .510 ID x 1.14 OD

$4.99

$

In Stock, only 3 left!

0

20

White Outdoor 736-0108

Flat Washer.510 ID x .750 OD

$7.49

$

Usually ships in 3-6 days

0

21

White Outdoor 738-0380

Shoulder Screw

$8.49

$

In Stock, Qty 20+

0

22

White Outdoor 737-0280

Grease Fitting

$8.49

$

In Stock, only 4 left!

0

23

White Outdoor 603-0762

Axle Assembly
(Superseded to 603-0762-0637)

Variations

White Outdoor 603-0762-0637

AXLE ASSY-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 736-3050

Flat Washer .406 ID x .810 OD

$4.49

$

In Stock, Qty 16

0

25

White Outdoor 710-0859

Hex Cap Screw 3/8-16 x 2.5

$7.49

$

In Stock, Qty 20+

0

26

White Outdoor 603-0760

Bag Support Assembly

Variations

White Outdoor 603-0760-0637

No Longer Available FRAME ASSY-BAGGER - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 712-0431

Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

28

White Outdoor 603-0389A

Pivot Pin Assembly

$

$

Not available

29

White Outdoor 736-0274

Washer

$9.49

$

In Stock, Qty 9

0

30

White Outdoor 712-3075

Lock Nut
(Superseded to 712-05008)

$15.99

$

In Stock, only 2 left!

0

31

White Outdoor 736-0227

Flat Washer .390 ID x 1.5 OD

$6.99

$

In Stock, Qty 12

0

32

White Outdoor 731-0374

Flange Bearing
(Superseded to 931-0374)

$7.99

$

In Stock, Qty 20+

0

33

White Outdoor 746-3088

Cable Latch

$

$

Not available

34

White Outdoor 603-0363

Castor Wheel Bracket Assembly
(Superseded to 603-0363A)

Variations

White Outdoor 603-0363-0498

Caster Wheel Bracket - OLD CUB YELLOW (0498)

$121.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0363-0637

Caster Wheel Bracket - POWDER BLACK (0637)

$121.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0363-0648

Caster Wheel Bracket - TECH GRAY (0648)

$121.99

$

Usually ships in 3-6 days

0

$121.99

$

Usually ships in 3-6 days

0

35

White Outdoor 710-0506

Hex Cap Screw 1/2-20 x 5.50

$11.99

$

In Stock, Qty 13

0

36

White Outdoor 712-0239

Hex Lock Nut 1/2-20

$6.49

$

In Stock, Qty 20+

0

37

White Outdoor 750-0456

Spacer .790 ID x .347 Lg.

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 750-3197

Wheel Spacer
(Superseded to 750-3197A)

$22.99

$

In Stock, Qty 10

0

39

White Outdoor 634-3163

Wheel Assembly

$240.99

$

In Stock, only 2 left!

0

40

White Outdoor 738-1014

Shoulder Bolt

$4.49

$

In Stock, only 1 left!

0

41

White Outdoor 723-0476

Retainer Strap Assembly

$35.99

$

In Stock, only 2 left!

0

42

White Outdoor 16606

Retainer Clip
(Superseded to 96606)

$7.99

$

In Stock, only 3 left!

0
