590-542-195 - MTD Pro Grass Catcher Catcher Parts Diagram

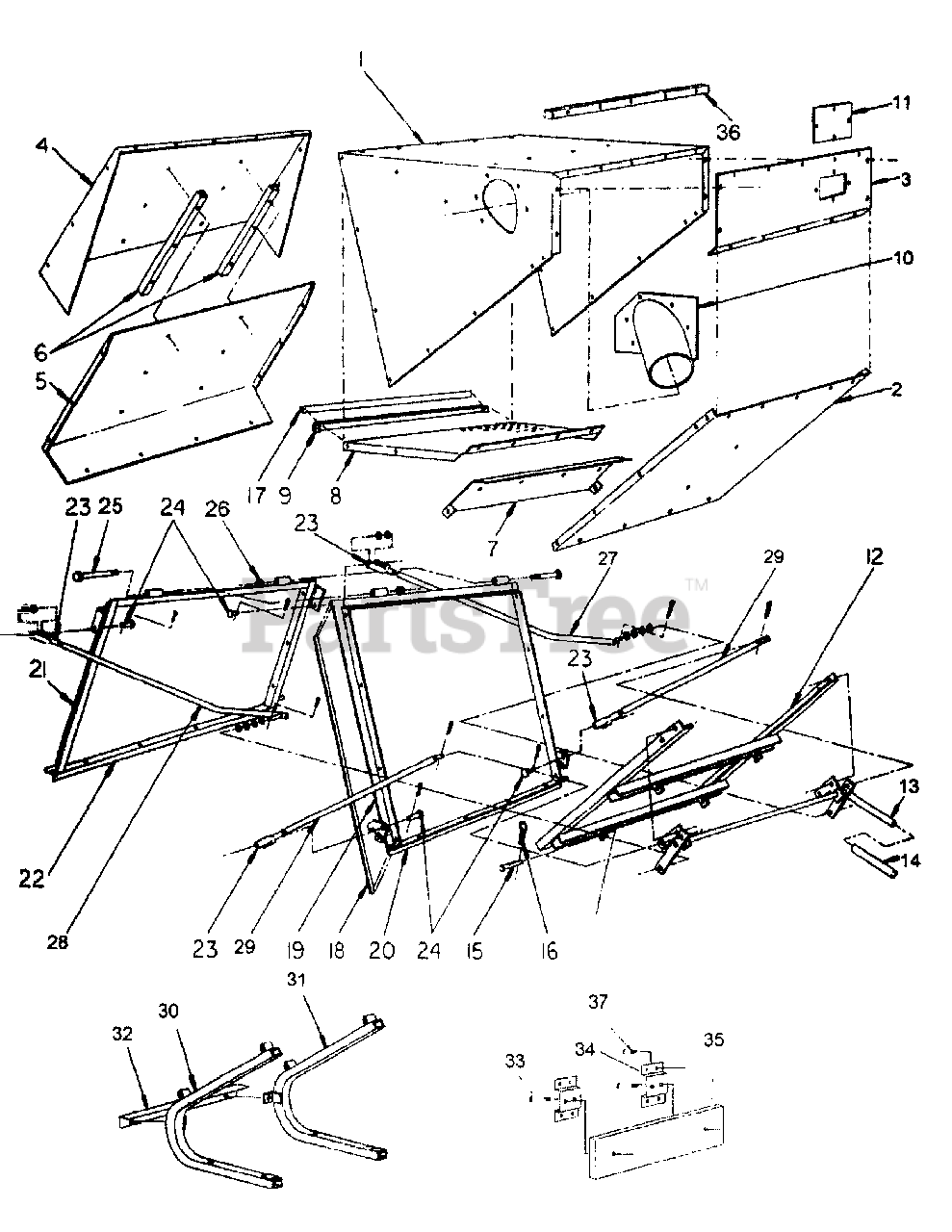

Pro Grass Catcher

Catcher Parts Diagram

  • Title

1

MTD TS-151175

CATCHER BODY

$

$

Not available

2

MTD TS-151232

CATCH BOX BOTTOM

$

$

Not available

3

MTD TS-151358

FRONT

$

$

Not available

4

MTD TS-151419

OUTER DOOR SHELL

$

$

Not available

5

MTD TS-151591

INNER DOOR SHELL

$

$

Not available

6

MTD TS-152068

DOOR VENT TUBING

$

$

Not available

7

MTD TS-151768

INTAKE DEFLECTOR

$

$

Not available

8

MTD TS-151970

SCREEN

$

$

Not available

9

MTD TS-158940

REAR SCREEN SUPPORT

$

$

Not available

10

MTD TS-151340

6" INTAKE TUBE

$

$

Not available

11

MTD TS-150202

5" X 6.5" ACRYLIC

$

$

Not available

12

MTD TS-153450

CATCHER FRAME BASE

$

$

Not available

13

MTD TS-152790

LEVER DUMP ASSEMBLY

$

$

Not available

14

MTD TS-150875

5" VINYL GRIP

$

$

Not available

15

MTD TS-150890

1/2" X 4" ADJUSTABLE CLEVIS

$6.99

$

In Stock, only 2 left!

0

16

MTD TS-150994

.091 X 2.0 HAIR SPRING COT

$

$

Not available

17

MTD TS-150755

RUBBER SEALS

$

$

Not available

18

MTD TS-150783

FOAM SEAL

$

$

Not available

19

MTD TS-153290

CATCHER OPENING FRAME

$

$

Not available

20

MTD TS-153050

BOTTOM CATCHER OPENING FRAME

$

$

Not available

21

MTD TS-153330

CATCHER DOOR FRAME

$

$

Not available

22

MTD TS-153010

BOTTOM DOOR FRAME

Note: NLA

$

$

Not available

23

MTD TS-150803

3/8" -24 ADJUSTABLE YOKE END

$

$

Not available

24

MTD TS-150810

3/8" X 1" CLEVIS PIN

$

$

Not available

25

MTD TS-150005

1/2" X 5" HEX HEAD BOLT

$

$

Not available

26

MTD TS-150012

1/2" NYLOCK NUT

$

$

Not available

27

MTD TS-156713

LEFT HINGE ROD

$

$

Not available

28

MTD TS-156703

RIGHT HINGE ROD

$

$

Not available

29

MTD TS-152990

LATCH ROD

$

$

Not available

30

MTD TS-154365

RIGHT CATCHER MOUNTING FRAME

$

$

Not available

31

MTD TS-154370

LEFT CATCHER MOUNTING FRAME

$

$

Not available

32

MTD TS-154310

CATCHER MOUNTING FRAME BUMPER

Note: NLA

$

$

Not available

33

MTD n/a

3/8" X 4-1/2" X 16 HEX HEAD BOLT

Note: purchase locally

$

$

Currently unavailable

34

MTD TS-159511

WEIGHT MOUNTING BRACKET

$

$

Not available

35

MTD TS-285298

WEIGHT BAR

$

$

Not available

36

MTD TS-159080

FRONT BUMPER

$

$

Not available

37

MTD n/a

5/16"-18 X 1" CARRIAGE BOLT

Note: purchase locally

$

$

Currently unavailable
