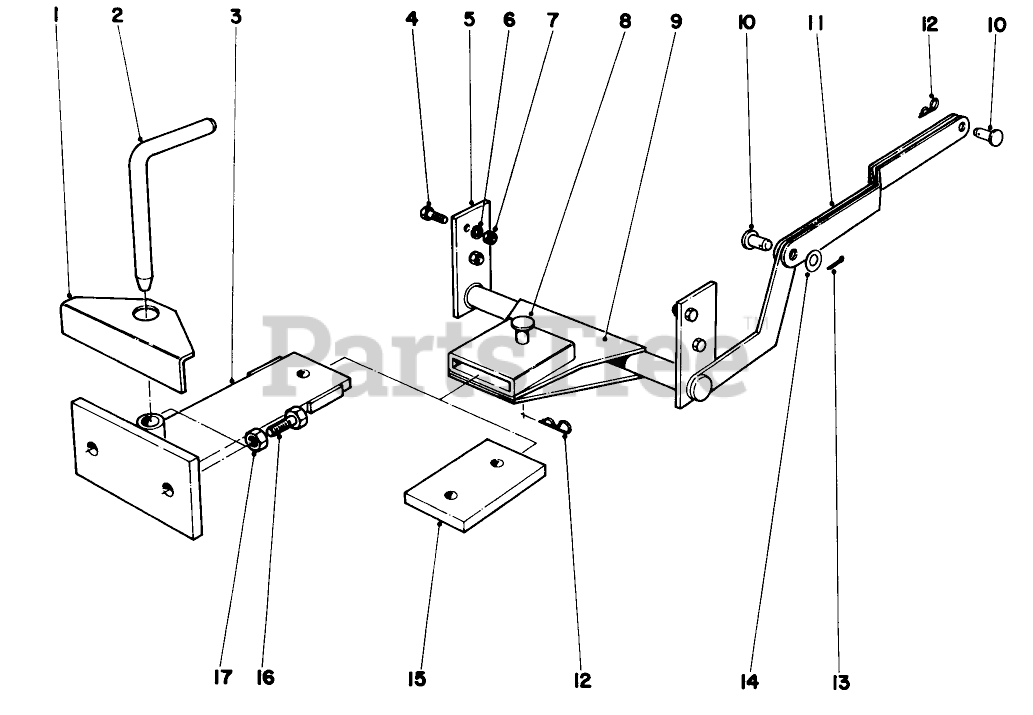

59002 - Toro Hitch Kit (SN: 000000001 - 000999999) (1970) HITCH ATTACHMENT Parts Diagram

Hitch Kit

HITCH ATTACHMENT Parts Diagram

  • Title

1

Toro 7-2172

Plate

$

$

Currently unavailable

2

Toro 7-2171

Pin

$

$

Currently unavailable

3

Toro 7-2170

Hitch Adjustment Assembly

$

$

Currently unavailable

4

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 7-2053

Plate

$

$

Currently unavailable

6

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

7

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 14

0

8

Toro 7-2035

Pin
(Superseded to 283-8)

$1.49

$

In Stock, Qty 5

0

9

Toro 7-2054

Hitch Assembly

$

$

Currently unavailable

10

Toro 7-0511

Pin
(Superseded to 283-2)

$13.99

$

In Stock, only 3 left!

0

11

Toro 7-1736

Strap

$

$

Currently unavailable

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

14

Toro 7-0233

Washer

$

$

Currently unavailable

15

Toro 7-1815

Adapter

$

$

Currently unavailable

16

Toro 7-2173

Bolt, Special

$

$

Currently unavailable

17

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, only 2 left!

0

Toro 7-2168

Hitch Adapter Assy. (Incl .Ref. 1-5)

$

$

Currently unavailable
