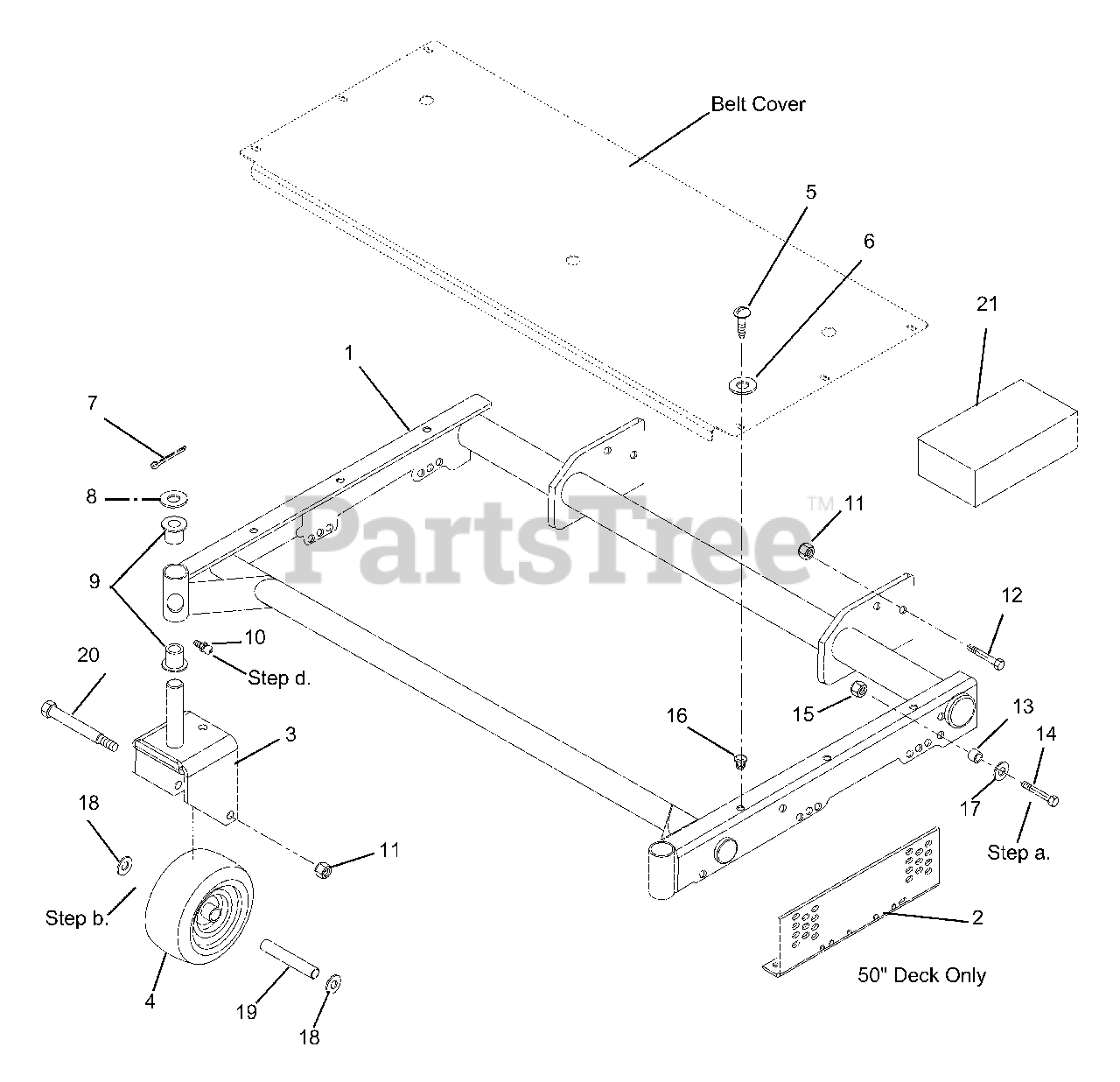

590026 - Gravely Pro-Master 320 50" Deck Kit Mower Frame Kit PN 59002500 & 59002600 Parts Diagram

Pro-Master 320 50" Deck Kit

Mower Frame Kit PN 59002500 & 59002600 Parts Diagram

  • Title

1

Gravely 09094153

WELDMENT, FRAME 50"

Note: (59002600)

$387.99

$

Usually ships in 4-12 days

0

Gravely 09093753

WELDMENT, FRAME 60"

Note: (59002500)

$1162.99

$

Usually ships in 4-12 days

0

2

Gravely 09093800

BRACKET, MOW.SIDE SUPP. RH

Note: (59002600)

$11.99

$

Usually ships in 4-12 days

0

Gravely 09093900

BRACKET, MOW.SIDE SUPP. LH

Note: (59002600)

$11.99

$

Usually ships in 4-12 days

0

3

Gravely 09094053

WELDMENT, CASTER FORK

$252.99

$

Usually ships in 4-12 days

0

4

Gravely 07147200

WHEEL ASSEMBLY 9.00 X 3.50
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

5

Gravely 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

7

Gravely 06712800

@PIN-CTR .18X1.50 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

8

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$4.99

$

In Stock, only 4 left!

0

9

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$10.99

$

In Stock, Qty 20+

0

10

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

11

Gravely 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 08814100

BUSHING .391 X .626 X .670

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

15

Gravely 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

16

Gravely 07538100

GRMT,PLASTIC

$1.49

$

In Stock, Qty 11

0

17

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 3 left!

0

18

Gravely 06413300

WSHR-HDND-THRST .760X1.25X.094

$5.99

$

In Stock, only 2 left!

0

19

Gravely 09081500

BEARING .750 X .532 X 3.97

$39.99

$

Usually ships in 4-12 days

0

20

Gravely 05964100

@BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 58903700

KIT, PM300 TRACTOR IDLER

$

$

Not available

Gravely 59002500

KIT, 60" MOWER FRAME

$

$

Not available

Gravely 59002600

KIT, 50" MOWER FRAME

$

$

Not available
