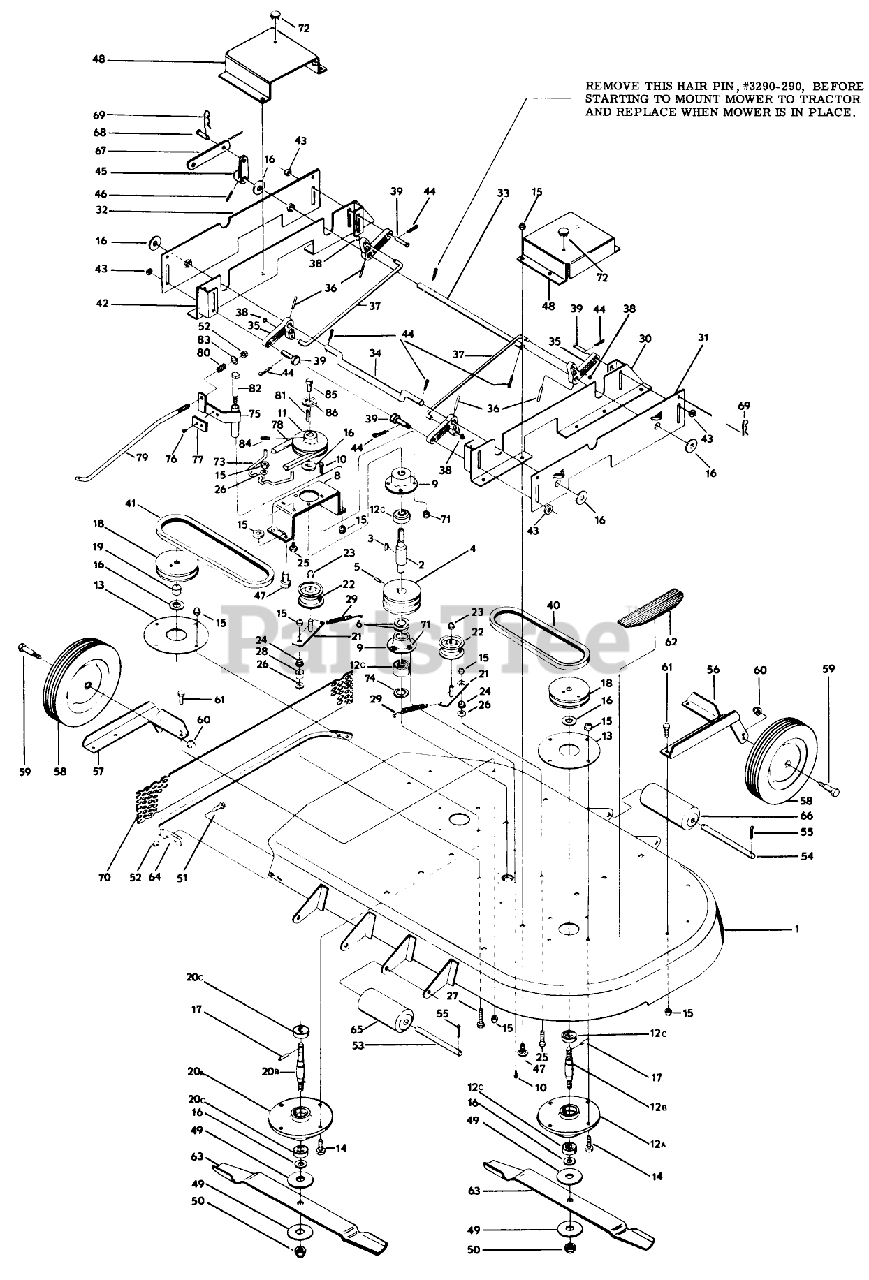

59004 - Toro 42" Side-Discharge Mower Deck (SN: 008000001 - 008999999) (1968) Mower Attachment Parts List Parts Diagram

42" Side-Discharge Mower Deck

Mower Attachment Parts List Parts Diagram

  • Title

1

Toro 7-0574

DISCONTINUED OBS

$

$

Not available

2

Toro 7-0633

BLADE DRIVE SHAFT

$

$

Not available

3

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, only 2 left!

0

4

Toro 7-0634

DISCONTINUED

$

$

Not available

5

Toro 3246-5

Set Screw

$

$

Currently unavailable

6

Toro 7-0126

DISCONTINUED

$

$

Not available

7

Toro 251-5

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

8

Toro 7-0636

Support

$

$

Currently unavailable

9

Toro 7-0640

Housing

$

$

Currently unavailable

10

Toro 32140-55(s

Sems Unit

$

$

Currently unavailable

11

Toro 7-0627

Pulley

$

$

Currently unavailable

12

Toro 7-0575

DISCONTINUED XREF

$

$

Not available

12A

Toro 7-0287

MOWER SPINDLE HOUSING

$

$

Not available

12B

Toro 7-0597

DISCONTINUED

$

$

Not available

12C

Toro 251-5

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

13

Toro 7-0252

DISCONTINUED

$

$

Not available

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 32152-1(s

Nut

$

$

Currently unavailable

16

Toro 7-0131

See Supercession: 3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 8

0

17

Toro 32121-74(s

Pin

$

$

Currently unavailable

18

Toro 7-0578

Pulley

$

$

Currently unavailable

19

Toro 7-0577

DISCONTINUED

$

$

Not available

20

Toro 7-0576

DISCONTINUED

$

$

Not available

20A

Toro 7-0287

MOWER SPINDLE HOUSING

$

$

Not available

20B

Toro 7-0598

DISCONTINUED

$

$

Not available

20C

Toro 251-5

See Supercession: 38-7820
(Superseded to 38-7820)

$15.99

$

In Stock, Qty 20+

0

21

Toro 7-3377

Idler Arm

$

$

Currently unavailable

22

Toro 7-0136

See Supercession: 3-4244
(Superseded to 3-4244)

$28.99

$

In Stock, only 2 left!

0

23

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

24

Toro 7-0083

Bushing

$

$

Currently unavailable

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

27

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 15

0

28

Toro 7-0581

Spacer

$

$

Currently unavailable

29

Toro 7-0582

IDLER ARM SPRING

$

$

Not available

30

Toro 7-0584

DISCONTINUED

$

$

Not available

31

Toro 7-0607

DISCONTINUED

$

$

Not available

32

Toro 7-0606

DISCONTINUED

$

$

Not available

33

Toro 7-0611

Rear Pivot Shaft

$

$

Currently unavailable

34

Toro 7-0610

DISCONTINUED

$

$

Not available

35

Toro 7-0265

DISCONTINUED

$

$

Not available

36

Toro 32121-17(s

Roll Pin

$

$

Currently unavailable

37

Toro 7-0608

DISCONTINUED

$

$

Not available

38

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 3 left!

0

39

Toro 7-0586

DISCONTINUED

$

$

Not available

40

Toro 7-0354

DISCONTINUED

$

$

Not available

41

Toro 7-0073

See Supercession: 28-8630
(Superseded to 28-8630)

$25.99

$

Usually ships in 3-6 days

0

42

Toro 7-0583

DISCONTINUED

$

$

Not available

43

Toro 7-0052

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

44

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 7

0

45

Toro 7-0612

Lever

$

$

Currently unavailable

46

Toro 32121-75(s

Pin

$

$

Currently unavailable

47

Toro 7-0250

See Supercession: 26-0430
(Superseded to 26-0430)

$

$

Not available

48

Toro 7-0622

Cover

$

$

Currently unavailable

49

Toro 7-0253

WASHER

$

$

Not available

50

Toro 32152-6S

Nut

$

$

Currently unavailable

51

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

52

Toro 32152-4S

Nut

$

$

Currently unavailable

53

Toro 7-0590

DISCONTINUED

$

$

Not available

54

Toro 7-0277

DISCONTINUED

$

$

Not available

55

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

56

Toro 7-0593

Bracket

$

$

Currently unavailable

57

Toro 7-0592

Bracket

$

$

Currently unavailable

58

Toro 241-87(s

Wheel

$

$

Currently unavailable

59

Toro 7-0262

Axle

$

$

Currently unavailable

60

Toro 32152-2S

Nut

$

$

Currently unavailable

61

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 5

0

62

Toro 7-0623

Foot Pad

$

$

Currently unavailable

63

Toro 7-0587

Blade

$

$

Currently unavailable

64

Toro 7-0588

DISCONTINUED OBS

$

$

Not available

65

Toro 7-0624

DISCONTINUED

$

$

Not available

66

Toro 7-0276

Roller

$

$

Currently unavailable

67

Toro 7-0591

Adjusting Link

$

$

Currently unavailable

68

Toro 7-0511

See Supercession: 283-2
(Superseded to 283-2)

$14.99

$

In Stock, only 2 left!

0

69

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

70

Toro 7-0573

Mulcher

$

$

Currently unavailable

71

Toro 3290-291(s

Self Clinching Nut

$

$

Currently unavailable

72

Toro 2410-23(s

Button Plug

$

$

Currently unavailable

73

Toro 7-3370

Belt Guide

$

$

Currently unavailable

74

Toro 7-0626

DISCONTINUED

$

$

Not available

75

Toro 7-0642

a. Bracket

$

$

Currently unavailable

76

Toro 3290-287(s

Rivet

$

$

Currently unavailable

77

Toro 7-0643

DISCONTINUED

$

$

Not available

78

Toro 7-0630

V-BELT

$

$

Not available

79

Toro 7-0631

Brake Rod

$

$

Currently unavailable

80

Toro 7-0514

DISCONTINUED

$

$

Not available

81

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 14

0

82

Toro 7-0647

Shoulder Bolt

$

$

Currently unavailable

83

Toro 7-0533

Washer

$

$

Currently unavailable

84

Toro 3242-13(s

Set Screw

$

$

Currently unavailable

85

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

86

Toro 7-0553

Washer

$

$

Currently unavailable
