5900515 - Simplicity Pacer 32" Walk-Behind Mower Electrical Group (S/N: 2013316440 & Above) Parts Diagram

Pacer 32" Walk-Behind Mower

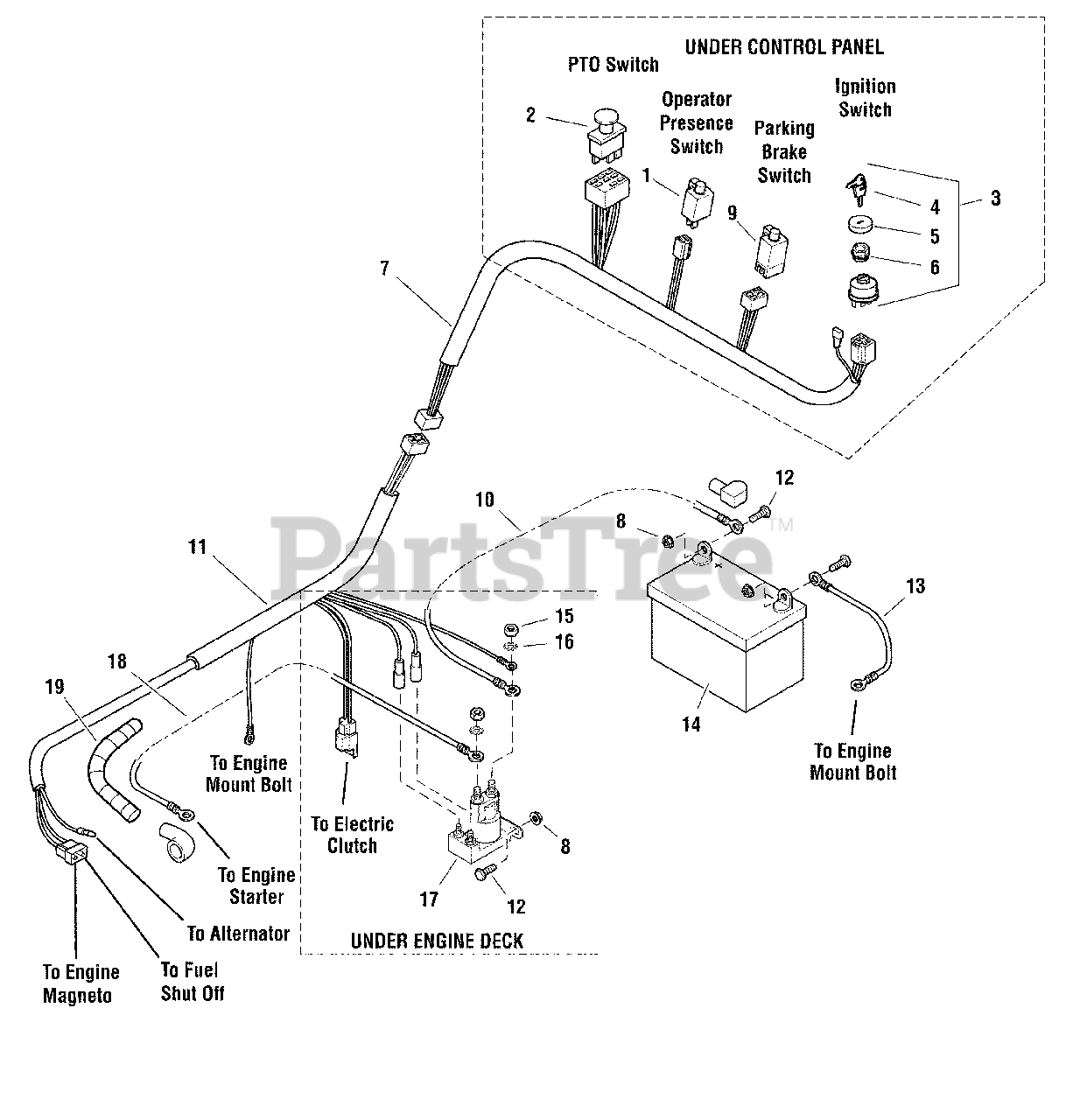

Electrical Group (S/N: 2013316440 & Above) Parts Diagram

  • Title

1

Simplicity 5021769SM

SWITCH, PLUNGER NC

Note: (OPERATOR PRESENCE)

$14.99

$

In Stock, only 1 left!

0

2

Simplicity 5022180SM

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

Note: (PTO SWITCH)

$33.99

$

In Stock, Qty 20+

0

3

Simplicity 5020927SM

SWITCH, IGNITION, 6 POST
(Superseded to 1686734SM)

$32.99

$

In Stock, Qty 18

0

4

Simplicity 5022789SM

KEY, IGNITION, MOLDED SET

$

$

Not available

5

Simplicity 5022790SM

COVER, PLASTIC SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 5022791SM

NUT, PLASTIC

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5404588SM

WIRE HARNESS, HANDLE BAR
(Superseded to 5404588YP)

$153.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025126SM

NUT, 1/4-20 HEX SERRATED FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

Note: (PARKING BRAKE)

$17.99

$

In Stock, Qty 10

0

10

Simplicity 5021405SM

BATTERY CABLE, POSITIVE, 22"

Note: (BATTERY TO SOLENOID)

$18.99

$

Usually ships in 2-12 days

0

11

Simplicity 5408330SM

WIRE HARNESS, ENGINE DECK, BRIGGS, PACER
(Superseded to 5408330YP)

$84.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4

$3.99

$

In Stock, Qty 13

0

13

Simplicity 5103124SM

BATTERY CABLE, NEGATIVE, 40" LONG
(Superseded to 5103124YP)

$24.99

$

Usually ships in 2-12 days

0

14

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

15

Simplicity 5023216SM

NUT, HEX JAM 5/16-24

Note: (SV)

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 5023217SM

WASHER, LIGHT LOCK, 5/16

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

Usually ships in 2-12 days

0

18

Simplicity 5103125SM

BATTERY CABLE, POSITIVE, 35" LONG
(Superseded to 5103125YP)

$24.99

$

Usually ships in 2-12 days

0

19

Simplicity 5050927X30SM

WIRE LOOM, 3/8 ID X 30 IN
(Superseded to 5050927X30YP)

$4.99

$

Usually ships in 2-12 days

0
