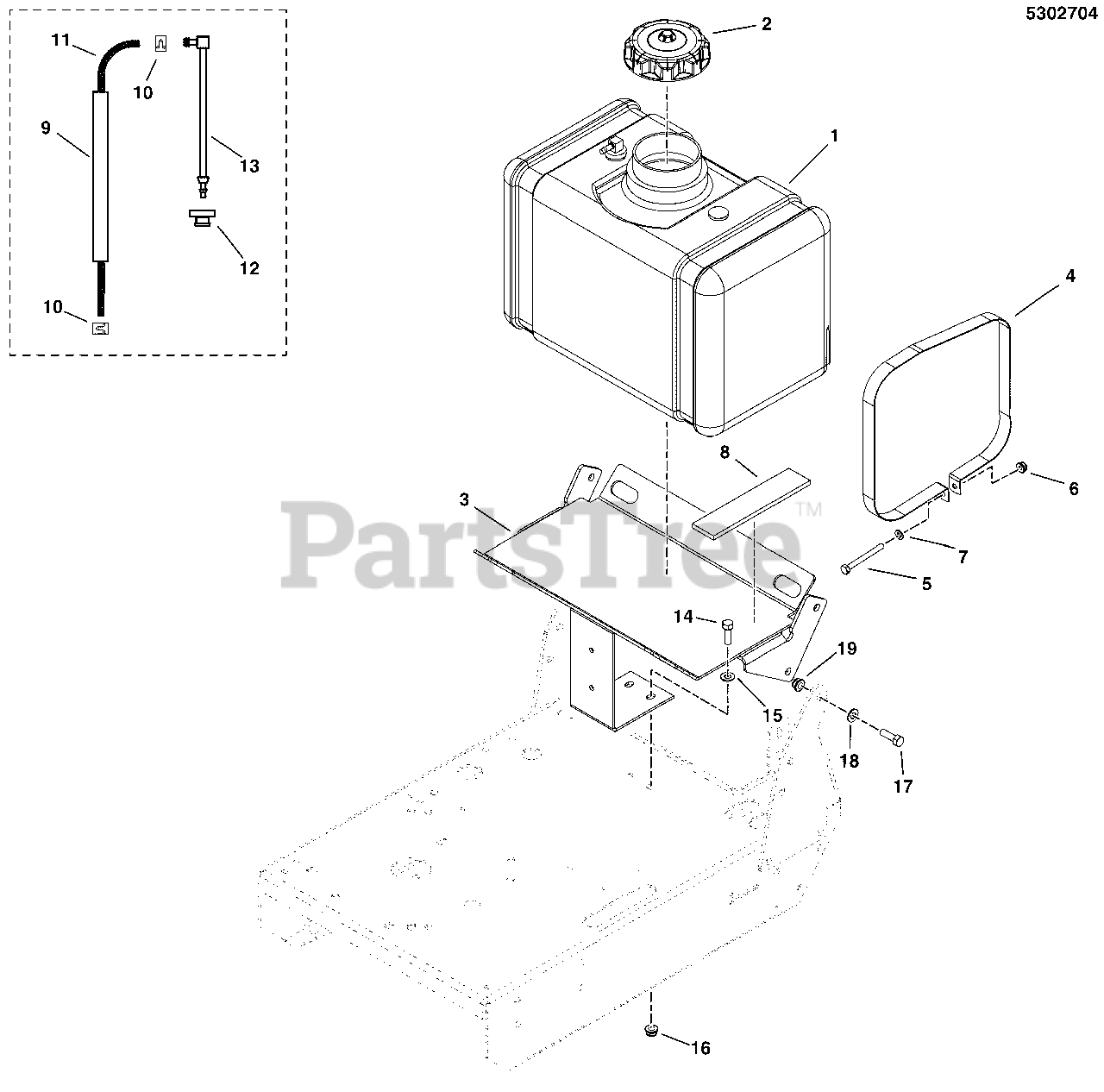

5900515 - Simplicity Pacer 32" Walk-Behind Mower Fuel Tank & Mount Group - EPA Parts Diagram

Pacer 32" Walk-Behind Mower

Fuel Tank & Mount Group - EPA Parts Diagram

  • Title

1

Simplicity 5102833SM

TANK, 5 GAL, W DROP TUBE/VENT
(Superseded to 5102833YP)

$420.99

$

Usually ships in 2-12 days

0

2

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$41.99

$

In Stock, only 1 left!

0

3

Simplicity 5407443CSM

WELD, TANK MOUNT, HYDROCUT - ORG
(Superseded to 5407443CYP)

$211.99

$

Usually ships in 2-12 days

0

4

Simplicity 5403445ASM

STRAP, FUEL TANK - SNP PRO DDS - BLK
(Superseded to 5403445AYP)

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025567X20SM

BOLT, HEX, 1/4-20 X 2-1/2, TFL, GD5, CZ
(Superseded to 5025567X20YP)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5100810SM

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

$9.49

$

Usually ships in 2-12 days

0

9

Simplicity 5050833X14SM

WIRE LOOM, 1/2 ID X 14 IN
(Superseded to 5050833X14YP)

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 5020835SM

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 5050831X20SM

HOSE, 1/4" FUEL, 20.00"
(Superseded to 5050831X20YP)

$8.49

$

Usually ships in 2-12 days

0

12

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

Note: (SV)

$7.99

$

In Stock, Qty 20+

0

13

Simplicity 5101261SM

PICKUP TUBE ASM, FUEL TANK, 8.0"
(Superseded to 5101261YP)

Note: (SV)

$38.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

15

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

16

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

17

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$4.49

$

In Stock, only 4 left!

0

18

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 17

0

19

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0
