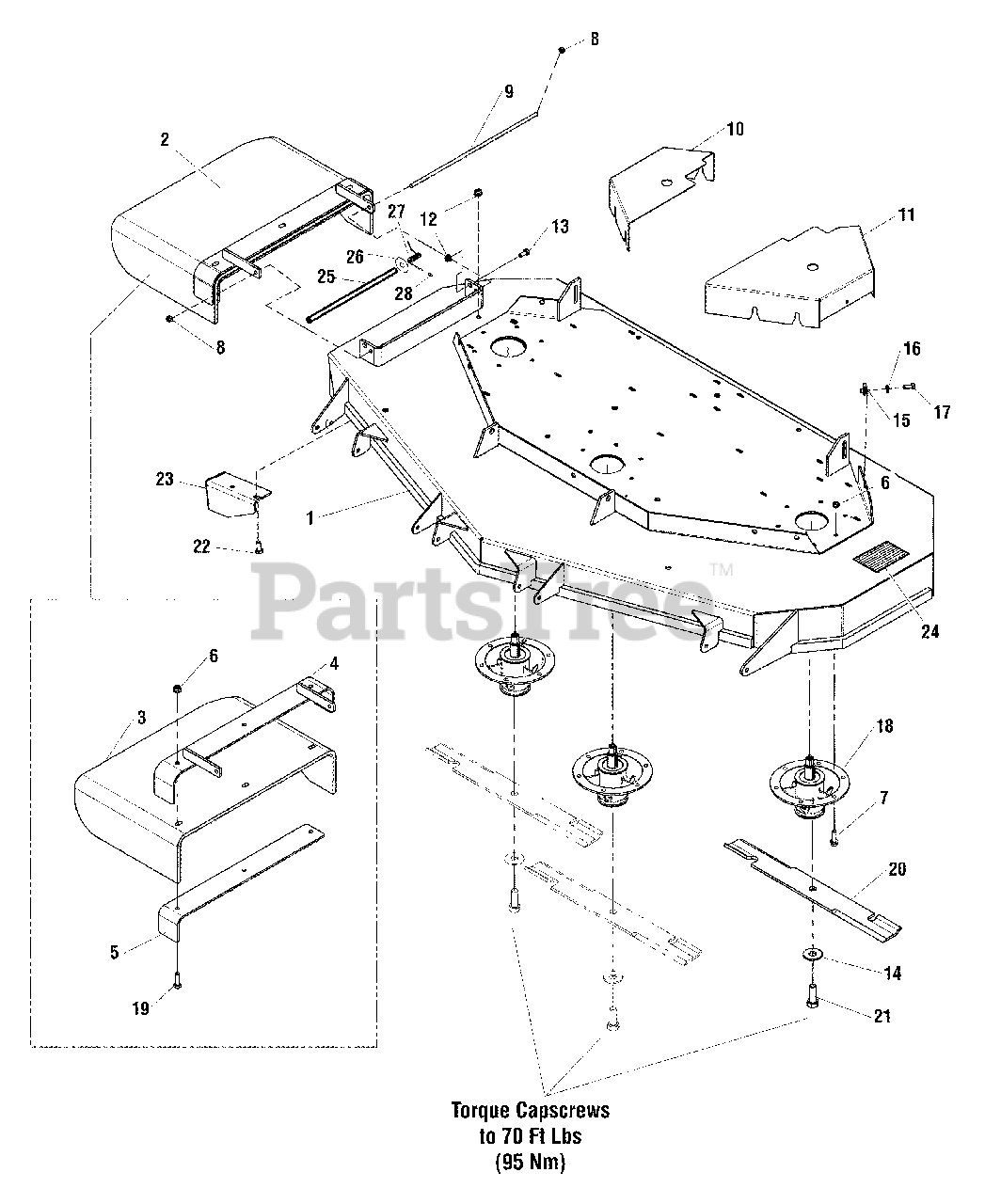

5900763 - Simplicity Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades (S/N: 2012617339 & Above) Parts Diagram

Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton

61" Mower Deck - Housing, Covers, Spindles & Blades (S/N: 2012617339 & Above) Parts Diagram

  • Title

1

Simplicity 5600133SM

DECK SHELL W/DECALS, 61" SIDE DISCHARGE

Note: (Includes Safety Decals)

$3141.99

$

Usually ships in 2-12 days

0

2

Simplicity 5061288CSM

CHUTE ASSEMBLY, 61"
(Superseded to 5600087SM)

Note: (Includes Ref No. 3 - 7)

$

$

Not available

3

Simplicity 5402403

CHUTE, DISCHARGE, RUBBER, 61/72"
(Superseded to 5402403SM)

$197.99

$

Usually ships in 2-12 days

0

4

Simplicity 5061293CSM

WELD, FRAME, CHUTE, 61

$

$

Not available

5

Simplicity 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$46.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4" GD5

$4.49

$

In Stock, only 4 left!

0

8

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 17

0

9

Simplicity 5061300SM

ROD MOUNT, CHUTE 61"

$14.99

$

In Stock, only 2 left!

0

10

Simplicity 5400791CSM

GUARD, 61", RH

$

$

Not available

11

Simplicity 5400792CSM

GUARD, 61" - LH
(Superseded to 5405484CYP)

$79.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, Qty 9

0

14

Simplicity 5025477SM

WASHER, 5/8" GRADE 8, YZ

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 5022308SM

BODY CLIP, 5/16-18 X 1/2" DEEP

$5.99

$

In Stock, only 2 left!

0

16

Simplicity 5025292SM

WASHER, 5/16" GD.9 FLAT

$4.49

$

In Stock, Qty 11

0

17

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GD5

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 5100993SM

ASSM, SPINDLE, CAST IRON

$179.99

$

In Stock, only 2 left!

0

19

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1 1/2"
(Superseded to 703406)

$4.99

$

In Stock, Qty 10

0

20

Simplicity 5020842SM

BLADE, 21"
(Superseded to 5020842ASM)

$29.99

$

In Stock, Qty 13

0

21

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$12.99

$

Usually ships in 2-12 days

0

24

Simplicity 5101005SM

SAFETY WALK, 9.75 X 6.00

$16.99

$

In Stock, only 2 left!

0

25

Simplicity 5050086X8SM

TORSION SPRING SPACER

$9.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025164SM

WASHER, 5/16 FENDER

$4.49

$

In Stock, only 2 left!

0

27

Simplicity 5023385SM

TORSION SPRING

$8.99

$

In Stock, only 2 left!

0

28

Simplicity 5023489SM

CAP

$3.99

$

In Stock, only 1 left!

0
