5900764 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

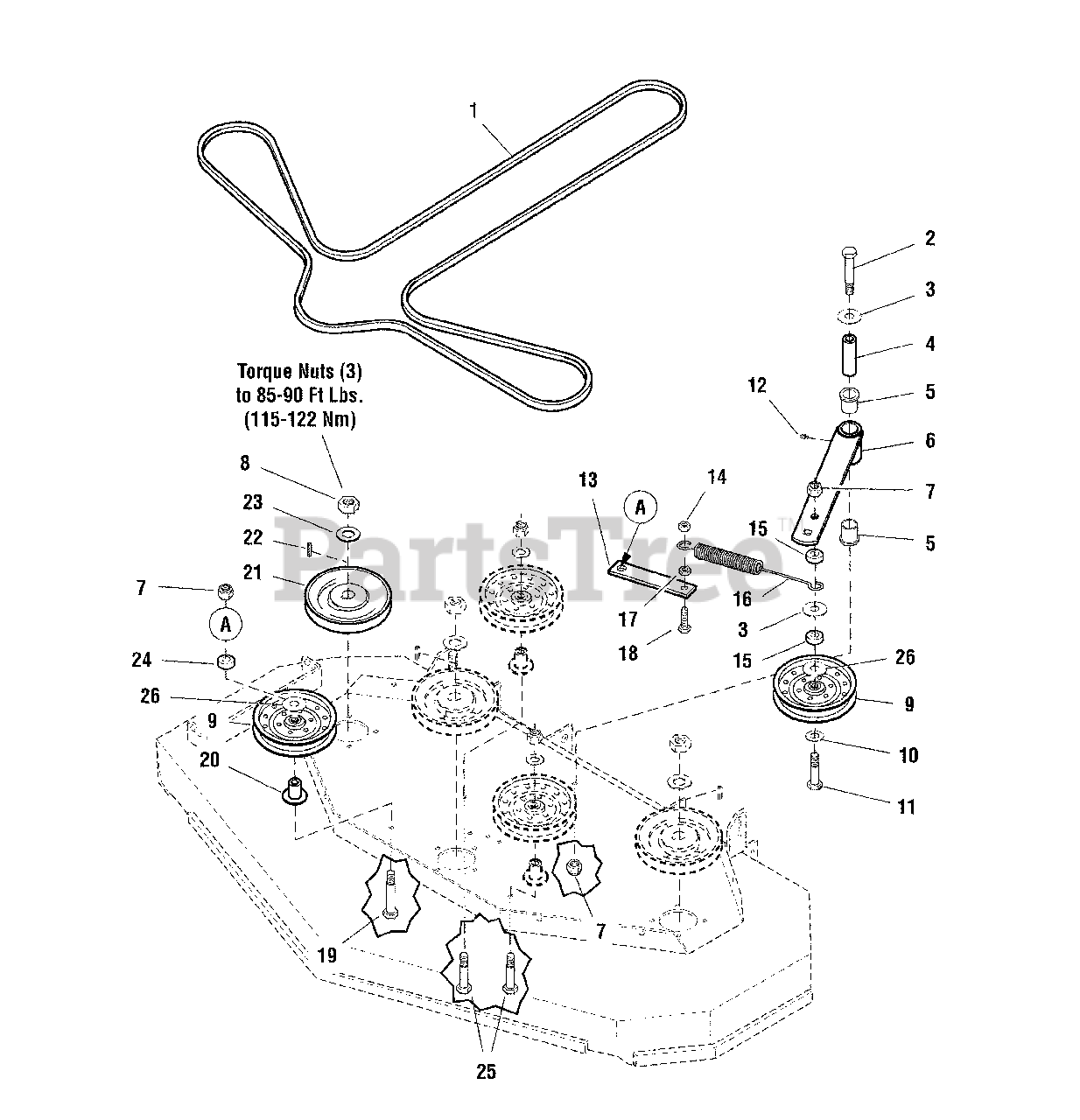

61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

  • Title

1

Simplicity 5103871YP

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC

$139.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025017X36SM

BOLT, 1/2-13 X 4-1/2 GD5

$6.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025150SM

WASHER, 1/2 USS

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 5045022SM

SPACER, .52 X 1.00 X 3.50

$24.99

$

Usually ships in 2-12 days

0

5

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 7

0

6

Simplicity 5407343YP

ASSM, IDLER ARM - BLK - 5407039A (SV)

Note: (Includes bushings and grease fittings.)

$

$

Not available

7

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

8

Simplicity 5025405SM

NUT, 3/4-16 HEX

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

In Stock, Qty 6

0

10

Simplicity 5025440SM

WASHER, 1/2 GD9 YZ

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5

$5.99

$

In Stock, only 2 left!

0

12

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5400846CSM

MOUNT, IDLER SPRING - ORG

$

$

Not available

14

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5044609SM

SPACER, .52 X 1.00 X .38

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 5023340SM

SPRING, EXTENSION, SWIVEL END

$36.99

$

In Stock, only 1 left!

0

17

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, only 3 left!

0

19

Simplicity 5025017X28SM

BOLT, 1/2-13 X 3-1/2 GD5

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 5103430

WELD, MOUNT, IDLER
(Superseded to 5103430YP)

$10.99

$

In Stock, only 1 left!

0

21

Simplicity 5100700SM

PULLEY, 6.5 EOD X 25MM, SPLIT

$74.99

$

In Stock, only 1 left!

0

22

Simplicity 5050407X5SM

KEY, 1/4 SQ. X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025406SM

WASHER, 3/4 BELLEVILLE
(Superseded to 770223)

$4.49

$

In Stock, only 3 left!

0

24

Simplicity 5045023SM

SPACER, .52 X 1.00 X .44

$6.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025017X24SM

BOLT, 1/2-13 X 3 GD5

$5.99

$

In Stock, only 2 left!

0

26

Simplicity 5101103SM

SHIELD, PULLEY BEARING

$10.99

$

Usually ships in 2-12 days

0
