5900766 - Simplicity Pacer 32" Walk-Behind Mower 32" Mower Deck - Frame, Caster & Shield Parts Diagram

Pacer 32" Walk-Behind Mower

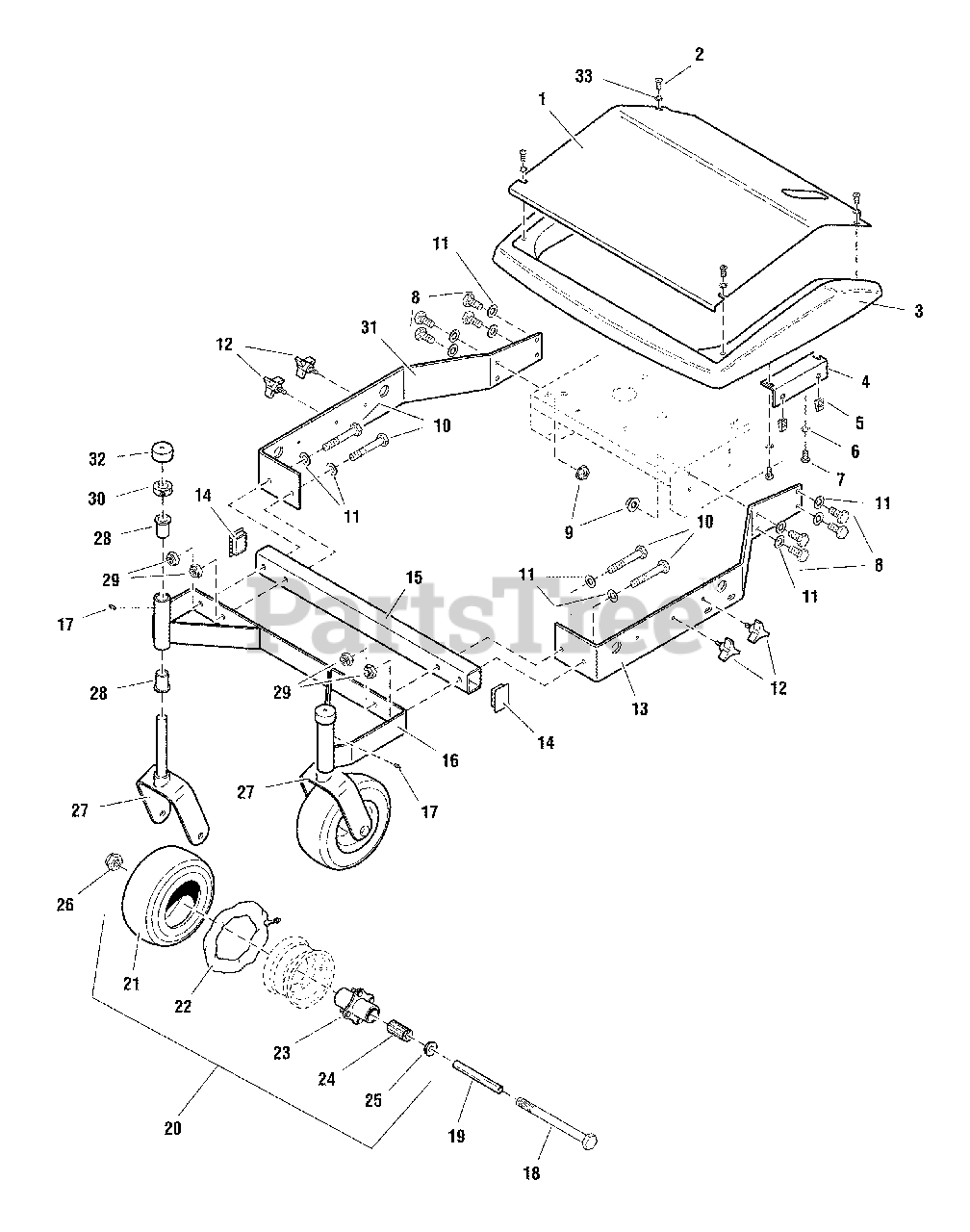

32" Mower Deck - Frame, Caster & Shield Parts Diagram

  • Title

1

Simplicity 5048181CSM

GUARD, INSERT (BRIGGS)

$106.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025299X4SM

SCREW, 1/4-20 X 1/2 ALLEN BH

$4.99

$

In Stock, only 2 left!

0

3

Simplicity 5048150SM

GUARD, MOWER DECK

$151.99

$

Usually ships in 2-12 days

0

4

Simplicity 5048353CSM

BRACKET, GUARD

$

$

Not available

5

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 4 left!

0

6

Simplicity 5025169SM

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 16

0

7

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 3 left!

0

9

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, Qty 17

0

10

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2 GD5 YZ
(Superseded to 84007037)

$2.99

$

In Stock, only 1 left!

0

11

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 16

0

12

Simplicity 5022319SM

KNOB, PLASTIC, 5/16-18 X 3/4

$8.49

$

In Stock, only 3 left!

0

13

Simplicity 5047648CSM

RAIL, DECK FRAME - LEFT

$

$

Not available

14

Simplicity 5022098SM

CAP, 1-1/2 X 2 X 11GA, PLASTIC

$3.99

$

In Stock, Qty 12

0

15

Simplicity 5048194CSM

TUBE, CROSS

$

$

Not available

16

Simplicity 5047677CSM

WELD, CASTER MOUNT

$186.99

$

Usually ships in 2-12 days

0

17

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 5025017X44SM

BOLT, 1/2-13 X 5-1/2 GD5 YZ

$8.49

$

In Stock, only 2 left!

0

19

Simplicity 5041657SM

AXLE, CASTER WHEEL

$14.99

$

In Stock, only 1 left!

0

20

Simplicity 5021181SSM

TIRE ASSM, 9 X 3.5 X 4, SILVER

Note: (Includes Ref No. 21-25)

$103.99

$

In Stock, only 4 left!

0

21

Simplicity 5021181X1SM

TIRE, FRONT, 9 X 3.5 X 4, TIRE ONLY

$52.99

$

In Stock, only 1 left!

0

22

Simplicity 5021181X2SM

9X350-4 TUBE ONLY

$25.99

$

Usually ships in 2-12 days

0

23

Simplicity 5021181SX3SM

HUB, 4 Bolt, Silver

Note: (Includes Ref No. 24 & 25)

$59.99

$

Usually ships in 2-12 days

0

24

Simplicity 5021182SM

BEARING, ROLLER

Note: (1 per Tire)

$19.99

$

Usually ships in 2-12 days

0

25

Simplicity 5021043SM

RETAINER, BEARING

Note: (2 per Tire)

$7.49

$

In Stock, Qty 11

0

26

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 7

0

27

Simplicity 5048172CSM

WELD, CASTER YOKE

$40.99

$

Usually ships in 2-12 days

0

28

Simplicity 5020823SM

BUSHING, FLANGE, 3/4 X 1+69878956

$11.99

$

In Stock, only 4 left!

0

29

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 5010114SM

COLLAR, 3/4 SPLIT

$20.99

$

Usually ships in 2-12 days

0

31

Simplicity 5047649CSM

RAIL, DECK FRAME - RIGHT

$32.99

$

Usually ships in 2-12 days

0

32

Simplicity 5023274SM

CAP,VINYL, 1.375 X 1

$5.99

$

Usually ships in 2-12 days

0

33

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0
