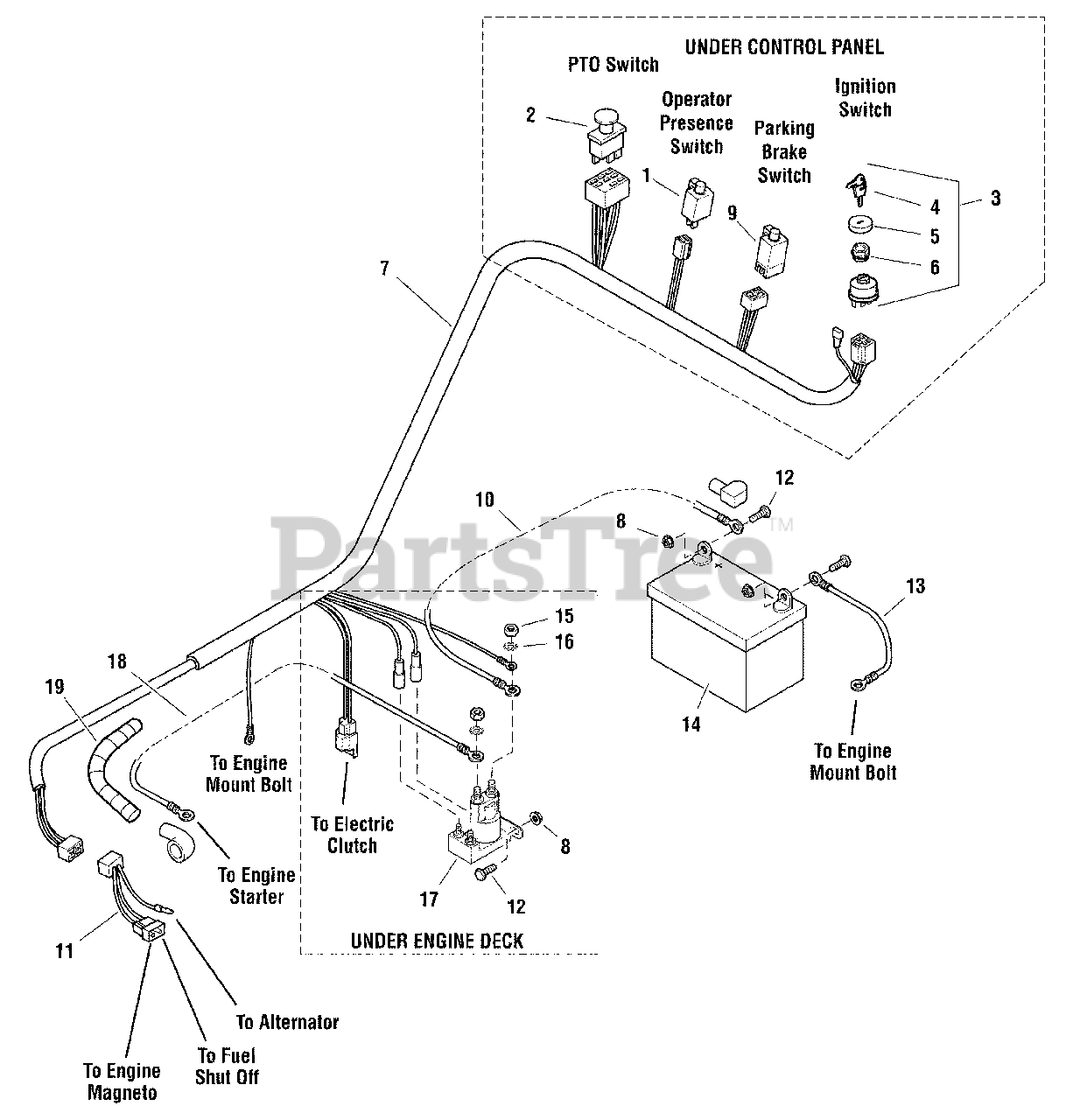

5900766 - Simplicity Pacer 32" Walk-Behind Mower Electrical Group (S/N: 2013136021 - 2013316439) Parts Diagram

Pacer 32" Walk-Behind Mower

Electrical Group (S/N: 2013136021 - 2013316439) Parts Diagram

  • Title

1

Simplicity 5021769SM

SWITCH, PLUNGER NC

Note: (OPERATOR PRESENCE)

$14.99

$

In Stock, only 1 left!

0

2

Simplicity 5022180SM

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

Note: (PTO SWITCH)

$33.99

$

In Stock, Qty 20+

0

3

Simplicity 1737853SM

SWITCH ASMY-IGNITION INDAK NO KEYS
(Superseded to 1737853YP)

$35.99

$

Usually ships in 2-12 days

0

4

Simplicity 1737836SM

KEYS. BLISTER PK KIDS+MWRS DON'T MIX, USA Models Only
(Superseded to 1737836YP)

Note: (USA MODELS ONLY)

$20.99

$

In Stock, only 1 left!

0

5

Simplicity 5022790SM

COVER, PLASTIC SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 5022791SM

NUT, PLASTIC

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5404464SM

WIRE HARNESS, MAIN HYDROCUT/PACER

$

$

Not available

8

Simplicity 5025126SM

NUT, 1/4-20 HEX SERRATED FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

Note: (PARKING BRAKE)

$17.99

$

In Stock, Qty 10

0

10

Simplicity 5021405SM

BATTERY CABLE, POSITIVE, 22"

Note: (BATTERY TO SOLENOID)

$18.99

$

Usually ships in 2-12 days

0

11

Simplicity 5404471SM

WIRE HARNESS, PACER 1732, JUMPER

$

$

Not available

12

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4

$3.99

$

In Stock, Qty 13

0

13

Simplicity 5021406SM

BATTERY CABLE, NEGATIVE, 22"

$16.99

$

Usually ships in 2-12 days

0

14

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

15

Simplicity 5023216SM

NUT, HEX JAM 5/16-24

Note: (SV)

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 5023217SM

WASHER, LIGHT LOCK, 5/16

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

Usually ships in 2-12 days

0

18

Simplicity 5048729SM

BATTERY CABLE, POSITIVE, 35"

$15.99

$

Usually ships in 2-12 days

0

19

Simplicity 5050927X23SM

WIRE LOOM, 3/8" ID X 23 IN LONG

$

$

Not available
