5900766 - Simplicity Pacer 32" Walk-Behind Mower Engine Frame & Handle Bars Group - 32" Models Parts Diagram

Pacer 32" Walk-Behind Mower

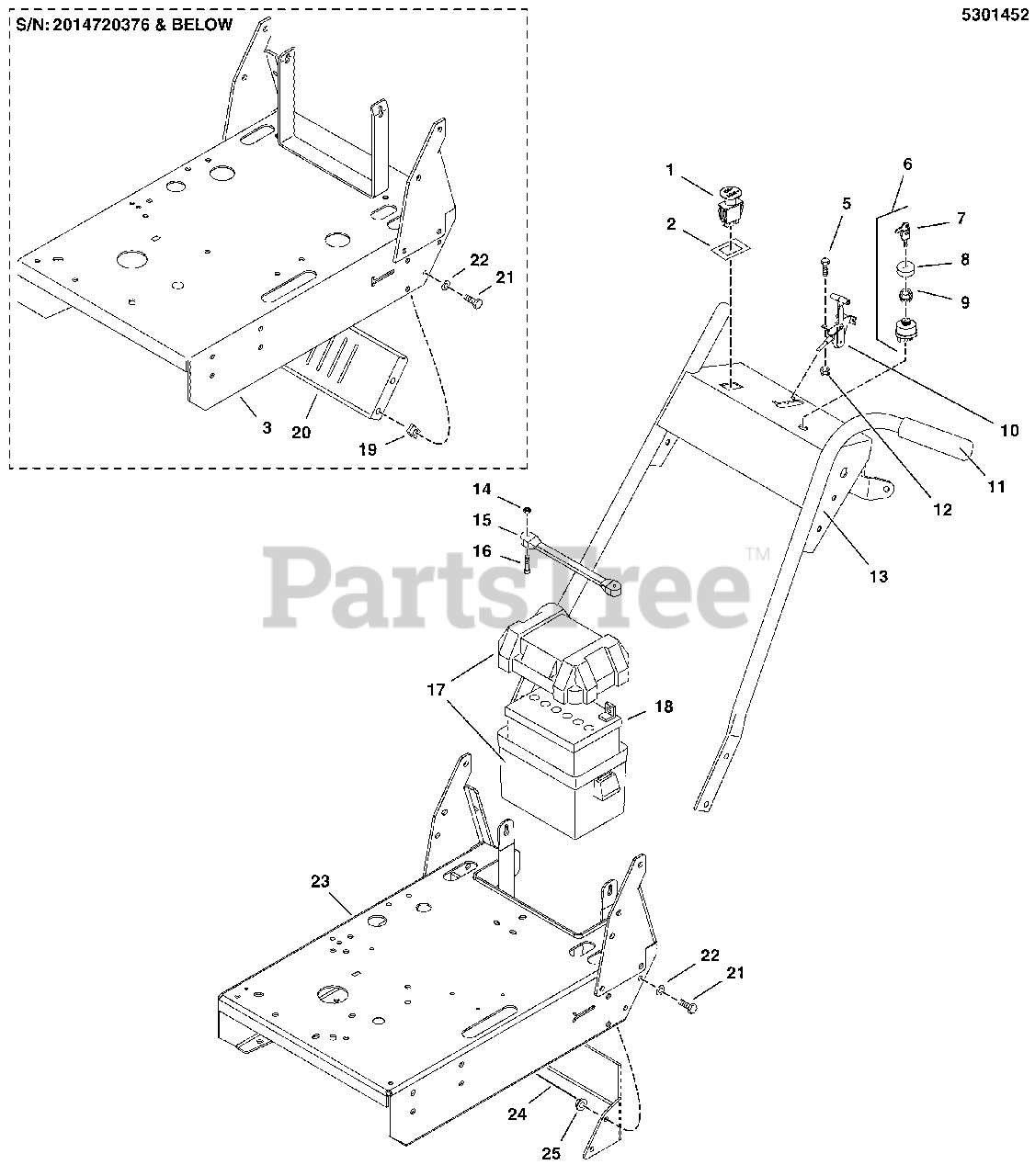

Engine Frame & Handle Bars Group - 32" Models Parts Diagram

  • Title

1

Simplicity 5022180SM

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

2

Simplicity 5022222SM

RING, SWITCH RETAINER

$4.49

$

In Stock, only 2 left!

0

3

Simplicity 5049229CSM

WELD, ENGINE DECK, HC36 - ORG
(Superseded to 5049229CYP)

Note: (S/N: 2014720376 & Below)

$966.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

Note: (For Battery Terminals - Not Shown)

$4.49

$

In Stock, Qty 6

0

5

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

Note: (For Battery Terminals - Not Shown)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 5020927SM

SWITCH, IGNITION, 6 POST
(Superseded to 1686734SM)

$34.99

$

In Stock, Qty 13

0

7

Simplicity 5022789SM

KEY, IGNITION, MOLDED SET

$

$

Not available

8

Simplicity 5022790SM

COVER, PLASTIC SNAP ON
(Superseded to 1704346SM)

$4.99

$

In Stock, Qty 6

0

9

Simplicity 5022791SM

NUT, PLASTIC

$3.49

$

In Stock, only 1 left!

0

10

Simplicity 5047629SM

CABLE, THROTTLE CONTROL, 48"

Note: (S/N: 2014720377 & Above)

$65.99

$

Usually ships in 2-12 days

0

10

Simplicity 5048231SM

CABLE, THROTTLE CONTROL, 40"

Note: (S/N: 2014720376 & Below)

$49.99

$

Usually ships in 2-12 days

0

11

Simplicity 5021841SM

GRIP, FOAM, .940 X 5 X .187
(Superseded to 84003988)

$8.99

$

In Stock, only 4 left!

0

12

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 5404467CSM

WELD, HANDLE BAR
(Superseded to 5404467CYP)

$567.99

$

Usually ships in 2-12 days

0

14

Simplicity 703412

NUT, #10-24 HEX NYLON LOCK

Note: (5025271)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 5021670SM

STRAP, RUBBER

$14.99

$

In Stock, only 2 left!

0

16

Simplicity 5025270SM

SCREW, #10-24 X 1 RS, CZ

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 5100688SM

BATTERY BOX, W/ DRAIN HOLE

$

$

Not available

18

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

19

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

Note: (S/N: 2014720376 & Below)

$5.99

$

In Stock, only 4 left!

0

20

Simplicity 5047735CSM

SHIELD, REAR

Note: (S/N: 2014720376 & Below)

$30.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 5

0

22

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 5407437CSM

WELD, ENGINE DECK, HYDROCUT - ORG
(Superseded to 5407437CYP)

Note: (S/N: 2014720377 & Above)

$891.99

$

Usually ships in 2-12 days

0

24

Simplicity 5407442CSM

PLATE, BUMPER, HYDROCUT - ORG
(Superseded to 5407442CYP)

Note: (S/N: 2014720377 & Above)

$93.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

Note: (S/N: 2014720377 & Above)

$3.49

$

In Stock, Qty 20+

0
