5900766 - Simplicity Pacer 32" Walk-Behind Mower Motion Control & Parking Brake Group - 32" Models Parts Diagram

Pacer 32" Walk-Behind Mower

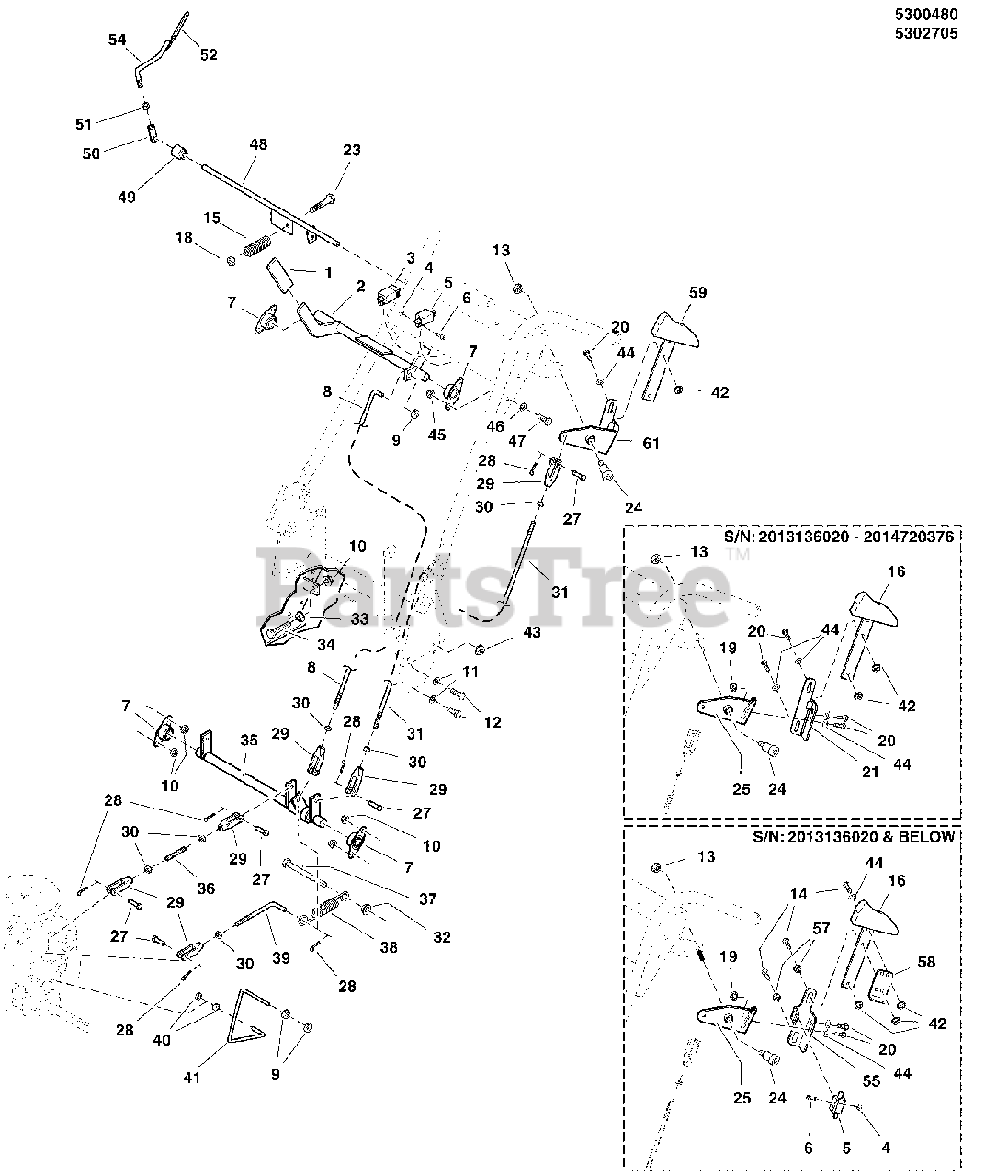

Motion Control & Parking Brake Group - 32" Models Parts Diagram

  • Title

1

Simplicity 5025510SM

GRIP, FOAM, 1/4" X 1

$6.49

$

In Stock, only 2 left!

0

2

Simplicity 5061278CSM

WELD, BRAKE CONTROL

$99.99

$

Usually ships in 2-12 days

0

3

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 11

0

4

Simplicity 5025029SM

NUT, #10-24 HEX

Note: (S/N: 2013136020 & Below use Qty.8)

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 5021769SM

SWITCH, Plunger, NC

Note: (S/N: 2013136020 & Below use Qty.3)

$14.99

$

In Stock, only 1 left!

0

6

Simplicity 5025179X4SM

SCREW, #10-24 X 1/2" ROUND PHILLIPS

Note: (S/N: 2013136020 & Below use Qty.8)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021098SM

BEARING, BRONZE FLANGE, 3/4

$13.99

$

In Stock, Qty 7

0

8

Simplicity 5061495SM

ROD, PARKING BRAKE LINKAGE

Note: (S/N: 2014720377 & Above)

$18.99

$

Usually ships in 2-12 days

0

8

Simplicity 5101513SM

ROD, PARKING BRAKE LINKAGE

Note: (S/N: 2014720376 & Below)

$49.99

$

Usually ships in 2-12 days

0

9

Simplicity 5020047SM

COLLAR, 5/16" SET

$7.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

11

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GD5

$3.99

$

In Stock, Qty 6

0

13

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

Note: (S/N: 2014720377 & Above)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 5025046SM

NUT, 3/8-16 HEX TOP LOCK

Note: (S/N: 2014720376 & Below)

$3.49

$

In Stock, Qty 6

0

14

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

Note: (S/N: 2013136020 & Below)

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5020637SM

SPRING, COMPRESSION
(Superseded to 5020637YP)

Note: (S/N: 2013136021 & Above)

$5.99

$

Usually ships in 2-12 days

0

16

Simplicity 5061691SM

HANDLE, RUBBER HYDROCUT - LH

Note: (S/N: 2014720376 & Below)

$46.99

$

Usually ships in 2-12 days

0

17

Simplicity 5061702SM

HANDLE, RUBBER HYDROCUT - RH

Note: (Not Shown - S/N: 2014720376 & Below)

$46.99

$

Usually ships in 2-12 days

0

18

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

Note: (S/N: 2013136021 & Above)

$4.49

$

In Stock, only 3 left!

0

19

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

Note: (S/N: 2014720376 & Below)

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4" GD5 YZ

$3.99

$

In Stock, Qty 13

0

21

Simplicity 5404461ASM

MOUNT, MOTION CONTROLS, LH
(Superseded to 5404461AYP)

Note: (S/N: 2013136021 - 2014720376)

$12.99

$

Usually ships in 2-12 days

0

22

Simplicity 5404462ASM

MOUNT, MOTION CONTROLS, RH
(Superseded to 5404462AYP)

Note: (Not Shown - S/N: 2013136021 - 2014720376)

$12.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025010X24SM

BOLT, 1/4-20 X 3, GD5
(Superseded to 5025010X24YP)

Note: (S/N: 2013136021 & Above)

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025223SM

BOLT, 3/8-16 X 1.0", 1/2" SHOULDER

$7.99

$

Usually ships in 2-12 days

0

25

Simplicity 5061683CSM

WELD, ARM CONTROL, LH

Note: (S/N: 2014720376 & Below)

$56.99

$

Usually ships in 2-12 days

0

26

Simplicity 5061685CSM

WELD, ARM CONTROL, RH

Note: (Not Shown - S/N: 2014720376 & Below)

$56.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025213X8SM

PIN, CLEVIS, 5/16" X 1

$4.99

$

In Stock, only 1 left!

0

28

Simplicity 5025201X6SM

PIN, COTTER, 3/32" X 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 5023323SM

CLEVIS, 5/16-24, STEEL, CLEAR ZINC

$9.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025033SM

NUT, 5/16-24 HEX
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 5047642SM

ROD, THUMB CONTROL LINKAGE

$17.99

$

Usually ships in 2-12 days

0

32

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 5023157SM

BOLT, 5/16-18 X 1 1/2" FLANGE

$3.99

$

Usually ships in 2-12 days

0

35

Simplicity 5047697CSM

WELD, CONTROL SHAFT

$31.99

$

Usually ships in 2-12 days

0

36

Simplicity 5047740SM

LINK, STUD

$11.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025013X32SM

BOLT, 3/8-16 X 4" GD5 YZ

$3.99

$

In Stock, only 1 left!

0

38

Simplicity 5049352SM

SPRING, EXT, 3.875 X .70 LOOP

$11.99

$

Usually ships in 2-12 days

0

39

Simplicity 5048328SM

LINK, PARKING BRAKE LOWER

$16.99

$

Usually ships in 2-12 days

0

40

Simplicity 5022481SM

COLLAR, 1/4" SET

$6.99

$

Usually ships in 2-12 days

0

41

Simplicity 5047732SM

LEVER, DUMP VALVE

$24.99

$

Usually ships in 2-12 days

0

42

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 3 left!

0

43

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 19

0

44

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

45

Simplicity 5025394SM

NUT, 3/8"-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 19

0

46

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 7

0

47

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4" GD5

$3.99

$

Usually ships in 2-12 days

0

48

Simplicity 5101679SM

ROD, OPC SWITCH, PACER
(Superseded to 5101679YP)

Note: (S/N: 2013136021 & Above)

$45.99

$

Usually ships in 2-12 days

0

49

Simplicity 5045943SM

SPACER, SHOULDER

Note: (S/N: 2013136021 & Above)

$11.99

$

In Stock, only 2 left!

0

50

Simplicity 5043417SM

ADJUSTER, LINKAGE

Note: (S/N: 2013136021 & Above)

$24.99

$

Usually ships in 2-12 days

0

51

Simplicity 5025034SM

NUT, 3/8-16 HEX

Note: (S/N: 2013136021 & Above)

$2.99

$

Usually ships in 2-12 days

0

52

Simplicity 5021490SM

GRIP, VINYL, 1/2 X 4

Note: (S/N: 2013136021 & Above)

$4.49

$

In Stock, Qty 12

0

53

Simplicity 5449175CSM

WELD, OPERATOR PRESENCE, LH - RED
(Superseded to 5049175CSM)

Note: (S/N: 2013136021 & Above)

$38.99

$

Usually ships in 2-12 days

0

54

Simplicity 5449176CSM

WELD, OPERATOR PRESENCE, RH - RED
(Superseded to 5049176CSM)

Note: (S/N: 2013136021 & Above)

$29.99

$

Usually ships in 2-12 days

0

55

Simplicity 5061689SM

MOUNT, MOTION CONTROLS, LH

Note: (S/N: 2013136020 & Below)

$14.99

$

In Stock, only 1 left!

0

56

Simplicity 5061692SM

MOUNT, MOTION CONTROLS, RH

Note: (S/N: 2013136020 & Below) (Not Shown)

$10.99

$

Usually ships in 2-12 days

0

57

Simplicity 5061693SM

SPACER, SLIDE

Note: (S/N: 2013136020 & Below)

$5.49

$

Usually ships in 2-12 days

0

58

Simplicity 5061713CSM

ACTUATOR, SWITCH

Note: (S/N: 2013136020 & Below)

$10.99

$

Usually ships in 2-12 days

0

59

Simplicity 5103023SM

HANDLE, RUBBER, HYDROCUT - LH
(Superseded to 5103023YP)

Note: (S/N: 2014720377 & Above)

$47.99

$

Usually ships in 2-12 days

0

60

Simplicity 5103024SM

HANDLE, RUBBER, HYDROCUT - RH
(Superseded to 5103024YP)

Note: (Not Shown - S/N: 2014720377 & Above)

$47.99

$

Usually ships in 2-12 days

0

61

Simplicity 5407623CSM

WELD, ARM CONTROL - LH - ORG
(Superseded to 5407623CYP)

Note: (S/N: 2014720377 & Above)

$21.99

$

Usually ships in 2-12 days

0

62

Simplicity 5407622CSM

WELD, ARM CONTROL - RH - ORG
(Superseded to 5407622CYP)

Note: (Not Shown - S/N: 2014720377 & Above)

$21.99

$

Usually ships in 2-12 days

0
