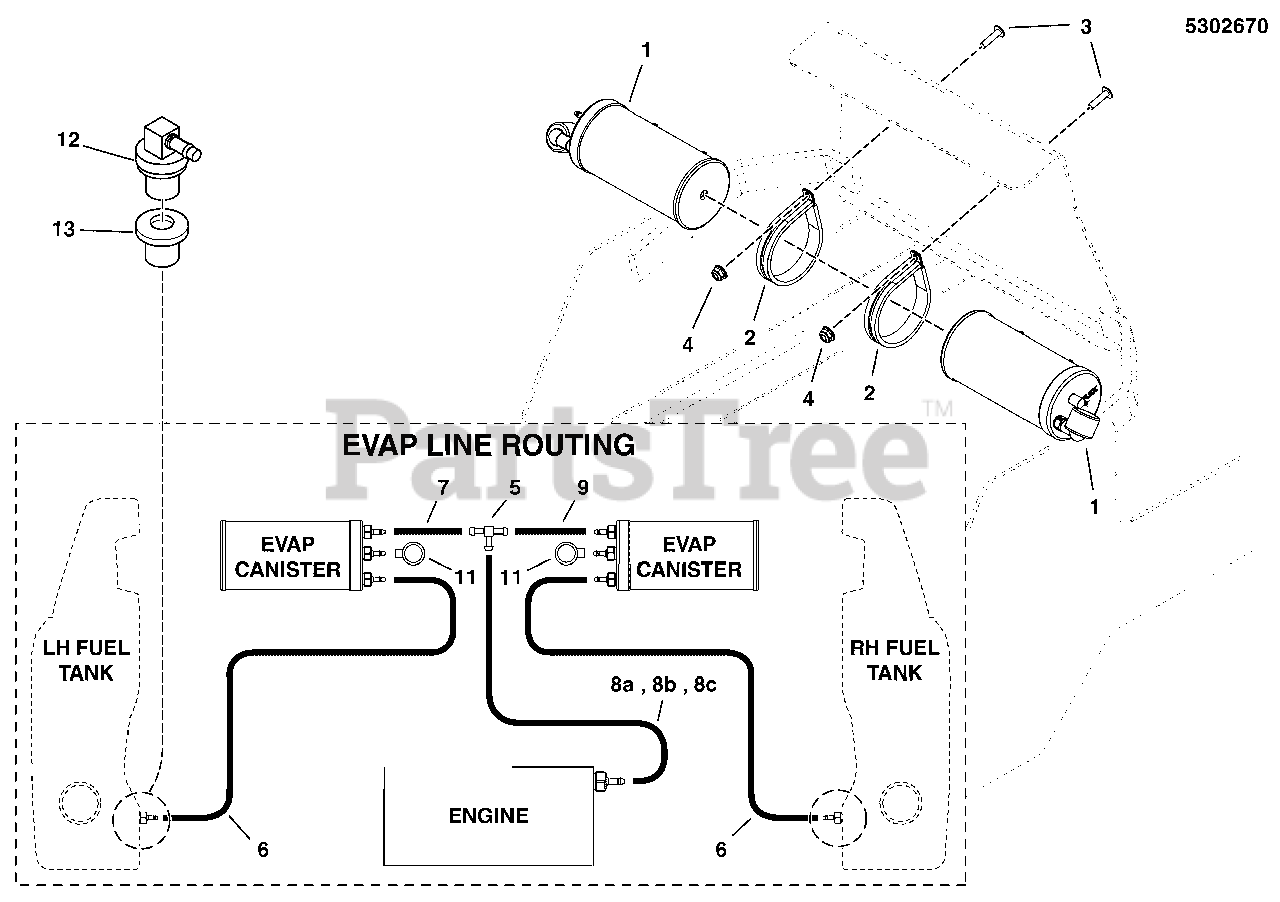

5900819 - Simplicity Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton Evap Canister Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton

Evap Canister Group Parts Diagram

  • Title

1

Simplicity 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

2

Simplicity 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025299X6

BOLT, 1/4-20 X 3/4, ALLEN BUTTON HD, YZ
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 7700552X10P5

HOSE, VAPOR, 5MM ID, 10.50 LG
(Superseded to 7700552X10P5YP)

$

$

Not available

7

Simplicity 7700552X11

HOSE, VAPOR, 5MM ID, 11.00 LG
(Superseded to 7700552X11YP)

$3.99

$

Usually ships in 2-12 days

0

8a

Simplicity 7700552X32

HOSE, VAPOR, 5MM ID, 32.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki Models)

$9.99

$

Usually ships in 2-12 days

0

8b

Simplicity 7700552X15

HOSE, VAPOR, 5MM ID, 15.00 LG
(Superseded to 7700552X22YP)

Note: (B&S Models)

$8.99

$

Usually ships in 2-12 days

0

8c

Simplicity 7700552X17

HOSE, VAPOR, 5MM ID, 17.00 LG
(Superseded to 7700552X17FS)

Note: (Kohler EFI Models)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 7700552X21P5

HOSE, VAPOR, 5MM ID, 21.50 LG
(Superseded to 7700552X22YP)

$8.99

$

Usually ships in 2-12 days

0

10

DECAL, EPA CERT, ZTRS

Note: (Located on frame near Serial Tag)

$

$

Not available

11

Simplicity 1752800

DUST FILTER, CANISTER
(Superseded to 1752800YP)

$15.99

$

Usually ships in 2-12 days

0

12

Simplicity 7104638

REMOTE VENT ASSY, NO VALVE
(Superseded to 770046)

Note: (SV)

$16.99

$

In Stock, only 1 left!

0

13

Simplicity 209043

GROMMET
(Superseded to 799624)

Note: (SV)

$8.99

$

In Stock, only 2 left!

0
