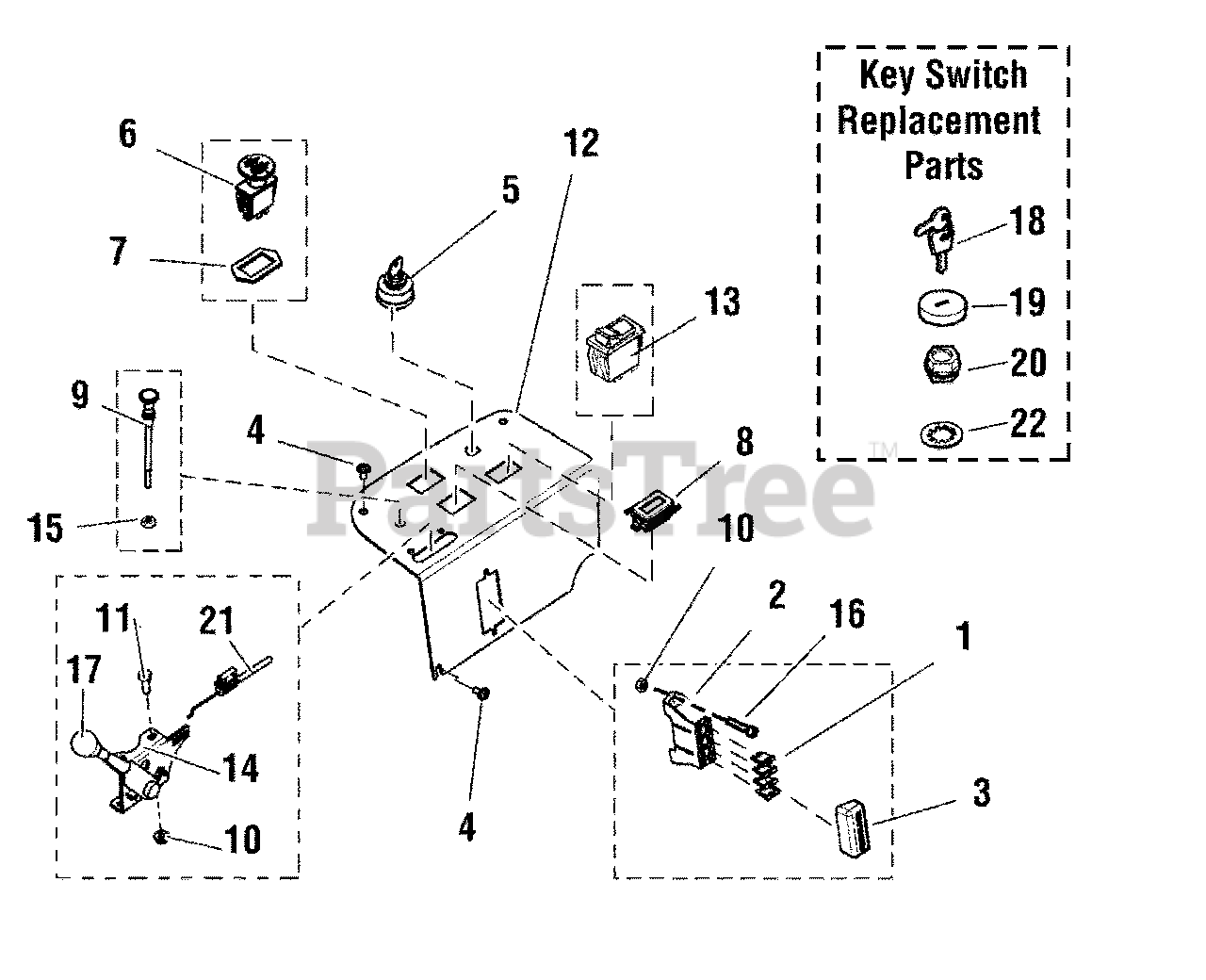

5900819 - Simplicity Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 30hp Briggs & Stratton

Instrument Control Panel Group Parts Diagram

  • Title

1

Simplicity 5021603

FUSE, ATO, 20 AMP
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

2

Simplicity 5021518

FUSE BLOCK
(Superseded to 5021518SM)

$11.99

$

In Stock, only 1 left!

0

3

Simplicity 5022805

COVER, VINYL FUSE BLOCK
(Superseded to 5022805SM)

$6.49

$

In Stock, only 1 left!

0

4

Simplicity 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

Usually ships in 2-12 days

0

5

Simplicity 1737853

SWITCH ASMY-IGNITION INDAK NO KEYS
(Superseded to 1737853YP)

$35.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7

Simplicity 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 5100996

HOUR METER W/ SUPRESSOR
(Superseded to 5102417)

$65.99

$

In Stock, only 1 left!

0

9

Simplicity 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

$52.99

$

Usually ships in 2-12 days

0

10

Simplicity 703412

NUT, #10-24 HEX NYLON LOCK

Note: (5025271)

$4.49

$

In Stock, Qty 12

0

11

Simplicity 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5403400A

PLATE, CONTROL PANEL, COBALT - BLACK
(Superseded to 5403400ASM)

$35.99

$

Usually ships in 2-12 days

0

13

Simplicity 1703799

SWITCH HEADLIGHT
(Superseded to 1703799SM)

$31.99

$

In Stock, only 2 left!

0

14

Simplicity 5101537

LEVER, THROTTLE CONTROL
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025270X16

SCREW, #10-24 X 2 ROUND PHILLIPS
(Superseded to 5025270X16SM)

$

$

Not available

17

Simplicity 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1737836

KEYS. BLISTER PK KIDS+MWRS DON'T MIX
(Superseded to 1737836YP)

Note: (Domestic Models)

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1717550

COVER, SWITCH (SV)
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 9

0

20

Simplicity 1717549

NUT-HEX FLANGE 5/8-32 IGN SW DIE CAST (SV)
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 5101076

CABLE, THROTTLE 47"
(Superseded to 5101076SM)

$35.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960547

LOCKWASHER-INTERNAL TOOTH, .625 THIN BLK (SV)
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0
