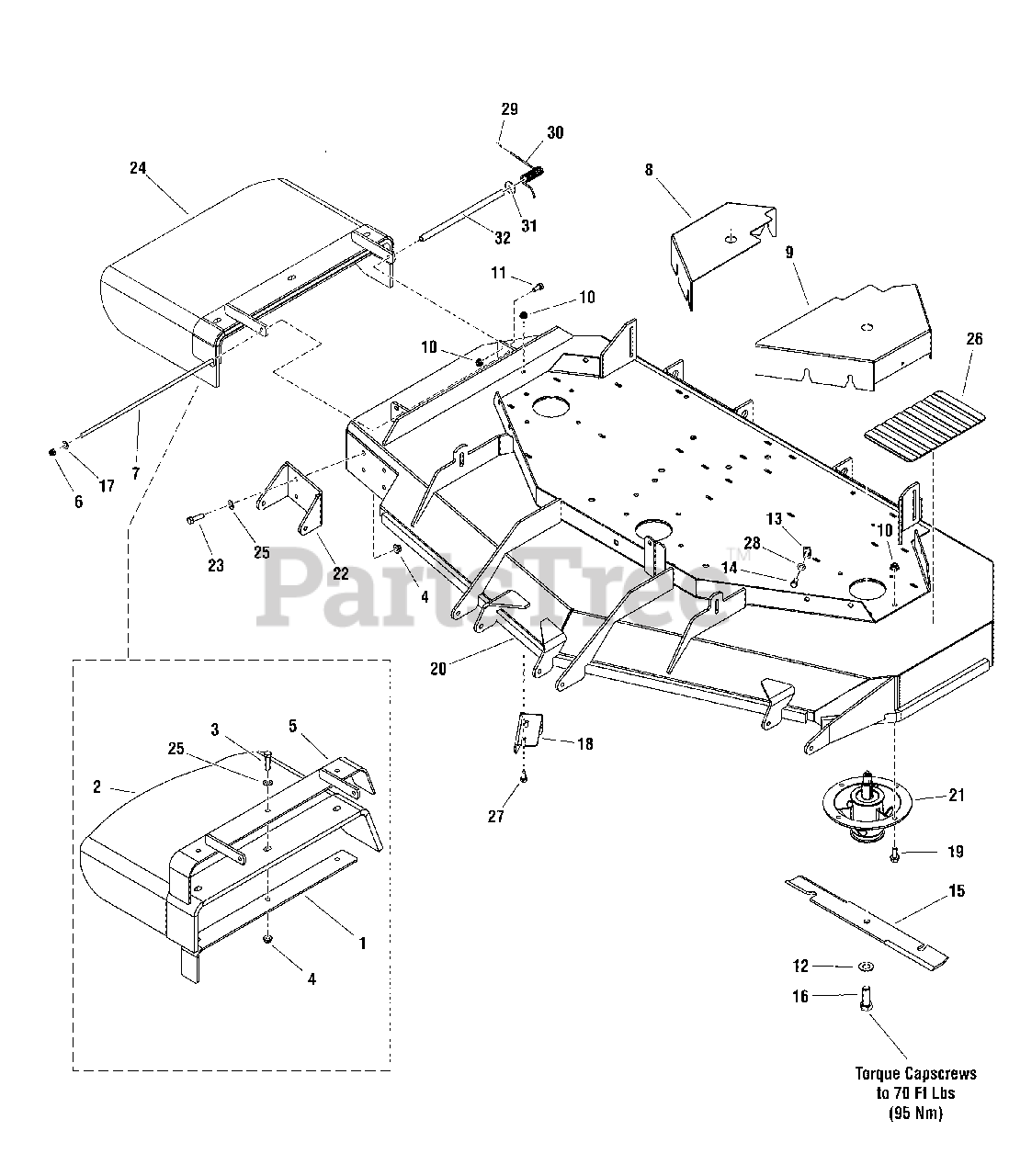

5900821 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Simplicity 5408018AYP

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK

$21.99

$

Usually ships in 2-12 days

0

2

Simplicity 5404834YP

CHUTE, DISCHARGE, BEND RUBBER (SV)

$168.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025013X12

BOLT, 3/8-16 X 1-1/2 GD5 YZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5404716AYP

WELD, FRAME CHUTE, 61 - BLK

$106.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

7

Simplicity 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 5400791C

GUARD, 61" - RH - ORG
(Superseded to 5400791CSM)

$

$

Not available

9

Simplicity 5061451C

GUARD 61" - LH - ORG
(Superseded to 5061451CSM)

$

$

Not available

10

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, only 4 left!

0

12

Simplicity 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

14

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

15

Simplicity 5101755S

BLADE, 21 X .25 X 2.5, 1 X 3.5 (SET OF 3)

$83.99

$

In Stock, only 4 left!

0

16

Simplicity 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Simplicity 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$12.99

$

In Stock, only 1 left!

0

19

Simplicity 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$4.49

$

In Stock, Qty 7

0

20a

Simplicity 5600438

DECK SHELL W/ DECALS, 61" - CITATION
(Superseded to 5600438YP)

Note: (S/N: 2014350218 & ABOVE)

$2422.99

$

Usually ships in 2-12 days

0

20b

Simplicity 5600296

DECK SHELL W/ DECALS, 61" - CITATION
(Superseded to 5600296YP)

Note: (S/N: 2014350217 & BELOW)

$3214.99

$

Usually ships in 2-12 days

0

21

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (Nut and Washer sold seperately)

$189.99

$

In Stock, only 4 left!

0

22

Simplicity 5408810C

PLATE, BRACKET, ANTI SCALP - ORANGE
(Superseded to 5408810CYP)

$58.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

24

PURCHASE INDIVIDUAL REPLACEMENT PARTS

$

$

Not available

25

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$16.99

$

In Stock, only 2 left!

0

27

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$4.49

$

In Stock, Qty 11

0

29

Simplicity 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

In Stock, only 1 left!

0

30

Simplicity 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.99

$

In Stock, only 2 left!

0

31

Simplicity 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 5050086X10P75

TUBE, 1/2 X 3/8 X 10.75 BLACK POLY
(Superseded to 5050086X10P75YP)

$15.99

$

Usually ships in 2-12 days

0
