5900927 - Simplicity Champion 52" Zero-Turn Mower, 27hp 52" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

Champion 52" Zero-Turn Mower, 27hp

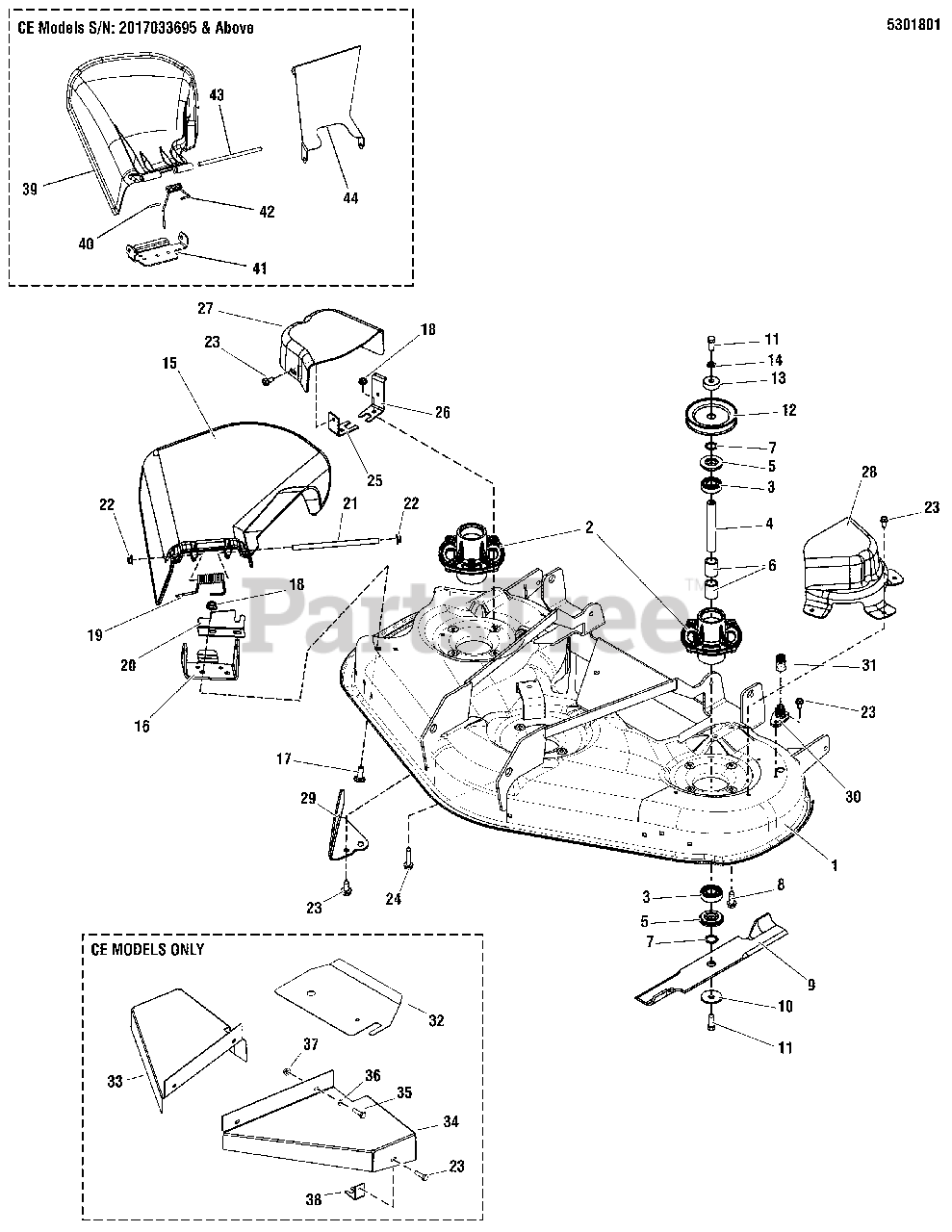

52" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

  • Title

1

Simplicity 5600357

DECK SHELL W/ DECALS, 52, SMI CHAMP

$

$

Not available

2

Simplicity 1737352SM

HOUSING, SPINDLE, CAST STEEL, MACHINED
(Superseded to 1737352YP)

$46.99

$

In Stock, Qty 20+

0

3

Simplicity 1735399SM

BEARING-BALL 20MM 46" MWR
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

4

Simplicity 1735326SM

SHAFT-SPINDLE 20MM DIA 134.60MM LG
(Superseded to 1735326YP)

$29.99

$

In Stock, only 1 left!

0

5

Simplicity 1735323SM

SHIELD-ARBOR 2.050OD 46" MWR
(Superseded to 1735323YP)

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1735328SM

SPACER-BEARING PWDR MTL 46" MWR
(Superseded to 1735328YP)

$6.99

$

In Stock, Qty 9

0

7

Simplicity 1960766SM

RING-SELF LOCKING 46" MWR
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1960373SM

SCREW-HEX WSHR HD TAPTT5/16-18X1.000BLK
(Superseded to 704146)

$3.99

$

In Stock, Qty 14

0

9

Simplicity 1737252SM

BLADE-MOWER 18.50LG 52" MWR
(Superseded to 1737252BZYP)

$19.99

$

In Stock, Qty 20+

0

10

Simplicity 1656916SM

WASHER, SPRING 0.475IDX1.75ODX.156TH BLK

$7.99

$

In Stock, Qty 20+

0

11

Simplicity 1920676SM

CAPSCREW-HEX HD 7/16-14X1.000 G5 BLK

$5.49

$

In Stock, only 3 left!

0

12

Simplicity 1735733SM

PULLEY-5.5 OD 11GA SPLIT 52" MWR
(Superseded to 1735733YP)

$21.99

$

Usually ships in 2-12 days

0

13

Simplicity 1735579SM

SPACER-LOWER DRIVE 46" MWR
(Superseded to 1735579YP)

$7.49

$

In Stock, only 3 left!

0

14

Simplicity 1918199SM

LOCKWSHER-SPRING .438 BLK
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 1735447SM

DEFLECTOR-DISCH PLASTIC 46/52 DECKS
(Superseded to 1687750YP)

Note: (CE Models - S/N: 2017033694 & Below)

$39.99

$

In Stock, Qty 20+

0

16

Simplicity 1737418ASM

HINGE, DEFLECTOR, 52"
(Superseded to 1737418BMYP)

Note: (CE Models - S/N: 2017033694 & Below)

$29.99

$

In Stock, only 1 left!

0

17

Simplicity 1931333SM

BOLT-RD HD SH SQ NK 5/16-18X0.750 G5 BLK
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

$3.49

$

In Stock, only 3 left!

0

19

Simplicity 1736364SM

SPRING-TORS DEFLECTOR 2.16LG 46" MWR
(Superseded to 1736364YP)

Note: (CE Models - S/N: 2017033694 & Below)

$

$

Not available

20

Simplicity 1737359ASM

PLATE, DEFLECTOR CLOSEOFF
(Superseded to 1737359BMYP)

Note: (CE Models - S/N: 2017033694 & Below)

$8.49

$

In Stock, only 3 left!

0

21

Simplicity 1736366SM

ROD, DEFLECTOR, YELLOW ZINC
(Superseded to 1736366YP)

Note: (CE Models - S/N: 2017033694 & Below)

$12.99

$

Usually ships in 2-12 days

0

22

Simplicity 7012542SM

NUT, PUSH, 5/16 BZ
(Superseded to 704028)

$5.49

$

In Stock, Qty 7

0

23

Simplicity 1664847SM

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1930600SM

SCREW-HEX WSHR HD TAPTT5/16-18X1.500 BLK

$5.49

$

In Stock, Qty 6

0

25

Simplicity 5405736AYP

BRKT, BELT COVER, SHORT

$11.99

$

In Stock, only 1 left!

0

26

Simplicity 5405734AYP

BRKT, BELT COVER, LONG W/ TAB

Note: (DOMESTIC MODELS ONLY)

$15.99

$

In Stock, only 1 left!

0

27

Simplicity 1735752SM

COVER-BELT BLACK POLY RH 46 + 52" MWRS
(Superseded to 1735752YP)

Note: (DOMESTIC MODELS ONLY)

$31.99

$

In Stock, only 4 left!

0

28

Simplicity 1736505SM

COVER-BELT LH BLACK POLY 52" MOWER
(Superseded to 1736505YP)

Note: (DOMESTIC MODELS ONLY)

$44.99

$

In Stock, only 2 left!

0

29

Simplicity 1737279ASM

BAFFLE, PINCHOFF
(Superseded to 1737279BMYP)

$17.99

$

In Stock, only 1 left!

0

30

Simplicity 1735716SM

ADAPTER-WASHOUT PORT 46+52" PLASTIC
(Superseded to 1756247YP)

$6.99

$

In Stock, Qty 7

0

31

Simplicity 1756246YP

WASHOUT PORT-CONNECTOR 46+52" BLK POLY

$16.99

$

In Stock, only 1 left!

0

32

Simplicity 5408415CSM

PLATE, BELT GUARD
(Superseded to 5408415CYP)

Note: (CE MODELS ONLY)

$35.99

$

Usually ships in 2-12 days

0

33

Simplicity 5407454CSM

PLATE, DECK GUARD - ORG RH
(Superseded to 5407454CYP)

Note: (CE MODELS ONLY)

$141.99

$

Usually ships in 2-12 days

0

34

Simplicity 5407455CSM

PLATE, DECK GUARD - ORG LH
(Superseded to 5407455CYP)

Note: (CE MODELS ONLY)

$137.99

$

Usually ships in 2-12 days

0

35

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

Note: (CE MODELS ONLY)

$3.99

$

In Stock, Qty 13

0

36

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

Note: (CE MODELS ONLY)

$4.49

$

In Stock, Qty 6

0

37

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

Note: (CE MODELS ONLY)

$3.49

$

In Stock, Qty 17

0

38

Simplicity 1736518ASM

BRKT, BELT COVER, FRONT
(Superseded to 1736518BMYP)

Note: (CE MODELS ONLY)

$14.99

$

Usually ships in 2-12 days

0

39

Simplicity 1754745YP

DEFLECTOR, 46/52
(Superseded to 1687750YP)

Note: (CE Models - S/N: 2017033695 & Above)

$39.99

$

In Stock, Qty 20+

0

40

Simplicity 5023489SM

CAP, PROTECTOR, .120 ID

Note: (CE Models - S/N: 2017033695 & Above)

$3.99

$

In Stock, only 1 left!

0

41

Simplicity 1754868AYP

BRACKET, HINGE, RETRO
(Superseded to 1754868BMYP)

Note: (CE Models - S/N: 2017033695 & Above)

$21.99

$

Usually ships in 2-12 days

0

42

Simplicity 1759042YP

SPRING - TORSION

Note: (CE Models - S/N: 2017033695 & Above)

$6.99

$

Usually ships in 2-12 days

0

43

Simplicity 1759064YP

ROD, DEFLECTOR 46"/52"

Note: (CE Models - S/N: 2017033695 & Above)

$8.99

$

In Stock, only 1 left!

0

44

Simplicity 1758935AYP

BRACKET, Support

Note: (CE Models - S/N: 2017033695 & Above)

$59.99

$

In Stock, only 1 left!

0
