5900954 - Simplicity Citation 52" Zero-Turn Mower, 26hp Kawasaki Motion Control Group Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Kawasaki

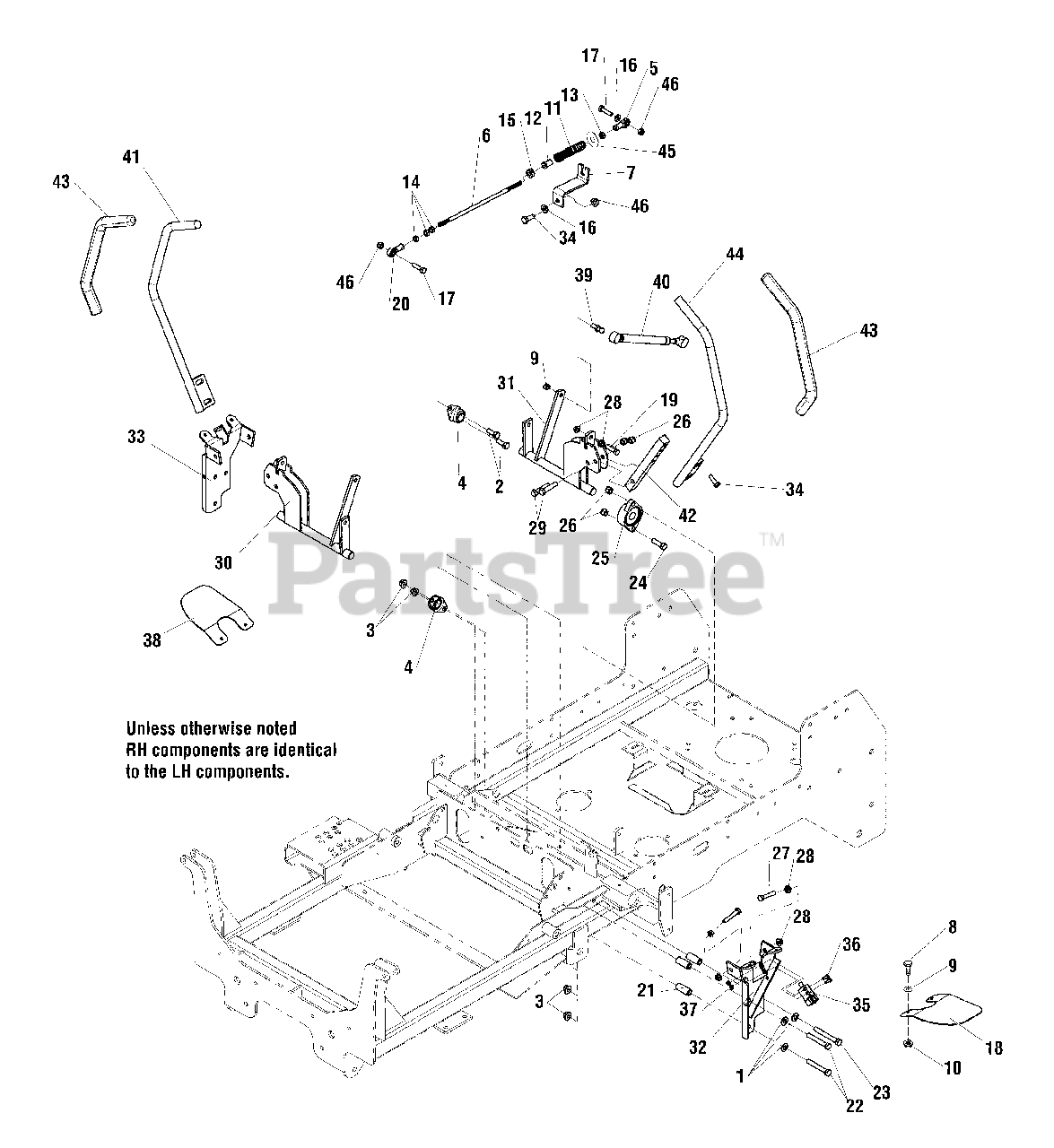

Motion Control Group Parts Diagram

  • Title

1

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 8

0

5

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

6

Simplicity 5046420

ROD, HYDRO LINKAGE
(Superseded to 5046420SM)

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 5400653A

MOUNT, REVERSE RETURN - BLK
(Superseded to 5400653AYP)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 16

0

9

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 12

0

10

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

Usually ships in 2-12 days

0

12

Simplicity 5023260

BUSHING, NYLON
(Superseded to 5023260SM)

$6.49

$

Usually ships in 2-12 days

0

13

Simplicity 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Simplicity 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

18

Simplicity 5403956A

PLATE, HAND GUARD, LH - BLK
(Superseded to 5403956AYP)

$13.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025011X9

BOLT, 5/16-18 X 1-1/8 GD5
(Superseded to 5025011X9SM)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

In Stock, only 2 left!

0

21

Simplicity 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025013X20

BOLT, 3/8-16 X 2-1/2 GD5 YZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025013X24

BOLT, 3/8-16 X 3 GD5 YZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4 GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 2 left!

0

25

Simplicity 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

26

Simplicity 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 11

0

27

Simplicity 5025055X14

BOLT, 5/16-18 X 1-3/4 GD5 TFL
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

29

Simplicity 5025013X14

BOLT, 3/8-16 X 1-3/4 GD5
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

30

Simplicity 5403620A

WELD, CONTROL SHAFT, RH - BLK
(Superseded to 84008453)

$182.99

$

Usually ships in 2-12 days

0

31

Simplicity 5403619A

WELD, CONTROL SHAFT, LH - BLK
(Superseded to 5403619AYP)

$113.99

$

Usually ships in 2-12 days

0

32

Simplicity 5409641A

WELD, NEUTRAL LOCK, LH - BLK

$60.99

$

Usually ships in 2-12 days

0

33

Simplicity 5409642A

WELD, NEUTRAL LOCK, RH - BLK

$

$

Not available

34

Simplicity 1960541

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 1960541SM)

$3.49

$

In Stock, only 1 left!

0

35

Simplicity 5021451

SWITCH, PLUNGER, N.O.
(Superseded to 5021451SM)

$11.99

$

In Stock, only 2 left!

0

36

Simplicity 5025179X4

SCREW, #10-24 X 1/2 ROUND PHILLIPS
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

38

Simplicity 5403597A

PLATE, HAND GUARD, RH - BLK
(Superseded to 5403597AYP)

$13.99

$

Usually ships in 2-12 days

0

39

Simplicity 5101307

10MM BALL STUD, 5/16-18 X 3/4 THDS
(Superseded to 5101307SM)

$5.49

$

Usually ships in 2-12 days

0

40

Simplicity 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

41

Simplicity 5400637A

WELD, HANDLE MOTION CONTROL, RH - BLK
(Superseded to 5400637AYP)

$69.99

$

Usually ships in 2-12 days

0

42

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

43

Simplicity 5022068

GRIP, FOAM, 3/4 ID, 16 LONG
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

44

Simplicity 5400636A

WELD, HANDLE MOTION CONTROL LH - BLK
(Superseded to 5400636AYP)

$50.99

$

Usually ships in 2-12 days

0

45

Simplicity 5025424

WASHER, 3/8 X 1" X 1/16, NYLON F/W
(Superseded to 5025424FS)

$2.49

$

Usually ships in 2-12 days

0

46

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
