5901141 (SB50) - Ferris 50" Snow Thrower Chute Group Parts Diagram

50" Snow Thrower

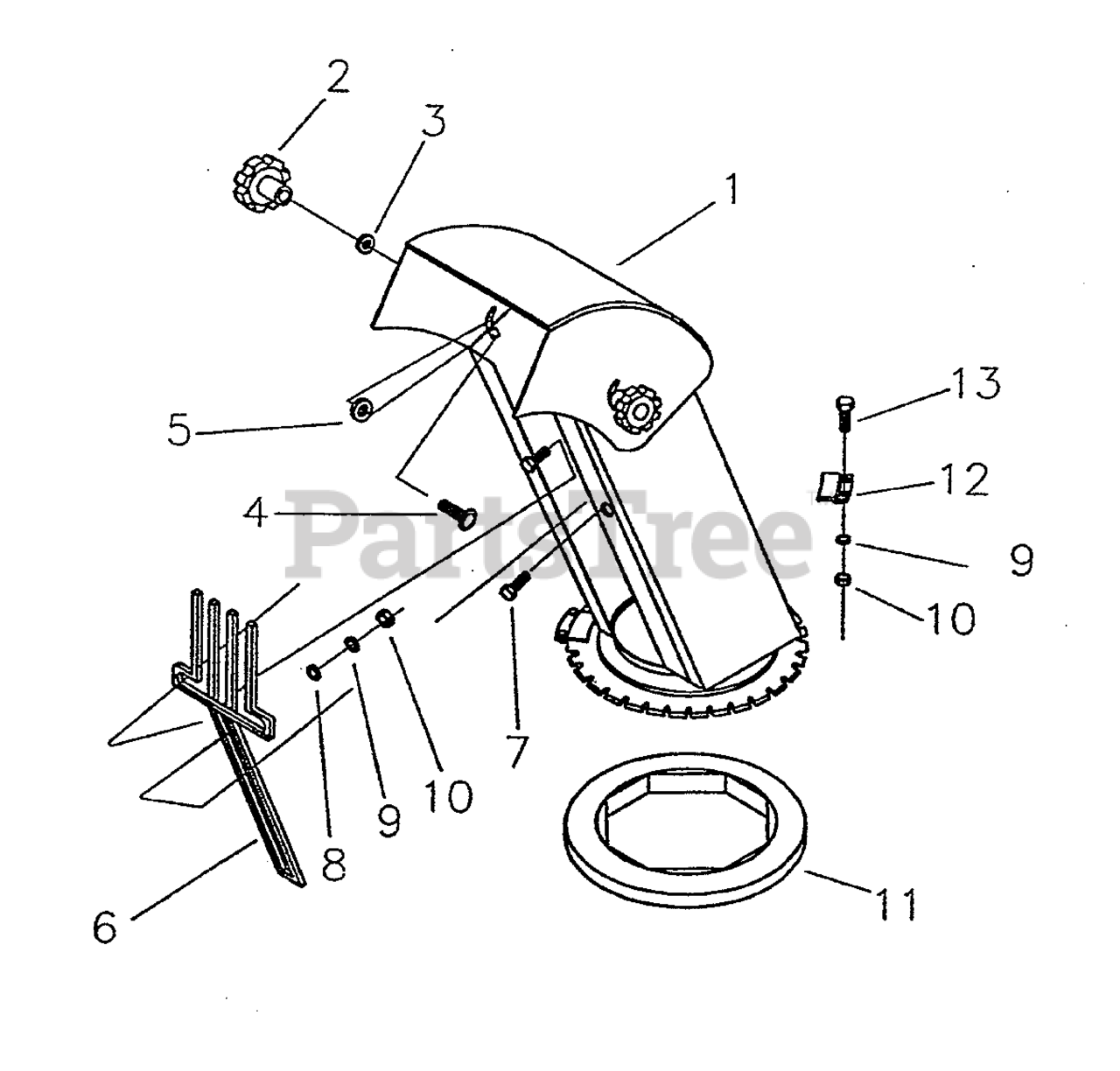

Chute Group Parts Diagram

  • Title

1

Ferris 657319

Chute, Base and Knobs with Decals

$

$

Currently unavailable

2

Ferris 5657309

Knob 5/16" NC

$9.49

$

Usually ships in 2-12 days

0

3

Ferris 658467

Nylon Flat Washer 11/32" Diameter Hole

$

$

Currently unavailable

4

Carriage Bolt 5/16" NC x 1-1/2"

Note: (Obtain Locally)

$

$

Not available

5

Ferris 658468

Nylon Flat Washer 7/16" Diameter Hole

$

$

Currently unavailable

6

Ferris 5657308

Hand Guard

$25.99

$

Usually ships in 2-12 days

0

7

Hex Bolt 1/4" NC x 3/4"

Note: (Obtain Locally)

$

$

Not available

8

Flat Washer 5/16" Diameter Hole

Note: (Obtain Locally)

$

$

Not available

9

Lockwasher 1/4"

Note: (Obtain Locally)

$

$

Not available

10

Hex Nut 1/4" NC

Note: (Obtain Locally)

$

$

Not available

11

Ferris 5657338

Nylon Ring

$11.99

$

Usually ships in 2-12 days

0

12

Ferris 5657333

Retaining Plate

$7.99

$

Usually ships in 2-12 days

0

13

Hex Bolt 1/4" NC x 1/2"

Note: (Obtain Locally)

$

$

Not available

13

Hex Bolt 1/4" NC x 3/4"

Note: (Obtain Locally)

$

$

Not available
