5901142 (SBR53) - Ferris 53" Commercial Snow Thrower 53" Snow Thrower Parts Diagram

53" Commercial Snow Thrower

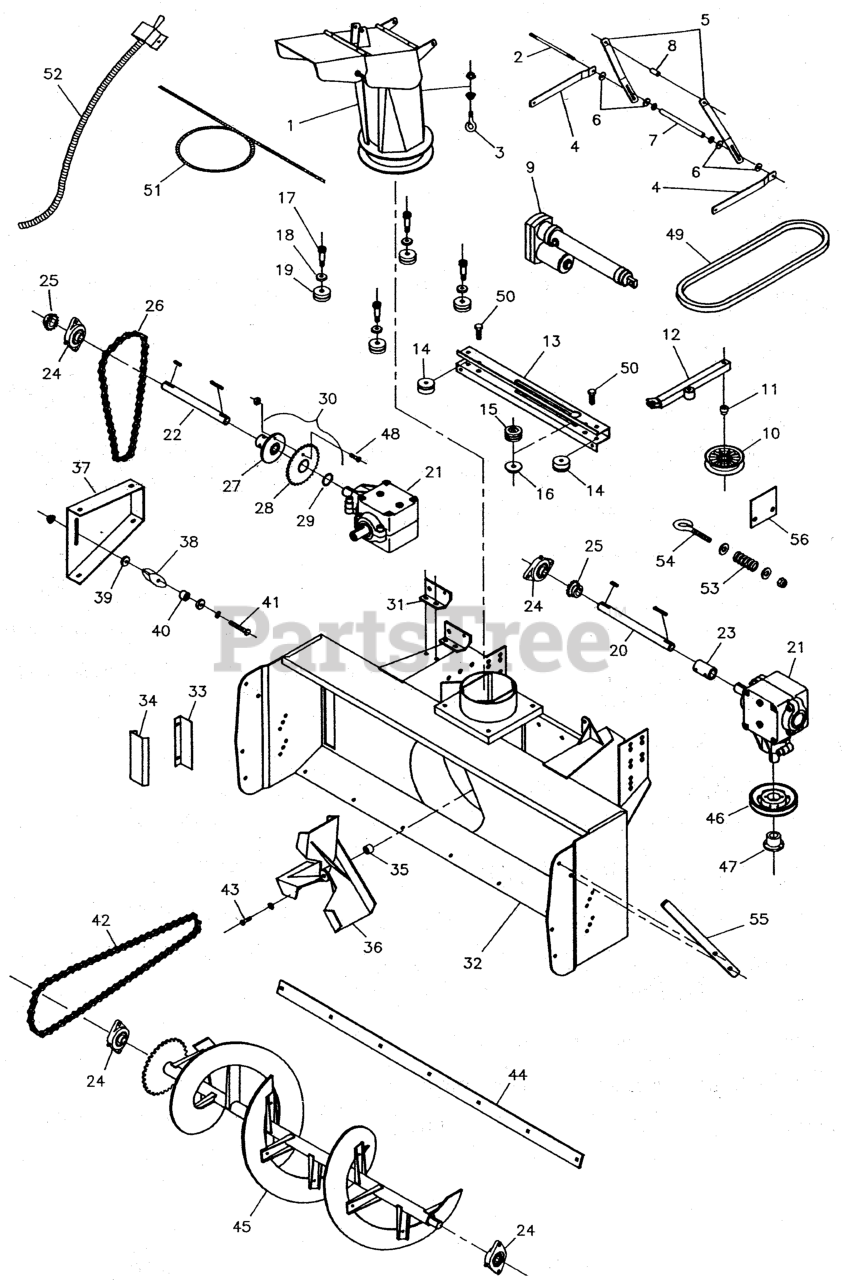

53" Snow Thrower Parts Diagram

  • Title

1

Ferris 5030955

CHUTE WELDMENT

$

$

Currently unavailable

2

Ferris 5044586

HINGE ROD

$

$

Currently unavailable

3

Ferris 5025141X26

EYEBOLT, 5/16-18 x 3-1/4
(Superseded to 5025141X26YP)

$7.99

$

Usually ships in 2-12 days

0

4

Ferris 5044588B

PIVOT ARM

$

$

Currently unavailable

5

Ferris 5044583

SLIDE BAR

$

$

Currently unavailable

6

Ferris 5044587

FRICTION DISC

$

$

Currently unavailable

7

Ferris 50710-5.12

SPACER

$

$

Currently unavailable

8

Ferris 50710-2.12

SPACER

$

$

Currently unavailable

9

Ferris 5021502

ELECTRIC ACTUATOR

$

$

Currently unavailable

10A

Ferris 5044098

PULLEY, Idler

Note: (with insert)

$72.99

$

Usually ships in 2-12 days

0

10

Ferris 5021002

PULLEY, Backside Idler
(Superseded to 5021002SM)

$40.99

$

In Stock, only 3 left!

0

11

Ferris 5021168

INSERT, Bearing Shoulder
(Superseded to 5021168FS)

$10.99

$

In Stock, only 2 left!

0

12

Ferris 5044567

IDLER ARM

$

$

Currently unavailable

13

Ferris 5030962

CABLE SLIDE MOUNT

$

$

Currently unavailable

14

Ferris 5044549

CABLE ROLLER

$

$

Currently unavailable

15

Ferris 5044550

CABLE ROLLER ACTUATOR

$

$

Currently unavailable

16

Ferris 5044551

ACTUATOR SLIDE

$

$

Currently unavailable

17

Ferris 5025223

SHOULDER BOLT, 1/2 x 1
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

18

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5044548

CHUTE PIVOT ROLLER

$

$

Currently unavailable

20

Ferris 5044559

DRIVE SHAFT

$

$

Currently unavailable

21

Ferris 21791

GEARBOX

$

$

Currently unavailable

22

Ferris 5044558

DRIVE SHAFT

$

$

Currently unavailable

23

Ferris 5044571

GEARBOX SHAFT COLLAR

$

$

Currently unavailable

24

Ferris 5021796

BEARING

$

$

Currently unavailable

25

Ferris 5021794

SPROCKET

$

$

Currently unavailable

26

Ferris 5010673X24

CHAIN, #40 Roller, 24 Links

$

$

Currently unavailable

27

Ferris 5044574

SHEAR PLATE

$

$

Currently unavailable

28

Ferris 5044527

SHEAR SPROCKET

$

$

Currently unavailable

29

Ferris 5021797

SNAP RING

$2.99

$

Usually ships in 2-12 days

0

30

Ferris 44576

SHEAR PLATE & SPROCKET ASSEMBLY

$

$

Currently unavailable

31

Ferris 44557

SLIDE MOUNT

$

$

Currently unavailable

32

Ferris 30954

SNOW BLOWER HOUSING

$

$

Currently unavailable

33

Ferris 44546

GUARD SUPPORT

$

$

Currently unavailable

34

Ferris 44545

CHAIN GUARD

$

$

Not available

35

Ferris 5044524

COLLAR SHIM

$

$

Currently unavailable

36

Ferris 5030947

IMPELLER

$

$

Currently unavailable

37

Ferris 5030946

AUGER DRIVE CHAIN GUARD

$

$

Currently unavailable

38

Ferris 5044570

CHAIN IDLER

$

$

Currently unavailable

39

Ferris 5044561

CHAIN IDLER SPACER - SHORT

$

$

Currently unavailable

40

Ferris 5044560

SPACER, .39 x 1.00 x .50

$

$

Currently unavailable

41

Ferris 25003-24

BOLT, 3/8-16 x 3

$

$

Currently unavailable

42

Ferris 5010673X49

CHAIN, #40 Roller, 49 Links

$

$

Currently unavailable

43

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

44

Ferris 30943

SNOW BLOWER BLADE

$

$

Currently unavailable

45

Ferris 5030957

AUGER

$

$

Currently unavailable

46

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

47

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 2 left!

0

48

Ferris 5025001X12

BOLT, 1/4-20 X 1-1/2

$

$

Currently unavailable

49

Ferris 5021802

BELT

Note: (H18 & H20 Series)

$

$

Currently unavailable

49

Ferris 5021726

BELT

Note: (H30 Series)

$56.99

$

Usually ships in 2-12 days

0

50

Ferris 44538

CABLE ANCHOR BOLT

$

$

Currently unavailable

51

Ferris 50832-124

1/8" WIRE ROPE, 124" LONG

$

$

Currently unavailable

52

Ferris 5044589

HARNESS

Note: (**Does NOT include switch as illustrated. See item # 57 for switch)

$131.99

$

Usually ships in 2-12 days

0

53

Ferris 5021773

SPRING, Compression
(Superseded to 5021773FS)

$10.99

$

Usually ships in 2-12 days

0

54

Ferris 21804

EYE BOLT

$

$

Currently unavailable

55

Ferris 5044592

DRIFT BUSTER

Note: (Optional)

$

$

Currently unavailable

56

Ferris 44568

IDLER ARM MOUNT

$

$

Currently unavailable

57

Ferris 5021734

SWITCH, ACTUATOR
(Superseded to 5021734SM)

Note: (Not illustrated.)

$52.99

$

Usually ships in 2-12 days

0
