5901230 - Simplicity Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton Main Frame & Front Suspension Group (5303248) Parts Diagram

Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton

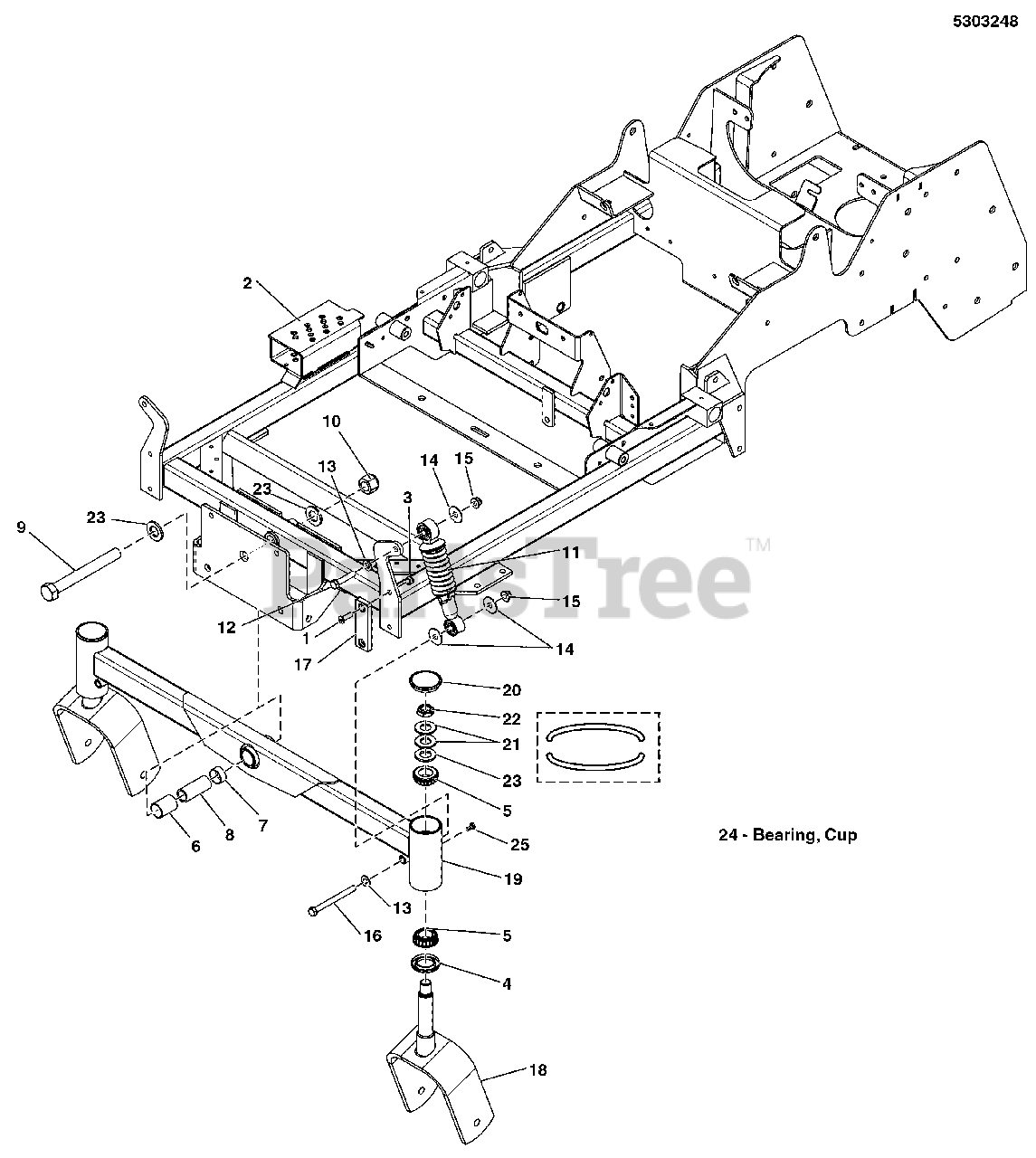

Main Frame & Front Suspension Group (5303248) Parts Diagram

  • Title

1

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

$4.49

$

Usually ships in 2-12 days

0

2

WELD, MAIN FRAME, CHAMPION XT - ORG

$

$

Not available

3

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5021072SM

SEAL, GREASE

$7.99

$

In Stock, Qty 12

0

5

Simplicity 5020884SM

BEARING, TAPERED ROLLER, 1

$26.99

$

In Stock, Qty 15

0

6

Simplicity 5022852SM

PIVOT BEARING-1.00 X 1.125 ODX1.50

$34.99

$

In Stock, only 1 left!

0

7

Simplicity 5100358SM

PIVOT BEARING, 1.00 X 1.125 OD X .50

$18.99

$

In Stock, only 1 left!

0

8

Simplicity 5047489SM

SPACER, .75 X 1.00 X 2.38

$37.99

$

In Stock, only 1 left!

0

9

Simplicity 5025265X52SM

BOLT, 3/4-16 X 6-1/2 YZ GD8

$16.99

$

In Stock, only 1 left!

0

10

Simplicity 5025284SM

NUT, 3/4-16 HEX NYLON LOCK

$3.49

$

In Stock, only 1 left!

0

11

Simplicity 5023483SM

SHOCK, SPRING ASSEMBLY

$56.99

$

In Stock, only 2 left!

0

12

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$4.49

$

In Stock, Qty 7

0

13

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 9

0

14

Simplicity 5025165SM

WASHER-3/8 FENDER

$4.49

$

In Stock, Qty 12

0

15

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5025013X32SM

BOLT, 3/8-16 X 4 GD5 YZ

$4.49

$

In Stock, Qty 9

0

17

Simplicity 5102702YP

PAD, FRICTION - 1.25 X 4.00

$6.99

$

In Stock, only 2 left!

0

18

Simplicity 5404838CYP

WELD, CASTER YOKE, EVOLUTION - ORG

$181.99

$

Usually ships in 2-12 days

0

19

Simplicity 5402536CSM

WELD, FRONT PIVOT, CITATION - ORG
(Superseded to 5401410CSM)

$410.99

$

Usually ships in 2-12 days

0

20

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

In Stock, only 3 left!

0

22

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, Qty 14

0

23

Simplicity 5025160SM

WASHER, 3/4 SAE

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 5020883SM

BEARING, CUP

Note: (SV)

$9.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025457SM

BOLT, 1/4-2/ X 1/2, GD5 YZ

$3.99

$

In Stock, only 3 left!

0
