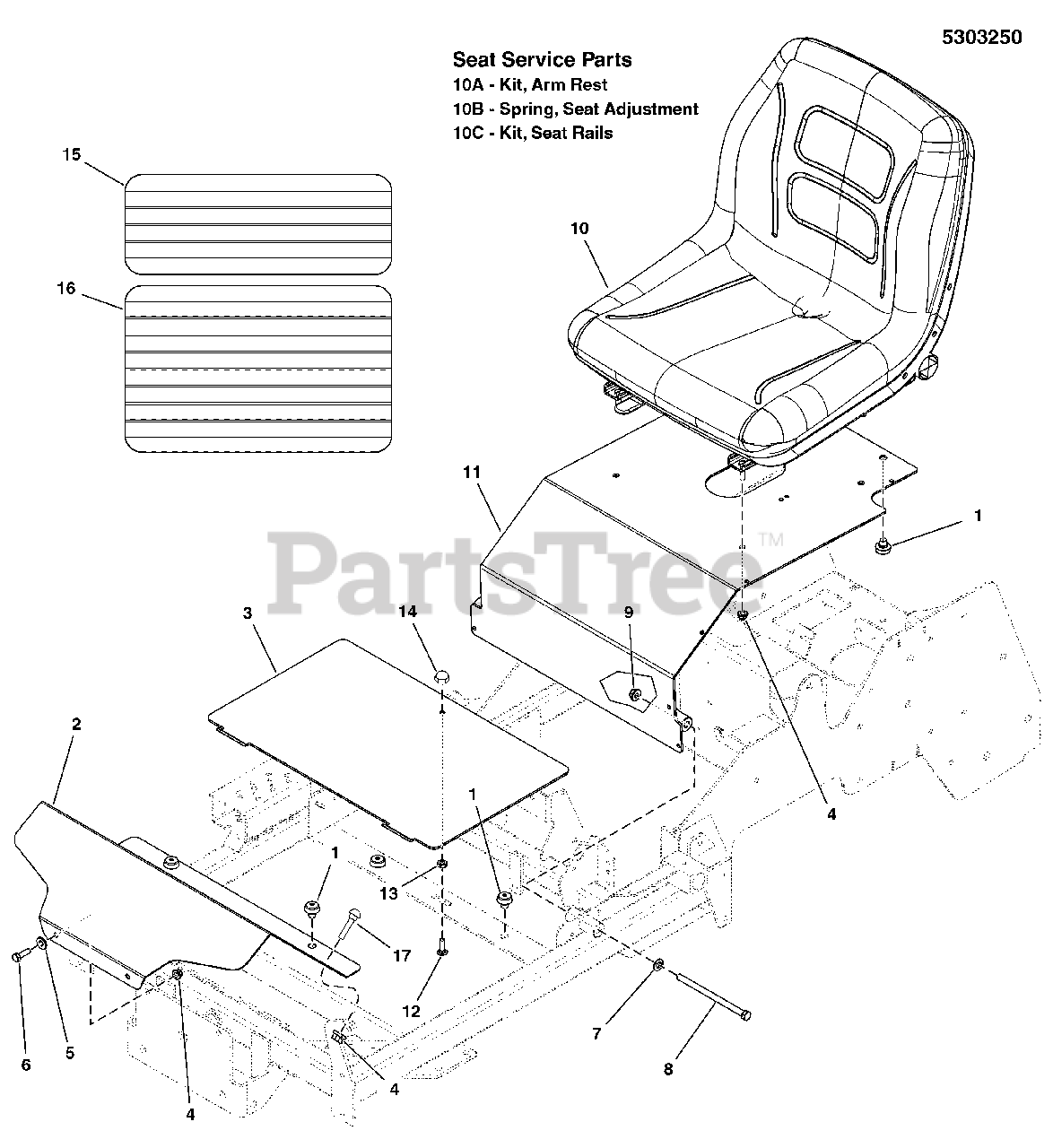

5901230 - Simplicity Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton Seat Mount & Floor Group S/N: 2017859741 & Below Parts Diagram

Champion XT 48" Zero-Turn Mower, 27hp Briggs & Stratton

Seat Mount & Floor Group S/N: 2017859741 & Below Parts Diagram

  • Title

1

Simplicity 197546GS

MNT, VBRTN, RBBR

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 5410257CYP

PLATE, FLOOR PAN, RIDGID IS600Z - ORG

$139.99

$

Usually ships in 2-12 days

0

3

Simplicity 5410256CYP

PLATE, FLOOR PAN, REMOVABLE. IS600 - ORG

$76.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

5

Simplicity 5025292SM

WASHER, 5/16 F436 FLAT

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

7

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

8

Simplicity 5025013X48SM

BOLT, 3/8-16 X 6 GD5 YZ

$5.99

$

In Stock, Qty 9

0

9

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5100909SM

SEAT, NO ARM REST

$551.99

$

Usually ships in 2-12 days

0

10A

Simplicity 1686907SM

ARMREST KIT

Note: (SV)

$139.99

$

Usually ships in 2-12 days

0

10B

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

10C

Simplicity 5061599X1SM

SEAT RAIL, KIT, RH AND LH

Note: (SV)

$192.99

$

Usually ships in 2-12 days

0

11

Simplicity 5600639YP

ASSM, SEAT PLATE W/DECALS - ZTS600 (5409894C)

Note: (S/N: 2017612394 & Below)

$364.99

$

Usually ships in 2-12 days

0

11

Simplicity 5601056YP

ASSM, SEAT PLATE W/DECALS, CHAMPION XT (5415897C)

Note: (S/N: 2017612395 & Above)

$

$

Currently unavailable

12

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

13

Simplicity 5025388YP

NUT, 5/16-18 HEX JAM

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025528YP

ACORN NUT, 5/16-18 S/S

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5101374YP

SAFETY WALK, FLOOR REST, 6.00 X 16.00

$18.99

$

In Stock, only 2 left!

0

16

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X16

$37.99

$

In Stock, only 2 left!

0

17

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE

$3.99

$

In Stock, Qty 9

0
