5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton 48" Mower Deck - Rear Roller Bar (5303257) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

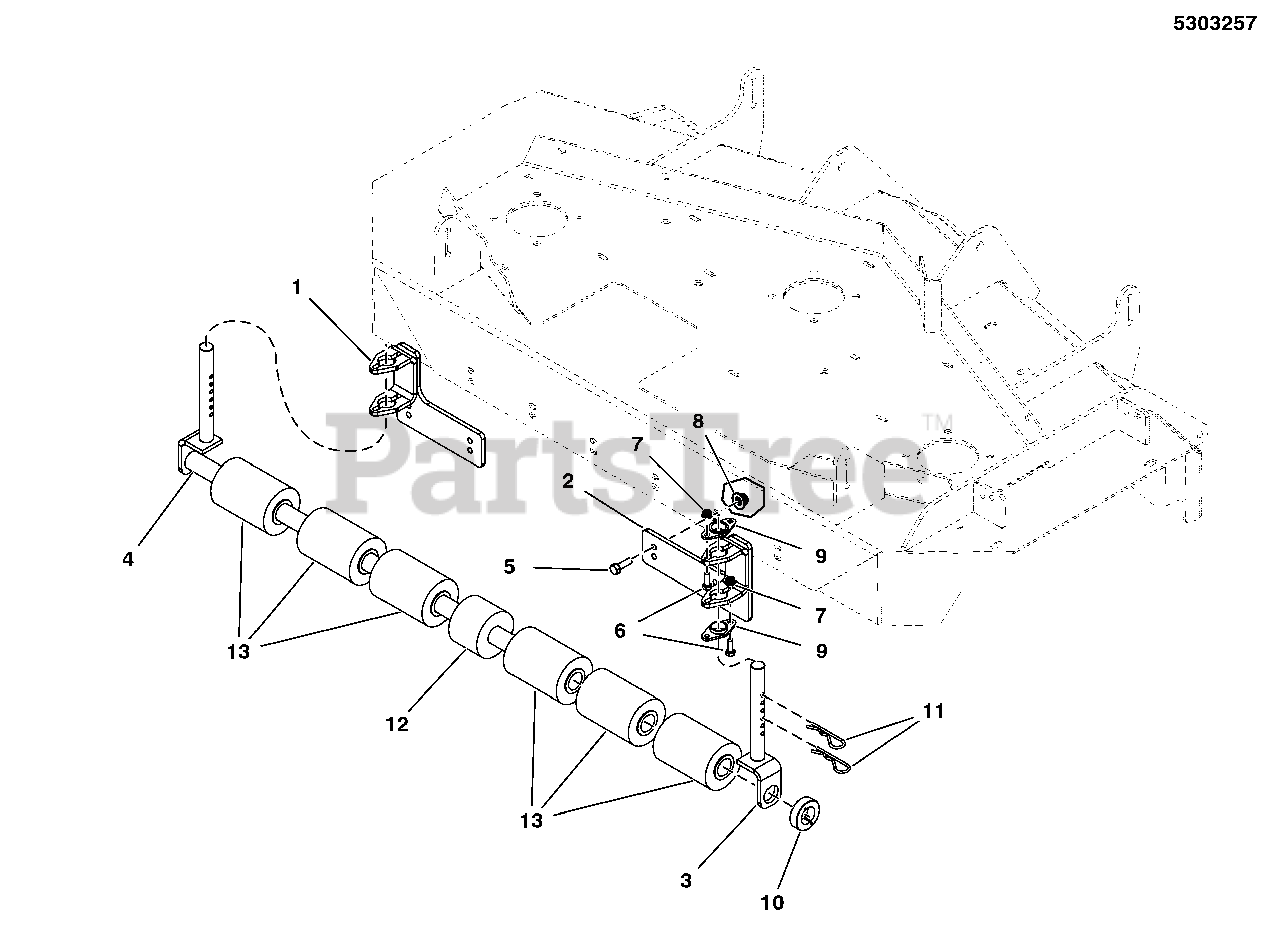

48" Mower Deck - Rear Roller Bar (5303257) Parts Diagram

  • Title

1

Simplicity 5410491AYP

WELD, ROLLER MOUNT LH, 48, IS600 - BLK

$135.99

$

In Stock, only 2 left!

0

2

Simplicity 5410490AYP

WELD, ROLLER MOUNT RH, 48, IS600 - BLK

$74.99

$

Usually ships in 2-12 days

0

3

Simplicity 5410489AYP

WELD, ROLLER SUPPORT, 48, IS600 - BLK

$60.99

$

Usually ships in 2-12 days

0

4

Simplicity 5410488AYP

WELD, ROLLER SHAFT, 48, IS600 - BLK

$147.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

6

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

$3.49

$

In Stock, only 3 left!

0

9

Simplicity 5023155SM

BUSHING, FLANGE, GFL - 20

$11.99

$

In Stock, Qty 15

0

10

Simplicity 5020602SM

COLLAR, 1 SPLIT

$23.99

$

In Stock, only 1 left!

0

11

Simplicity 1960033SM

CLIP-HAIR PIN .125DIA SPRG WI 2.56LG BLK

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1720159SM

ROLLER-1.010ID 2

$37.99

$

Usually ships in 2-12 days

0

13

Simplicity 1678042YP

ROLLER W/BUSHINGS BLACK POLY

$27.99

$

In Stock, only 4 left!

0
