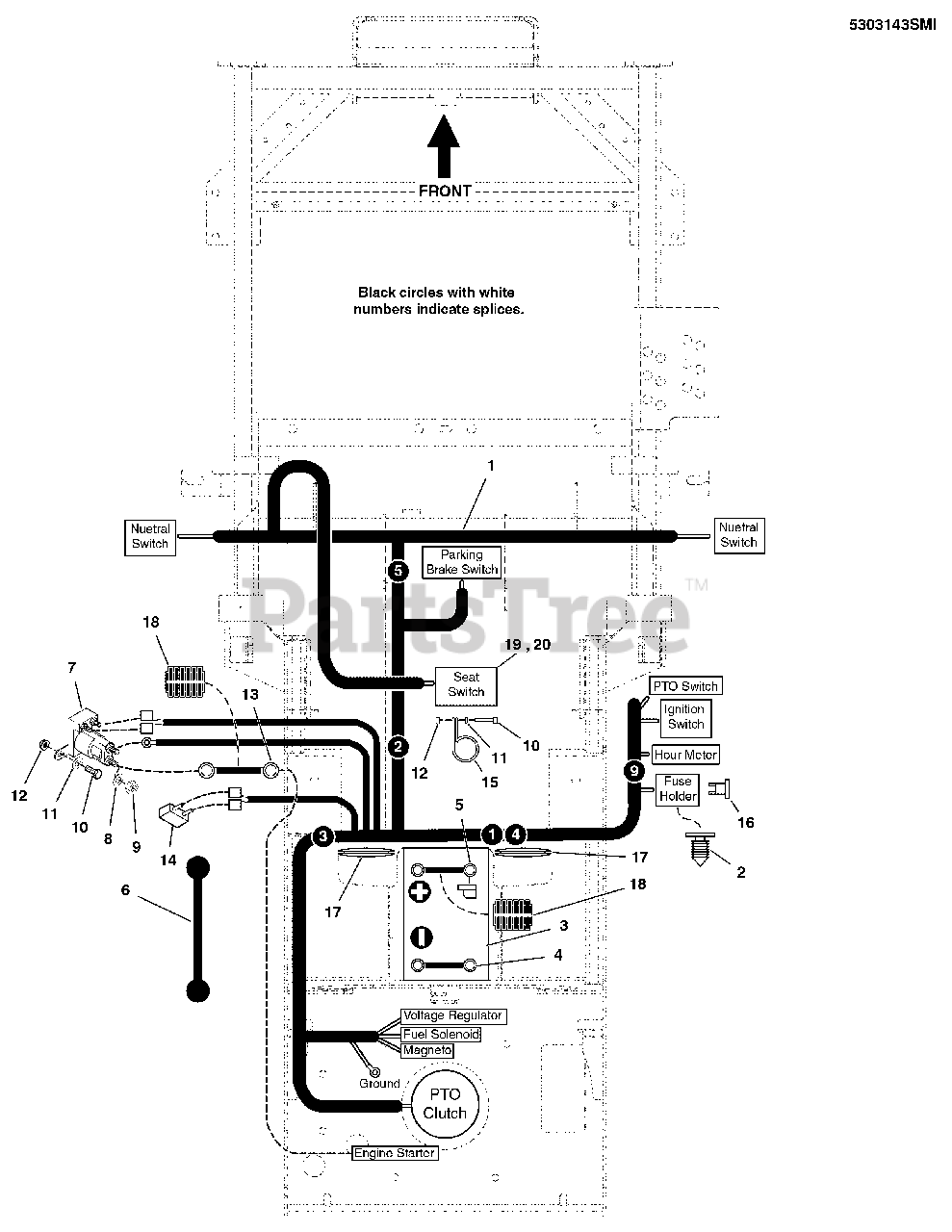

5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton Electrical Group - S/N: 2017612394 & Below (5303143SMI) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

Electrical Group - S/N: 2017612394 & Below (5303143SMI) Parts Diagram

  • Title

1

Simplicity 5410289YP

WIRE HARNESS, C TURF,WARNER, IS600/IS700

$459.99

$

Usually ships in 2-12 days

0

2

Simplicity 5103761YP

FIR TREE MOUNT, PACKARD

$5.99

$

Usually ships in 2-12 days

0

3

BATTERY, WET (BCIU1, 340 CCA)

$

$

Not available

4

Simplicity 5047690SM

BATTERY CABLE, NEGATIVE, 14

$17.99

$

In Stock, only 1 left!

0

5

Simplicity 5021405SM

BATTERY CABLE, POSITIVE, 22

$19.99

$

In Stock, only 2 left!

0

6

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 2 left!

0

7

Simplicity 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$25.99

$

In Stock, Qty 20+

0

8

Simplicity 5023217SM

WASHER, 5/16 LIGHT LOCK

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5023216SM

NUT, 5/16-24 JAM

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, only 3 left!

0

11

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 5023488SM

BATTERY CABLE, POSITIVE, 22

$29.99

$

Usually ships in 2-12 days

0

14

Simplicity 1665238SM

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB

$12.99

$

In Stock, Qty 20+

0

15

Simplicity 5021500SM

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

16

Simplicity 5101935YP

FUSE, ATO 15 AMP

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 5100716YP

GROMMET, 2" ID

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 5050927X18YP

WIRE LOOM, 3/8 ID X 18 IN

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 5100541YP

SEAT SWITCH, MILSCO, TWIST-IN

Note: (SV)

$22.99

$

In Stock, only 2 left!

0

20

Simplicity 5100540YP

SEAT SWITCH, MILSCO, BOLT-IN

Note: (SV)

$34.99

$

In Stock, only 2 left!

0

21

Simplicity 5021030SM

TIE, SELF-LOCKING, 6"

Note: (Secures wire harness to wire carrier rod).

$2.99

$

In Stock, only 2 left!

0
