5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton EVAP Canister Group - S/N: 2016816349 & Below (5303153) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

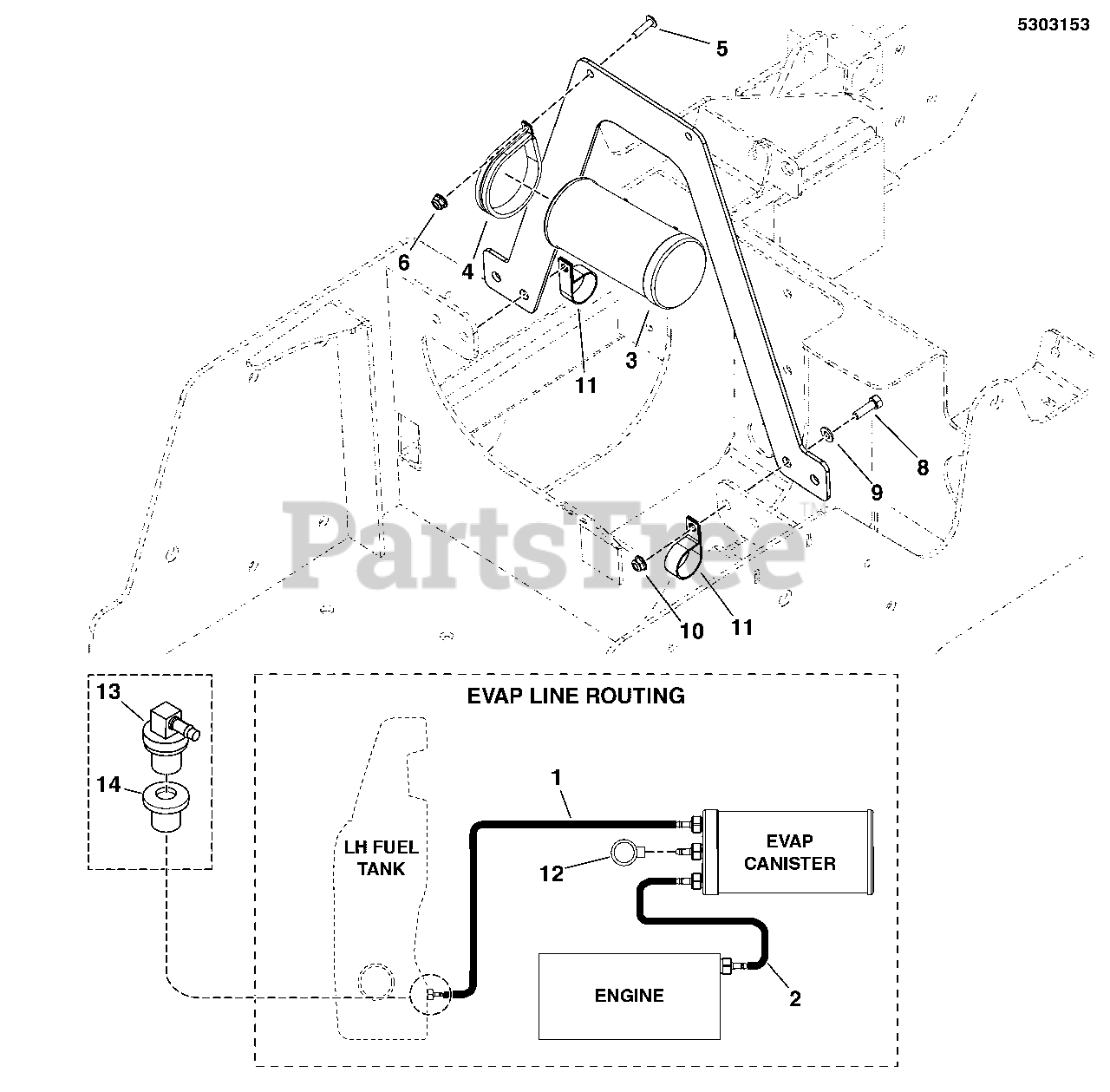

EVAP Canister Group - S/N: 2016816349 & Below (5303153) Parts Diagram

  • Title

1

Simplicity 7700552X23YP

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X32YP)

$9.99

$

Usually ships in 2-12 days

0

2

Simplicity 7700552X33P5YP

HOSE, VAPOR, 5MM ID, 33.50 LG

$9.99

$

Usually ships in 2-12 days

0

3

Simplicity 313036GS

CNSTR, CARB, 6 GAL

$217.99

$

Usually ships in 2-12 days

0

4

Simplicity 5103055YP

CLAMP, 3" ID, CUSHIONED, STAINLESS

$7.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025299X6SM

SCREW, 1/4-20 X 3/4 ALLEN BH

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 5410252AYP

PLATE, MOUNT, CANISTER, IS600 - BLK

$14.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

9

Simplicity 703302

WASHER, 5/16

Note: (5025155)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

Note: (5025392)

$3.49

$

In Stock, Qty 7

0

11

Simplicity 5025558YP

CLAMP, TUBE & WIRING, 1.062 ID

Note: (Briggs & Stratton Models)

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1752800YP

DUST FILTER, CANISTER

Note: (SV)

$15.99

$

Usually ships in 2-12 days

0

13

Simplicity 7104638YP

ASSEMBLY, REMOTE VENT - NO VALVE

Note: (SV)

$

$

Not available

14

Simplicity 799624

GROMMET

Note: (SV)(209043)

$8.99

$

Usually ships in 2-12 days

0
