5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton Parking Brake Group (5303144) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

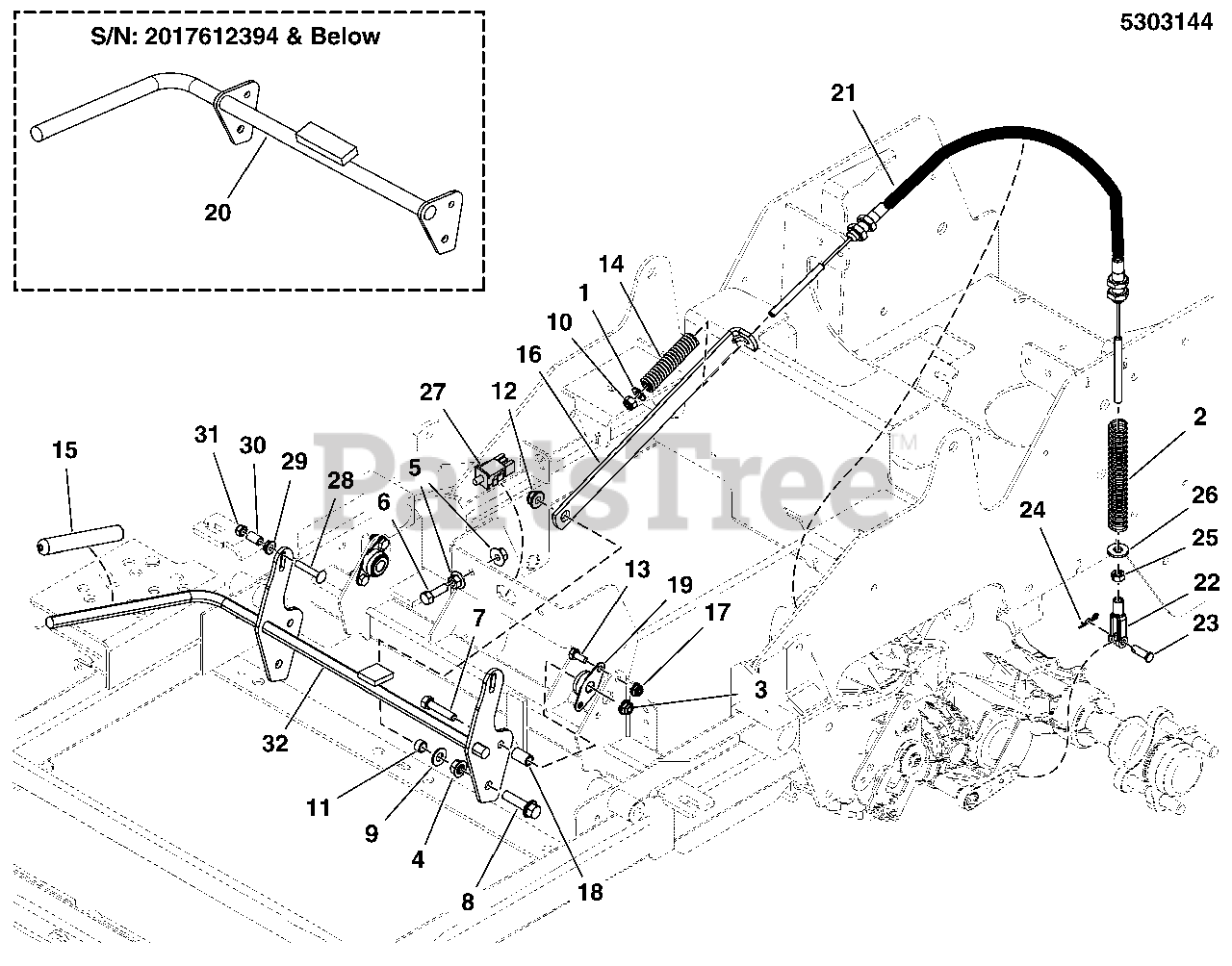

Parking Brake Group (5303144) Parts Diagram

  • Title

1

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 5021494SM

SPRING, COMPRESSION, 5-1/2

$13.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

4

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

6

Simplicity 5025011X9SM

BOLT, 5/16-18 X 1-1/8 GD5

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X12SM

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025055X12SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025390X12YP

BOLT, 3/8-16 x 1-1/2, FLANGE, GD 5, CZ

$2.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

10

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 7

0

11

Simplicity 5041930SM

SPACER, .38 X .50 X .27, CZ

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023242SM

SPRING-COMP, .496ID X 3.00LG X .112WR

$6.99

$

In Stock, only 1 left!

0

15

Simplicity 5021880SM

GRIP, FOAM, .475 X 4.35 X .095

$5.99

$

In Stock, only 1 left!

0

16

Simplicity 5410328AYP

LINK, BRAKE LOCK, IS700 - BLK

$13.99

$

Usually ships in 2-12 days

0

17

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 5103660YP

SPACER, .32 X .50 X .83, CZ

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 5101123SM

BEARING, 1/2 FLANGED, PLASTIC BALL

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 5410216AYP

WELD, BRAKE SHAFT, IS600 - BLK

Note: (S/N: 2017612394 & Below)

$55.99

$

Usually ships in 2-12 days

0

21

Simplicity 5104276YP

CABLE, PARKING BRAKE, 31" (787.9 MM)

$62.99

$

Usually ships in 2-12 days

0

22

Simplicity 5100301SM

CLEVIS, 5/16-18, 5/16 PIN HOLE, STEEL

$

$

Not available

23

Simplicity 5025213X8SM

PIN-CLEVIS, 5/16 X 1 YZ

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 5025211SM

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 5025032SM

NUT, 5/16-18 HEX

$3.49

$

In Stock, only 1 left!

0

26

Simplicity 5025337SM

WASHER, 5/16 USS
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

28

Simplicity 704214

BOLT, 1/4-20 X 1.500, GR5, SQ, ZINC/CLEAR

Note: (S/N: 2017612395 & Above)

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 703233

NUT, 1/4-20 HEX SERR. FLANGE

Note: (S/N: 2017612395 & Above)

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 5041483YP

SPACER, .52 X .38 X .63, CZ

Note: (S/N: 2017612395 & Above)

$5.49

$

Usually ships in 2-12 days

0

31

Simplicity 5025095SM

NUT, 1/4-20 HEX NYLON LOCK

Note: (S/N: 2017612395 & Above)

$3.49

$

In Stock, Qty 11

0

32

Simplicity 5415910AYP

WELD, BRAKE SHAFT - BLK

Note: (S/N: 2017612395 & Above)

$86.99

$

Usually ships in 2-12 days

0
