5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton Rear Suspension Group (5303252) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

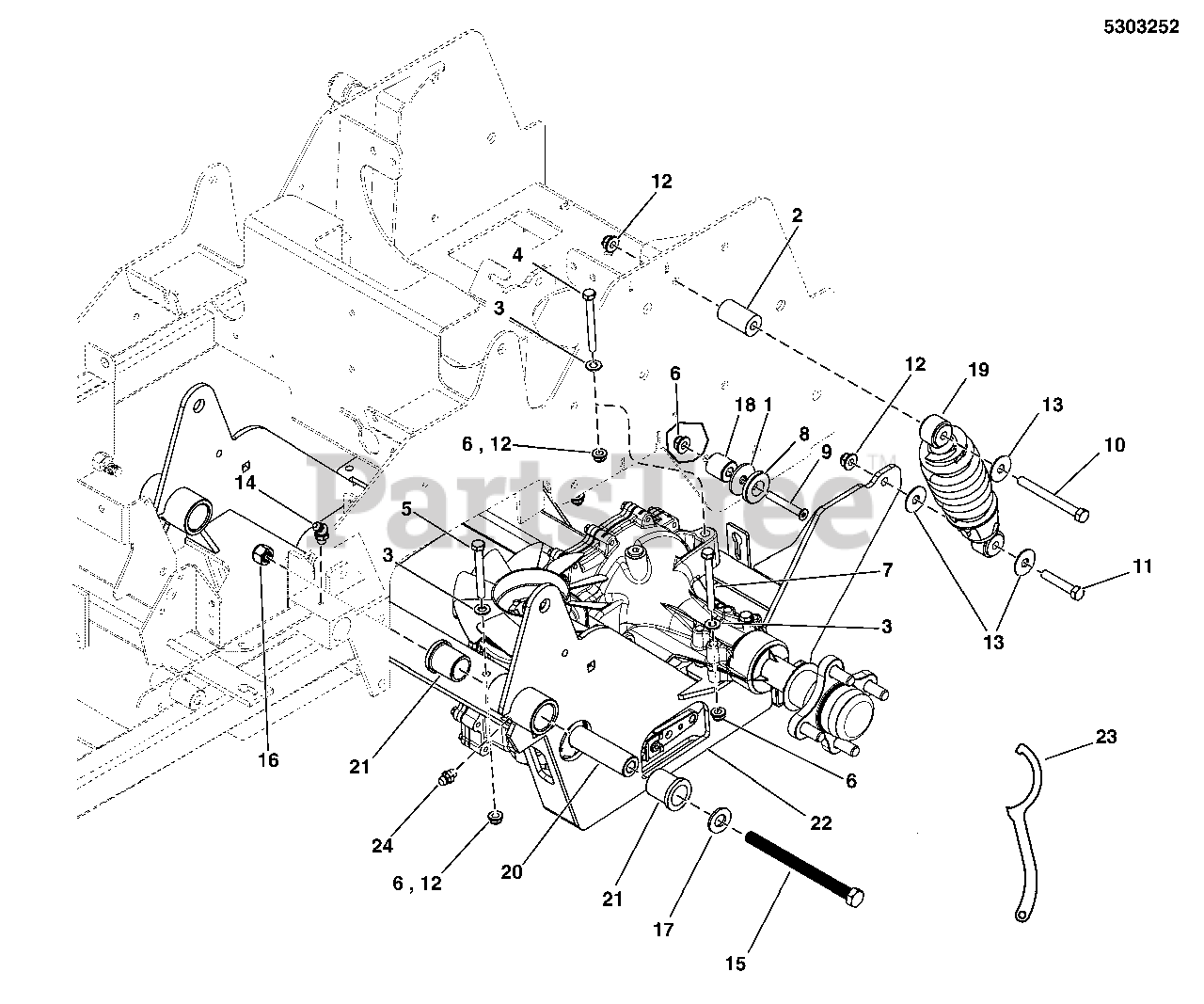

Rear Suspension Group (5303252) Parts Diagram

  • Title

1

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 5100896SM

SPACER, .390 X 1.00 X 1.00, CZ

$8.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

Note: (QTY: 8 - S/N: 2016905168 & Below)

$4.49

$

In Stock, only 4 left!

0

3

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

Note: (S/N: 2016905169 & Above)

$3.99

$

In Stock, Qty 9

0

4

Simplicity 5025011X20SM

BOLT, 5/16-18 X 2-1/2 GD5 YZ
(Superseded to 703868)

Note: (S/N: 2016905168 & Below)

$4.99

$

In Stock, only 3 left!

0

4

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2 GD5
(Superseded to 84007037)

Note: (S/N: 2016905169 & Above)

$2.99

$

In Stock, only 3 left!

0

5

Simplicity 5025011X22YP

BOLT, 5/16-18 X 2-3/4, GD 5, YZ
(Superseded to 703869)

Note: (S/N: 2016905168 & Below)

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X22SM

BOLT, 3/8-16 X 2-3/4 GD5

Note: (S/N: 2016905169 & Above)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

Note: (QTY: 10 - S/N: 2016905168 & Below)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 5025011X24SM

BOLT, 5/16-18 X 3 GD5 YZ

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 5102701YP

SPACER, .34 X 1.54 X .25 - UHMW

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 5025303X12YP

SCREW, 5/16-18X1.5

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3 GD5 CZ

$4.49

$

In Stock, Qty 5

0

11

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 YZ
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

Note: (QTY: 8 - S/N: 2016905168 & Below)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025165SM

WASHER-3/8 FENDER

$4.49

$

In Stock, Qty 12

0

14

Simplicity 5020020SM

GREASE FITTING, 45 DEGREE

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025488X52YP

BOLT, 1/2-13 X 6-1/2 GD8, YZ
(Superseded to 5025017X52SM)

$10.99

$

In Stock, Qty 8

0

16

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, only 4 left!

0

17

Simplicity 5025158SM

WASHER, 1/2 SAE

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 5046860SM

SPACER, .39 X 1.00 X .50, CZ

$6.99

$

In Stock, only 2 left!

0

19

Simplicity 5103624YP

SHOCK ABSORBER, IS600

$232.99

$

In Stock, only 2 left!

0

20

Simplicity 5061339SM

SPACER, .52 X 1.00 X 3.42

$14.99

$

Usually ships in 2-12 days

0

21

Simplicity 5021541SM

BUSHING, FLANGE

$10.99

$

In Stock, Qty 20+

0

22

Simplicity 5408633CYP

WELD, SUSPENSION CRADLE, IS600 - ORG

$710.99

$

Usually ships in 2-12 days

0

23

Simplicity 5022853SM

WRENCH, SPANNER, CZ

$16.99

$

Usually ships in 2-12 days

0

24

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$4.49

$

Usually ships in 2-12 days

0
