5901258 - Simplicity Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton Transaxle Drive Group (5303213) Parts Diagram

Champion XT 48" Zero-Turn Mower, 25hp Briggs & Stratton

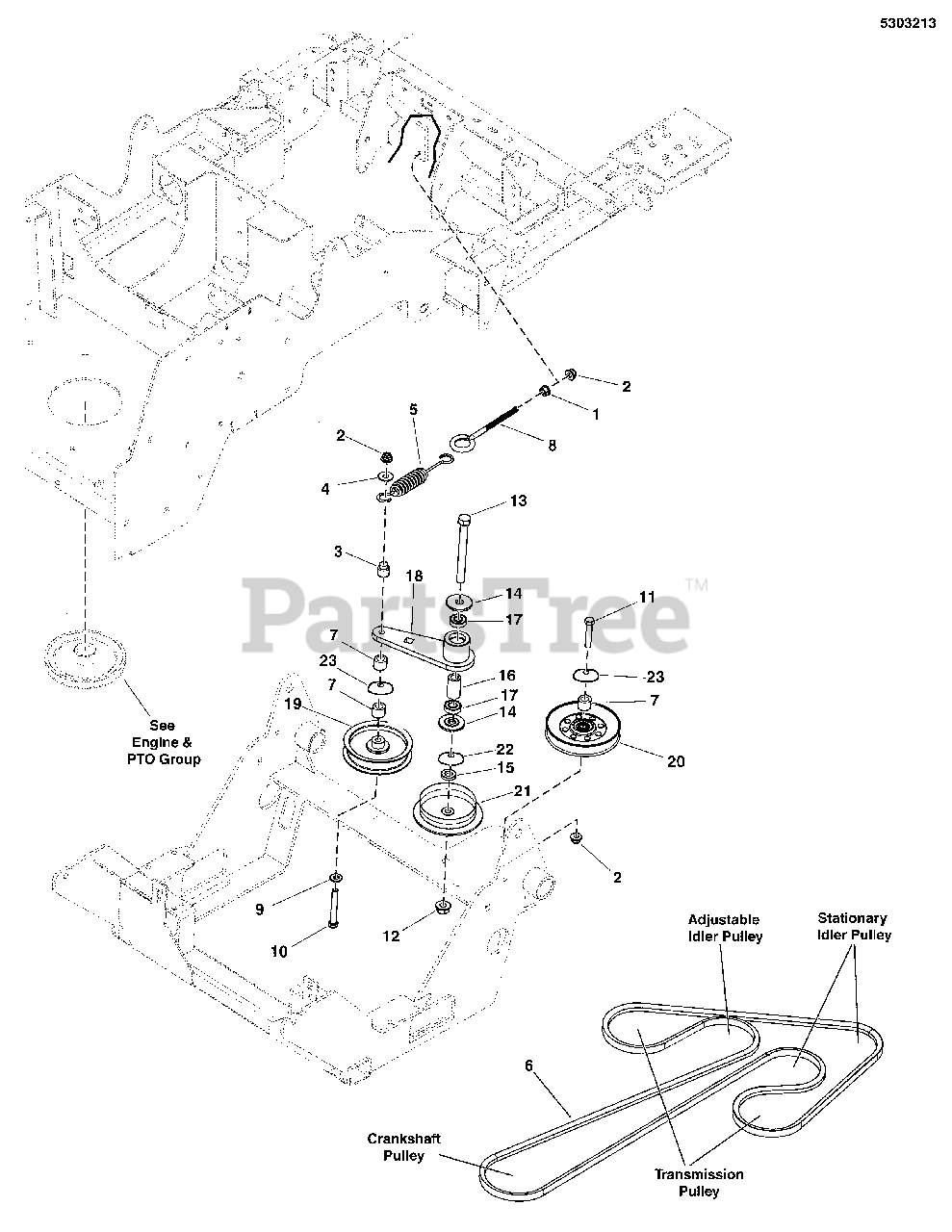

Transaxle Drive Group (5303213) Parts Diagram

  • Title

1

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 5020923YP

SPACER, SHOULDER

$5.99

$

In Stock, only 1 left!

0

4

Simplicity 5025401YP

WASHER, 3/8 USS

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 5100632YP

SPRING-EXT, 1.25OD X 9.3LG X .142WR, BLK

Note: (coil-to-coil measurement: 5")

$38.99

$

Usually ships in 2-12 days

0

6

Simplicity 5103885YP

BELT, A-SEC, 117.24"EL, WRAPPED, ARAMID

$84.99

$

In Stock, only 1 left!

0

7

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, only 4 left!

0

8

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5,2.88THRD, 1 EYE

$9.49

$

In Stock, only 1 left!

0

9

Simplicity 5025293SM

WASHER 3/8" GD9

$3.99

$

In Stock, Qty 7

0

10

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3 GD5 YZ

$3.99

$

In Stock, Qty 5

0

11

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4 GD5 YZ

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 2 left!

0

13

Simplicity 5025017X40SM

BOLT-1/2-13 X 5 GD5 YZ

$6.49

$

In Stock, Qty 6

0

14

Simplicity 5103262YP

SPACER, IDLER ARM, 1/2"

$7.99

$

In Stock, Qty 5

0

15

Simplicity 5100520SM

SPACER, .52 X 1.00 X .22, CZ

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 5103812YP

SPACER, .52 X .84 X 1.53, PM

$7.99

$

In Stock, only 2 left!

0

17

Simplicity 7078243YP

BEARING, BALL, AXLE

$10.99

$

In Stock, Qty 6

0

18

Simplicity 5409891AYP

WELD, ARM, PUMP DRIVE IDLER - BLK

$72.99

$

Usually ships in 2-12 days

0

19

Simplicity 5103788YP

PULLEY, IDLER-V, 4.0 X .38, STL

$57.99

$

Usually ships in 2-12 days

0

20

Simplicity 5103717YP

PULLEY-IDLER-V, 4.85OB, .38ID, .94W,STL

$48.99

$

In Stock, only 1 left!

0

21

Simplicity 5103618YP

PULLEY, IDLER, SINGLE FLG 4"OD X 1/2"ID

$40.99

$

In Stock, only 1 left!

0

22

Simplicity 5101103SM

SHIELD, PULLEY BEARING

$10.99

$

Usually ships in 2-12 days

0

23

Simplicity 5103787YP

SHIELD, BEARING PULLEY, 3/8ID

$7.49

$

In Stock, only 1 left!

0
