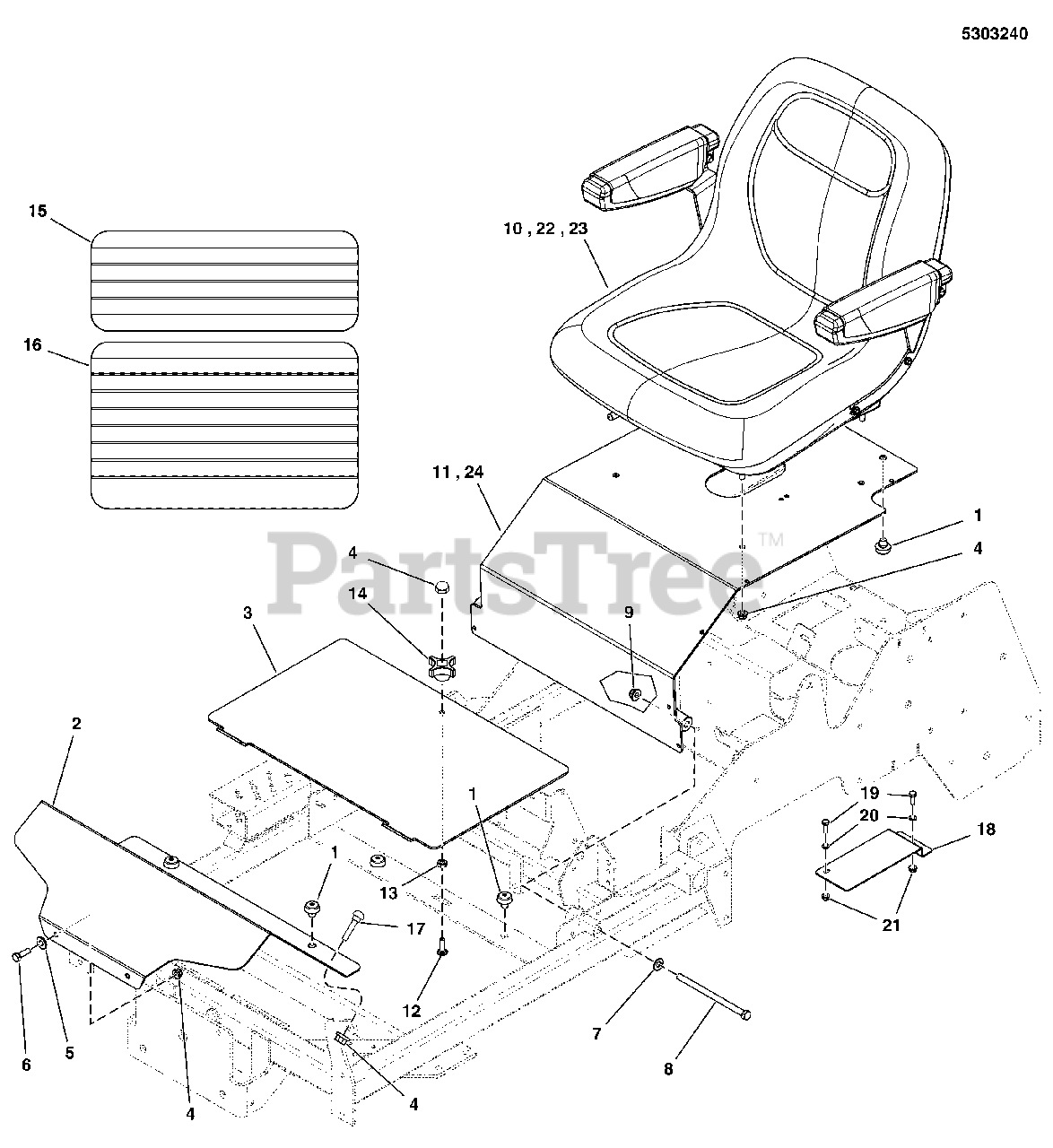

5901267 - Simplicity Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton Seat Mount & Floor Group (5303240) Parts Diagram

Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton

Seat Mount & Floor Group (5303240) Parts Diagram

  • Title

1

Simplicity 197546GS

MNT, VBRTN, RBBR

$8.49

$

In Stock, Qty 5

0

2

Simplicity 5410297CYP

PLATE, FLOOR, RIDGID, IS700 - ORG

$110.99

$

Usually ships in 2-12 days

0

3

Simplicity 5410296CYP

PLATE, FLOOR, REMOVABLE, IS700 - ORG

$71.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

6

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

7

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 15

0

8

Simplicity 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 YZ

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5061599SM

SEAT, XB-180, NO LOGO, BLACK

Note: (S/N: 2017202281 & Below)

$788.99

$

Usually ships in 2-12 days

0

11

Simplicity 5600651YP

ASSM, SEAT PLATE W/DECALS - CIT XT (5409985C)

Note: (S/N: 2017612394 & Below)

$362.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025145X10SM

BOLT, 5/16-18 X 1-1/4, CARRIAGE YZ

$

$

Not available

13

Simplicity 703164

NUT, 5/16-18,GR8, HEX, CNTR LK, ZINC/CL

Note: (80003675)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1670578SM

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG

$14.99

$

In Stock, only 4 left!

0

15

Simplicity 5101374YP

SAFETY WALK, FLOOR REST, 6.00 X 16.00

$19.99

$

In Stock, only 1 left!

0

16

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X16

$39.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 5410611AYP

PLATE, SEAT BELT GUARD, IS700 - BLK

$15.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025299X8YP

SCREW, 1/4-20 X 1, ALLEN BH, CZ

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 5104741YP

SEAT, 907 SEAT INC

Note: (S/N: 2017202282 - 2017612394)

$517.99

$

Usually ships in 2-12 days

0

23

Simplicity 5105039

SEAT, 907 WITH ARM RESTS W/SWITCH
(Superseded to 84003662)

Note: (S/N: 2017612395 & Above)

$796.99

$

Usually ships in 2-12 days

0

24

Simplicity 5600990YP

ASSM, SEAT PLATE W/DECAL (5416034C)

Note: (S/N: 2017612395 & Above)

$519.99

$

Usually ships in 2-12 days

0
