5901269 - Simplicity Champion 2550 Series 50" Zero-Turn Mower, 25hp Evap Canister Group Parts Diagram

Champion 2550 Series 50" Zero-Turn Mower, 25hp

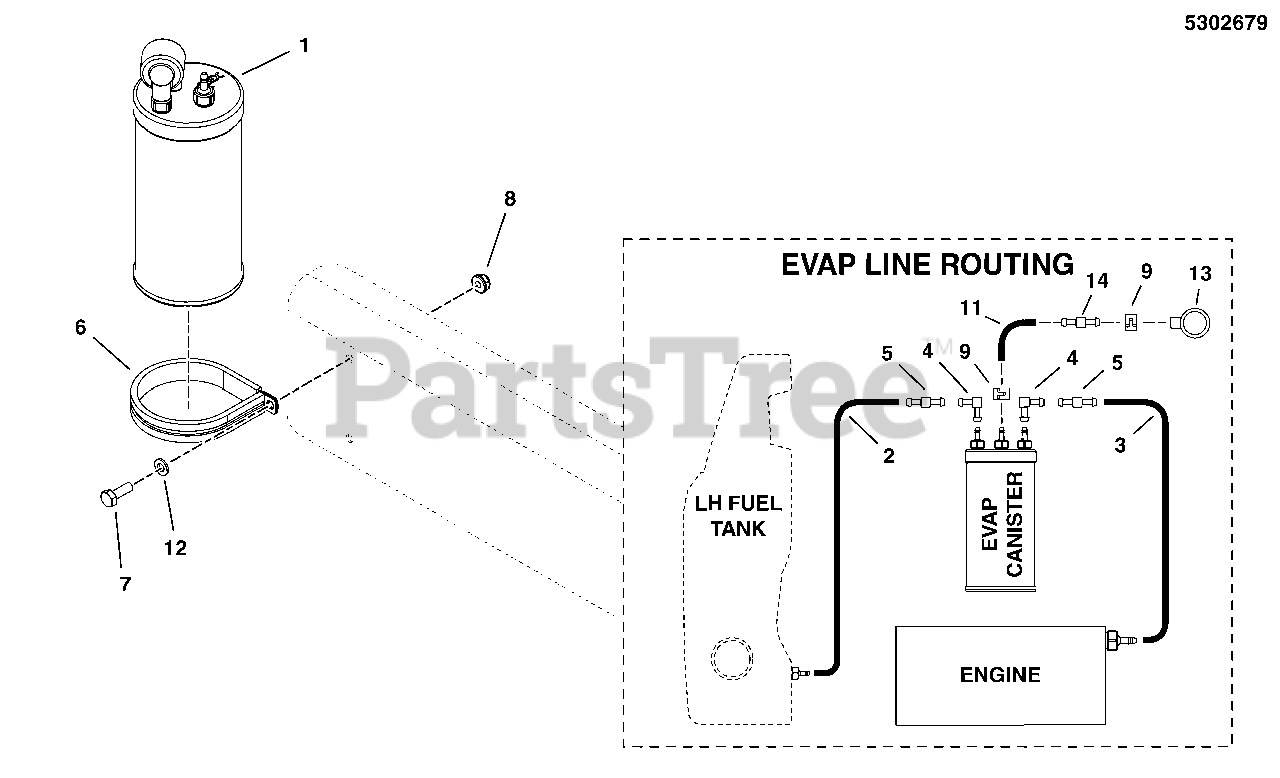

Evap Canister Group Parts Diagram

  • Title

1

Simplicity 313036SM

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$231.99

$

Usually ships in 2-12 days

0

2

Simplicity 7700552X26SM

HOSE, VAPOR, 5MM ID, 26.00 LG
(Superseded to 7700552X32YP)

$10.99

$

In Stock, only 2 left!

0

3

Simplicity 7700552X11P5SM

HOSE, VAPOR, 5MM ID, 11.50 LG
(Superseded to 7700552X11P5YP)

$7.49

$

Usually ships in 2-12 days

0

4

Simplicity 5103082SM

FITTING, 90 DEG, 3/16X3/16, SANTOPRENE
(Superseded to 5103082YP)

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 5103084SM

FITTING, STRAIGHT, 3/16X3/16, PLASTIC
(Superseded to 5103084YP)

$11.99

$

In Stock, only 2 left!

0

6

Simplicity 5103055SM

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 5025299X6SM

BOLT, 1/4-20 X 3/4, ALLEN BUTTON HD, YZ
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 5023268SM

CLAMP, HOSE

$3.49

$

Usually ships in 2-12 days

0

10

DECAL, EPA CERT, ZTRS

Note: (Located on frame near Serial Tag)

$

$

Not available

11

Simplicity 5103092SM

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

$35.99

$

In Stock, only 1 left!

0

12

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1752800SM

DUST FILTER, CANISTER
(Superseded to 1752800YP)

$15.99

$

In Stock, only 2 left!

0

14

Simplicity 5103080YP

FITTING, STRAIGHT, 10MMX10MM, PLASTIC

$3.49

$

Usually ships in 2-12 days

0
