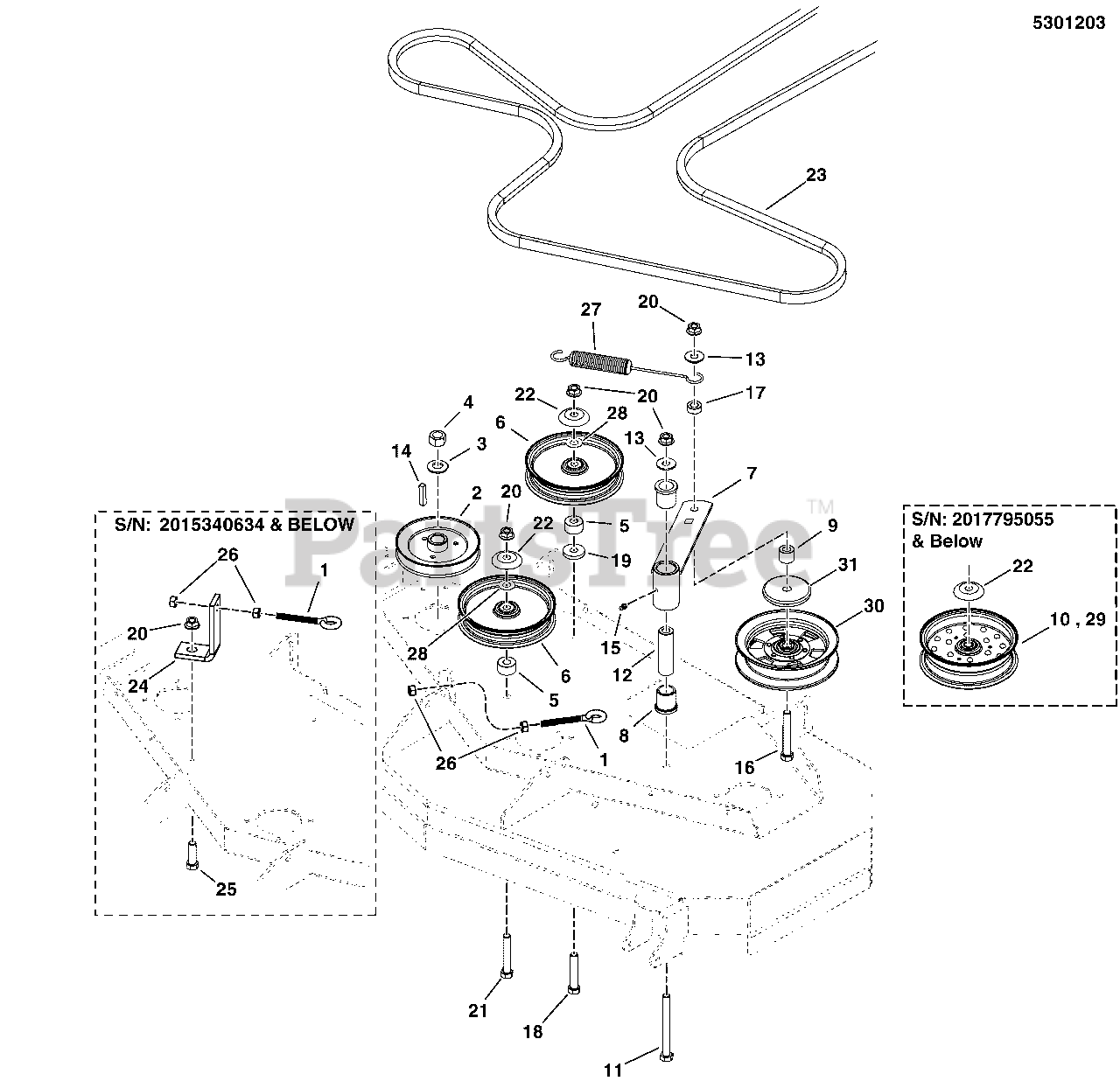

5901276 - Massey Ferguson 2900 Series 48" Zero-Turn Mower 48" Mower Deck - Pulleys, Belt & Idler Arm (5301203) Parts Diagram

2900 Series 48" Zero-Turn Mower

48" Mower Deck - Pulleys, Belt & Idler Arm (5301203) Parts Diagram

  • Title

1

Simplicity 5025429SM

EYE BOLT, 3/8-16 X 4, 2.13THRD, 1 EYE,CZ

$6.99

$

Usually ships in 2-12 days

0

2

Simplicity 5023175SM

PULLEY, 5.540OB X 3985ID, SINGLE B-SEC (48" Deck, S/N: 534 & above)

$68.99

$

In Stock, only 2 left!

0

3

Simplicity 5025406SM

WASHER, 3/4" Belleville (Included with Complete Spindle Assembly)
(Superseded to 770223)

$4.49

$

In Stock, only 2 left!

0

4

Simplicity 5025405SM

NUT, 3/4-16 Hex (Included with Complete Spindle Assembly)

$3.99

$

In Stock, Qty 8

0

5

Simplicity 5047142SM

SPACER, .52 X 1.25 X .70, PM, CZ

$9.49

$

In Stock, only 1 left!

0

6

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

Usually ships in 2-12 days

0

7

Simplicity 5407343YP

ASSM, IDLER ARM - BLK - 5407039A (SV)

Note: (Includes bushings and grease fittings.)

$

$

Not available

8

Simplicity 5021541SM

BUSHING, FLANGE

$10.99

$

In Stock, Qty 20+

0

9

Simplicity 5044673SM

SPACER, .52 X 1.00 X .88, PM, CZ

$9.49

$

In Stock, only 2 left!

0

10

Simplicity 5100529SM

PULLEY, IDLER, 6.75 OD X 1.62 FACE

Note: (S/N: 2017576822 & Below)

$81.99

$

In Stock, only 4 left!

0

11

Simplicity 5025017X40SM

BOLT, 1/2-13 X 5" GD5 YZ

$6.49

$

In Stock, Qty 20+

0

12

Simplicity 5045022SM

SPACER, .52 X 1.00 X 3.50

$25.99

$

In Stock, only 3 left!

0

13

Simplicity 5025150SM

WASHER, 1/2" USS

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$4.49

$

In Stock, Qty 12

0

15

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025017X28SM

CAPSCREW, Hex Hd, 1/2-13 x 3-1/2

$5.99

$

In Stock, only 4 left!

0

17

Simplicity 5045023SM

SPACER, .52 X 1.00 X .44, CZ

$6.49

$

In Stock, only 3 left!

0

18

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 YZ

$5.99

$

In Stock, only 4 left!

0

19

Simplicity 5044913SM

WASHER, .53 X 1.50 X .25

$6.99

$

In Stock, Qty 9

0

20

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 5025017X20SM

BOLT, 1/2-13 X 2-1/2 GD5 YZ

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 5101103SM

SHIELD, PULLEY BEARING, CZ

Note: (Qty: 3 - S/N: 2017576822 & Below)

$10.99

$

In Stock, Qty 19

0

23

Simplicity 5104064YP

BELT, 5V, 145.40"EL, LRG ARAMID, WRP, RC

$114.99

$

In Stock, Qty 8

0

24

Simplicity 5404088AYP

BRACKET, EYEBOLT MOUNT - BLK

Note: (S/N: 2016156895 & Below)

$9.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025017X12YP

BOLT, 1/2-13 X 1-1/2 GD5 YZ
(Superseded to 703571)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 5025032SM

NUT, Hex, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 5023340SM

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK

$38.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025158SM

WASHER, 1/2

$4.49

$

In Stock, Qty 20+

0

29

PULLEY, DEEP V-IDLER, 6.25"OD X 1/2"ID

Note: (S/N: 2017576823 - 2017795055)

$

$

Not available

30

Simplicity 5104716YP

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID

Note: (S/N: 2017795056 & Above)

$60.99

$

In Stock, only 1 left!

0

31

Snapper 5105145YP

SHIELD, BEARING, 1/2ID X 2-7/8 OD, CZ

Note: (S/N: 2017795056 & Above)

$4.49

$

Usually ships in 2-12 days

0
