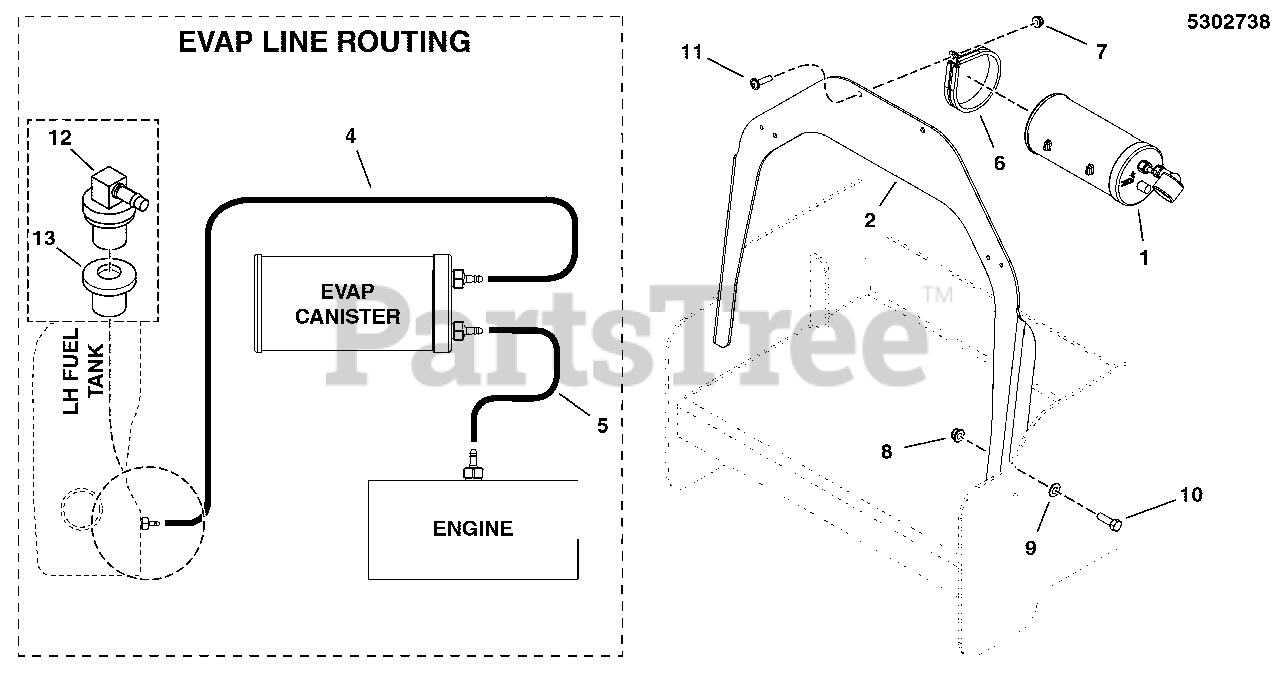

5901276 - Massey Ferguson 2900 Series 48" Zero-Turn Mower Evap Canister Group - S/N: 2016816349 & Below (5302738) Parts Diagram

2900 Series 48" Zero-Turn Mower

Evap Canister Group - S/N: 2016816349 & Below (5302738) Parts Diagram

  • Title

1

Simplicity 313036GS

CNSTR, CARB, 6 GAL

$231.99

$

Usually ships in 2-12 days

0

2

Simplicity 5408222AYP

BRACKET, CARB CANISTER, S50X - BLK

$51.99

$

Usually ships in 2-12 days

0

3

DECAL, EPA CERT, ZTRS

Note: (Located on frame near Serial Tag)

$

$

Not available

4

Simplicity 7700552X29P5YP

HOSE, VAPOR, 5MM ID, 29.50 LG
(Superseded to 7700552X32YP)

$10.99

$

In Stock, only 2 left!

0

5

Simplicity 7700552X36P5YP

HOSE, VAPOR, 5MM ID, 36.50 LG
(Superseded to 315826GS)

$

$

Not available

6

Simplicity 5103055YP

CLAMP, 3" ID, CUSHIONED, STAINLESS

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

8

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

10

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

11

Simplicity 5025299X6SM

SCREW, 1/4-20 X 3/4 ALLEN BH
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 7104638YP

REMOTE VENT ASSEMBLY, NO VALVE (SV)

$

$

Not available

13

Simplicity 799624

GROMMET (209043)(SV)

$9.49

$

Usually ships in 2-12 days

0
