5901276 - Massey Ferguson 2900 Series 48" Zero-Turn Mower Parking Brake Group (5302149) Parts Diagram

2900 Series 48" Zero-Turn Mower

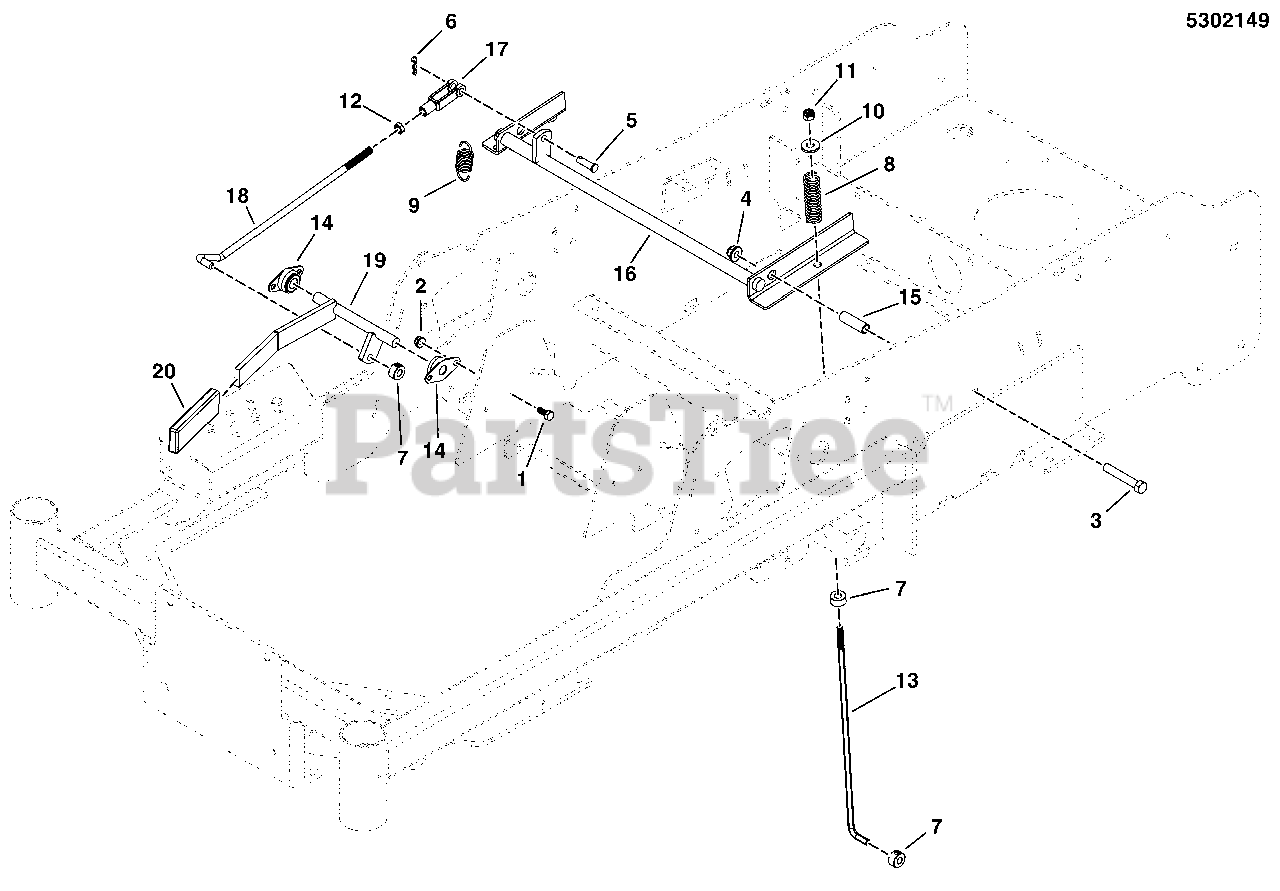

Parking Brake Group (5302149) Parts Diagram

  • Title

1

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4 GD5 YZ

$4.49

$

In Stock, Qty 5

0

4

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5025213X8SM

PIN, CLEVIS, 5/16 X 1 YZ

$4.99

$

In Stock, only 1 left!

0

6

Simplicity 5025211SM

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5020047SM

COLLAR, 5/16" SET

$7.99

$

In Stock, only 3 left!

0

8

Simplicity 5021102SM

SPRING, COMPRESSION

$7.99

$

Usually ships in 2-12 days

0

9

Simplicity 5010213YP

SPRING; CLUTCH HANDLE

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025337SM

WASHER, 5/16 USS
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 15

0

12

Simplicity 5023216SM

NUT, 5/16-24 JAM

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 5101058SM

ROD, BRAKE CTRL, LOWER - CONZ

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 5101123SM

BEARING, 1/2" FLANGED

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 5044992SM

SPACER, .38 X .50 X 1.56

$6.49

$

In Stock, only 2 left!

0

16

Simplicity 5402914AYP

WELD, BRAKE SHAFT - BLK

$113.99

$

Usually ships in 2-12 days

0

17

Simplicity 5023323SM

CLEVIS, 5/16-24, STEEL

$9.49

$

Usually ships in 2-12 days

0

18

Simplicity 5101116SM

ROD, PULLER ROD

$17.99

$

Usually ships in 2-12 days

0

19

Simplicity 5406620AYP

WELD, BRAKE SHAFT, HANDLE - BLK

$54.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025510SM

GRIP, FOAM, 1/4" X 1

$6.99

$

In Stock, Qty 8

0
