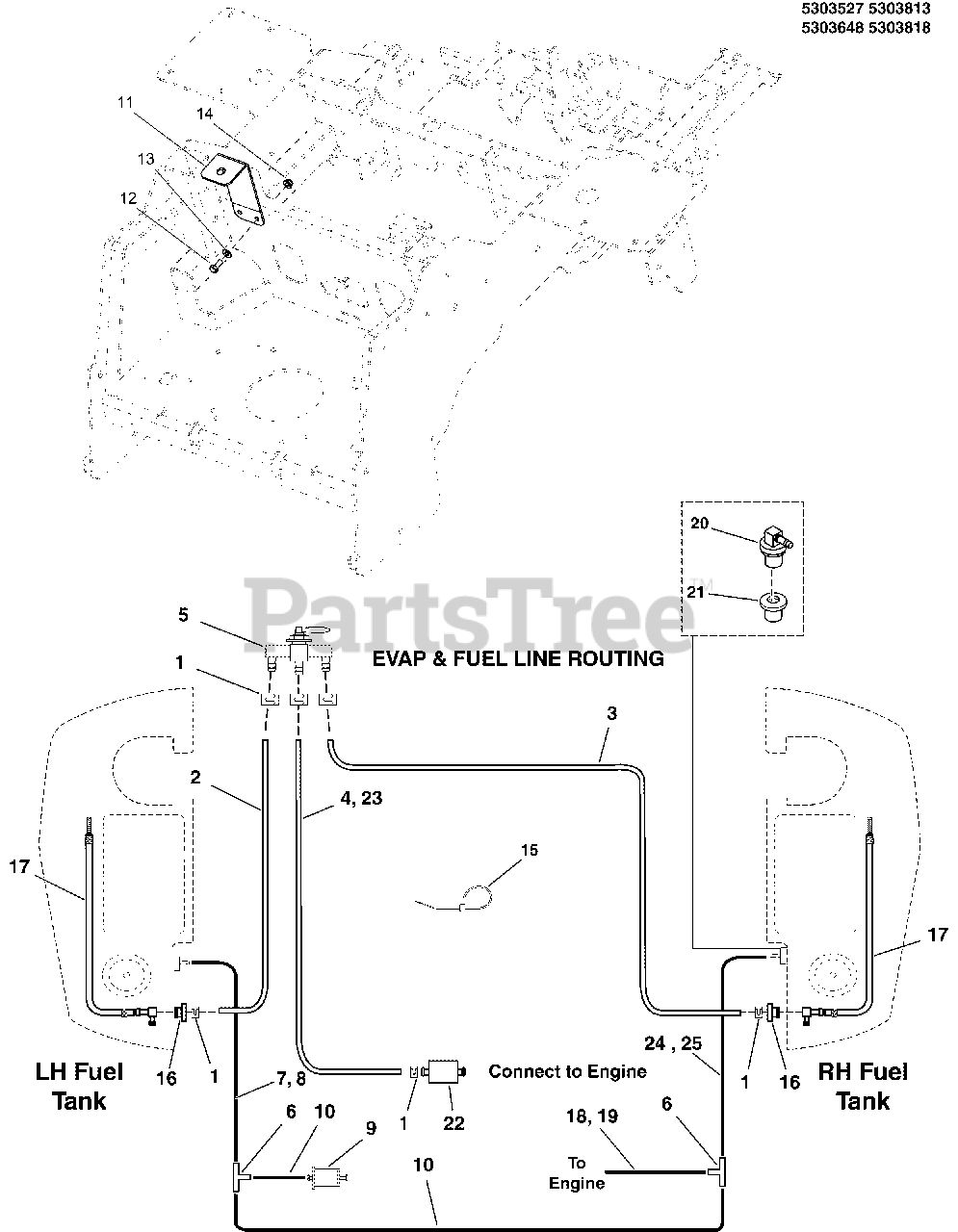

5901339 - Simplicity Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton Fuel Supply Hose, Tank Replacement Parts, & Evap Canister Group (5303527_818) Parts Diagram

Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton

Fuel Supply Hose, Tank Replacement Parts, & Evap Canister Group (5303527_818) Parts Diagram

  • Title

1

Simplicity 5020835SM

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 5050831X11YP

HOSE, 1/4" FUEL, 11.00"

$

$

Not available

3

Simplicity 5050831X27SM

HOSE, 1/4" FUEL, 27.00"

$17.99

$

Usually ships in 2-12 days

0

4

Simplicity 5050831X19P5YP

HOSE, 1/4" FUEL, 19.50"

Note: (Briggs & Stratton 49R977 & 49E877)

$

$

Not available

5

Simplicity 5023358SM

VALVE, FUEL SHUT-OFF, 11772

$51.99

$

In Stock, only 3 left!

0

6

Simplicity 5103062YP

FITTING, 3/16" TEE, BARB TYPE, HDPE

$10.99

$

In Stock, only 2 left!

0

7

Simplicity 7700552X15P5YP

HOSE, VAPOR, 5MM ID, 15.50 LG

Note: (Briggs & Stratton 49R977 & 49E877)

$

$

Not available

8

Simplicity 7700552X23YP

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X32YP)

Note: (Briggs & Stratton 49R977 & 49E877)

$10.99

$

In Stock, only 2 left!

0

9

Simplicity 691035

FILTER, FUEL
(Superseded to 84001895)

Note: (794079)

$7.99

$

In Stock, Qty 20+

0

10

Simplicity 7700552X6YP

HOSE, VAPOR, 5MM ID, 6.00 LG

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5412704AYP

BRACKET, FUEL VALVE, IS2100 - BLK

$25.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 5021030SM

TIE,SELF-LOCKING, 6"

$2.99

$

In Stock, only 2 left!

0

16

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

17

Simplicity 5101144SM

HOSE ASSEMBLY (SV)

$37.99

$

In Stock, only 1 left!

0

18

Simplicity 7700552X13P5YP

HOSE, VAPOR, 5MM ID, 13.50 LG

Note: (Briggs & Stratton 49R977 & 49E877)

$

$

Not available

19

Simplicity 7700552X16YP

HOSE, VAPOR, 5MM ID, 16.00 LG
(Superseded to 7700552X22YP)

Note: (Briggs & Stratton 543777)

$9.49

$

In Stock, only 2 left!

0

20

Simplicity 7104638YP

REMOTE, VENT ASSEMBLY, NO VALVE (SV)

$

$

Not available

21

Simplicity 799624

GROMMET (SV)

Note: (209043)

$9.49

$

In Stock, only 4 left!

0

22

Simplicity 5021178X3SM

FUEL FILTER (SV)

$

$

Not available

23

Simplicity 5050831X10YP

HOSE, 1/4" FUEL, 10.00"

Note: (Briggs & Stratton 543777)

$

$

Not available

24

Simplicity 7700552X15P5YP

HOSE, VAPOR, 5MM ID, 15.50 LG

Note: (Briggs & Stratton 543777)

$

$

Not available

25

Simplicity 7700552X23YP

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X32YP)

Note: (Briggs & Stratton 543777)

$10.99

$

In Stock, only 2 left!

0
