5901460 - Simplicity 61" Mower Deck 61" Mower Deck - Pulleys, Belt, & Idler Arm (5300638MF) Parts Diagram

61" Mower Deck

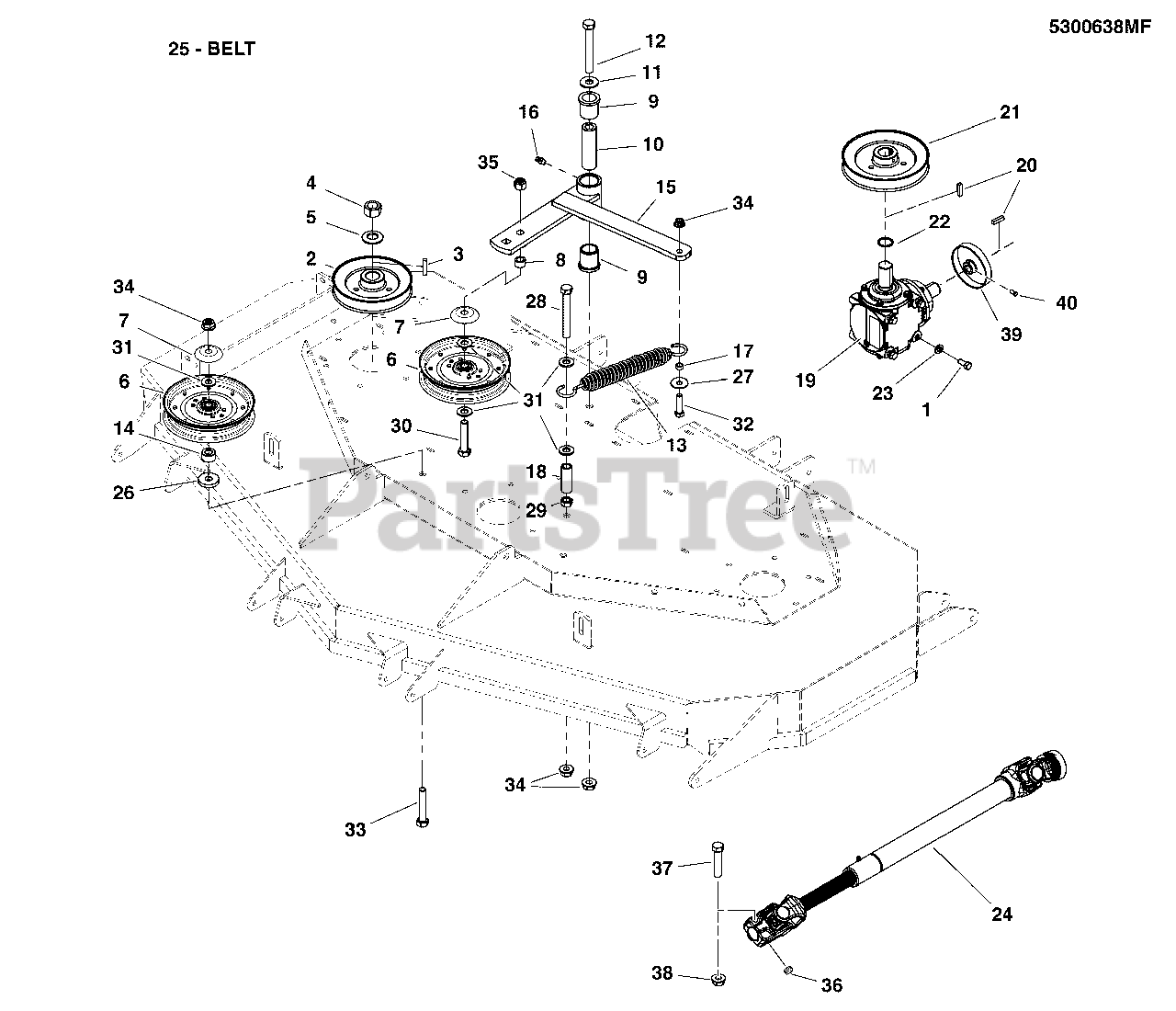

61" Mower Deck - Pulleys, Belt, & Idler Arm (5300638MF) Parts Diagram

  • Title

1

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5023175SM

PULLEY, 5.540OB X 3985ID, SINGLE B-SEC

$67.99

$

Usually ships in 2-12 days

0

3

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025406SM

WASHER, 3/4 BELLEVILLE
(Superseded to 770223)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 5025405SM

NUT, 3/4-16 HEX

$3.99

$

In Stock, only 1 left!

0

6

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$54.99

$

In Stock, Qty 6

0

7

Simplicity 5101103SM

SHIELD, PULLEY BEARING

$10.99

$

In Stock, only 2 left!

0

8

Simplicity 5101161YP

SPACER, .52 X 1.00 X .63, YZ

$8.99

$

In Stock, only 1 left!

0

9

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 11

0

10

Simplicity 5045022SM

SPACER, .52 X 1.00 X 3.50

$24.99

$

In Stock, only 1 left!

0

11

Simplicity 5025150SM

WASHER, 1/2 USS

$3.99

$

In Stock, only 3 left!

0

12

Simplicity 5025017X40SM

BOLT-1/2-13 X 5 GD5 YZ

$6.49

$

In Stock, Qty 8

0

13

Simplicity 5100633YP

SPRING, EXTENSION, SWIVEL, SHORT HOOK

$34.99

$

Usually ships in 2-12 days

0

14

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56, YZ

$7.49

$

In Stock, only 2 left!

0

15

Simplicity 5403124DYP

WELD, IDLER ARM - OUTFRONT - RED

$74.99

$

Usually ships in 2-12 days

0

16

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 5041930SM

SPACER, .38 X .50 X .27

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 5050857X2P125YP

HOSE, 1/2" PUSH-ON 2.125"

$

$

Not available

19

Simplicity 5101164YP

GEAR BOX, RIGHT ANGLE

$1481.99

$

Usually ships in 2-12 days

0

20

Simplicity 5050407X8SM

KEY, 1/4 SQ. X 1.00

$3.99

$

In Stock, only 2 left!

0

21

Simplicity 5101166YP

PULLEY, 6.25" SPLIT STEEL W/ 1" ID

$152.99

$

Usually ships in 2-12 days

0

22

Simplicity 5020864SM

SNAP RING, EXTERNAL, 1 SHAFT

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 5025170SM

WASHER, 5/16 LOCK YZ

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5101173YP

SHAFT, TELESCOPING DRIVE, OUT-FRONT

$446.99

$

Usually ships in 2-12 days

0

25

Simplicity 5021854YP

BELT, #7-3556

$118.99

$

Usually ships in 2-12 days

0

26

Simplicity 5044913SM

WASHER, .53 X 1.50 X .25

$6.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025165SM

WASHER-3/8 FENDER

$3.99

$

In Stock, only 3 left!

0

28

Simplicity 5025017X32YP

BOLT, 1/2-13 X 4 GD5 YZ

$6.49

$

In Stock, only 1 left!

0

29

Simplicity 5025301SM

NUT, 1/2-13 HEX JAM

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5025018X20SM

BOLT, 1/2-20 X 2-1/2 GD5 YZ

$6.99

$

In Stock, only 1 left!

0

31

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 5

0

32

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, only 2 left!

0

33

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5

$5.99

$

In Stock, only 1 left!

0

34

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

35

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$5.99

$

Usually ships in 2-12 days

0

36

Simplicity 5025063X3YP

SET SCREW, 3/8-16 X 3/8

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, Qty 9

0

38

Simplicity 5025096SM

NUT, 3/8-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 6

0

39

Simplicity 5102465YP

GUARD, TRASH, S800X

$87.99

$

Usually ships in 2-12 days

0

40

Simplicity 5025554YP

SOC SET SCREW, 1/4-20X3/8, DRI-LOC PATCH

$7.99

$

Usually ships in 2-12 days

0
