5901462 - Simplicity Contender 52" Zero-Turn Mower, 25hp Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles, & Blades (5304316) Parts Diagram

Contender 52" Zero-Turn Mower, 25hp Briggs & Stratton

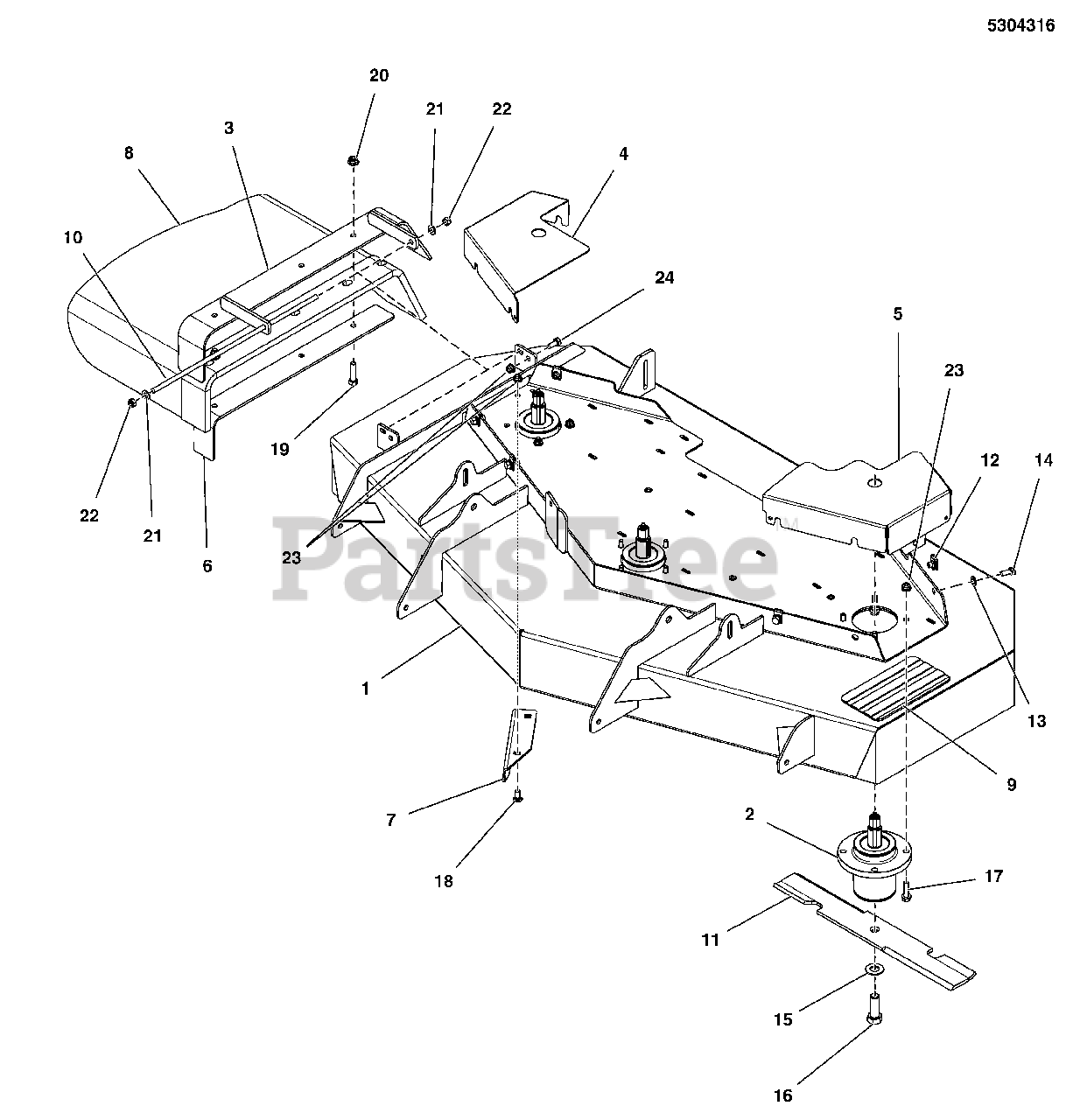

52" Mower Deck Group - Housing, Covers, Spindles, & Blades (5304316) Parts Diagram

  • Title

1

Simplicity 5600914

DECK SHELL W/DECALS,52,CNTDR,5414522C

Note: (5414522C)

$

$

Not available

2

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

$222.99

$

In Stock, only 1 left!

0

3

Simplicity 5413400AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK

$66.99

$

Usually ships in 2-12 days

0

4

Simplicity 5412986CYP

GUARD, 52 DECK, RH - RED

$39.99

$

Usually ships in 2-12 days

0

5

Simplicity 5410492CYP

GUARD, 52 DECK, LH - RED

$54.99

$

Usually ships in 2-12 days

0

6

Simplicity 5413398AYP

SUPPORT, DISCHARGE CHUTE - BLK

$32.99

$

Usually ships in 2-12 days

0

7

Simplicity 540557YP

PLATE

$

$

Not available

8

Simplicity 5413500YP

CHUTE, RUBBER DISCHARGE (5104442)

$231.99

$

Usually ships in 2-12 days

0

9

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

Usually ships in 2-12 days

0

10

Simplicity 5061300SM

ROD, MOUNT, CHUTE 61, CZ

$13.99

$

In Stock, only 1 left!

0

11

Simplicity 1756152SYP

BLADE, 18", SET OF THREE (3)(SV)

$

$

Not available

12

Simplicity 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, Qty 10

0

13

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 6

0

15

Simplicity 5025477SM

WASHER, BLADE BOLT, 9/16" F436, CZ

$3.99

$

In Stock, Qty 18

0

16

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$3.99

$

In Stock, Qty 5

0

18

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025146X12YP

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ

$3.99

$

In Stock, only 1 left!

0

20

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 7

0

23

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

24

Simplicity 703354

SCREW, 5/16-18

Note: (80003531))

$5.49

$

In Stock, Qty 14

0
