5901463 - Simplicity Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton Seat Mount & Floor (5304310) Parts Diagram

Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton

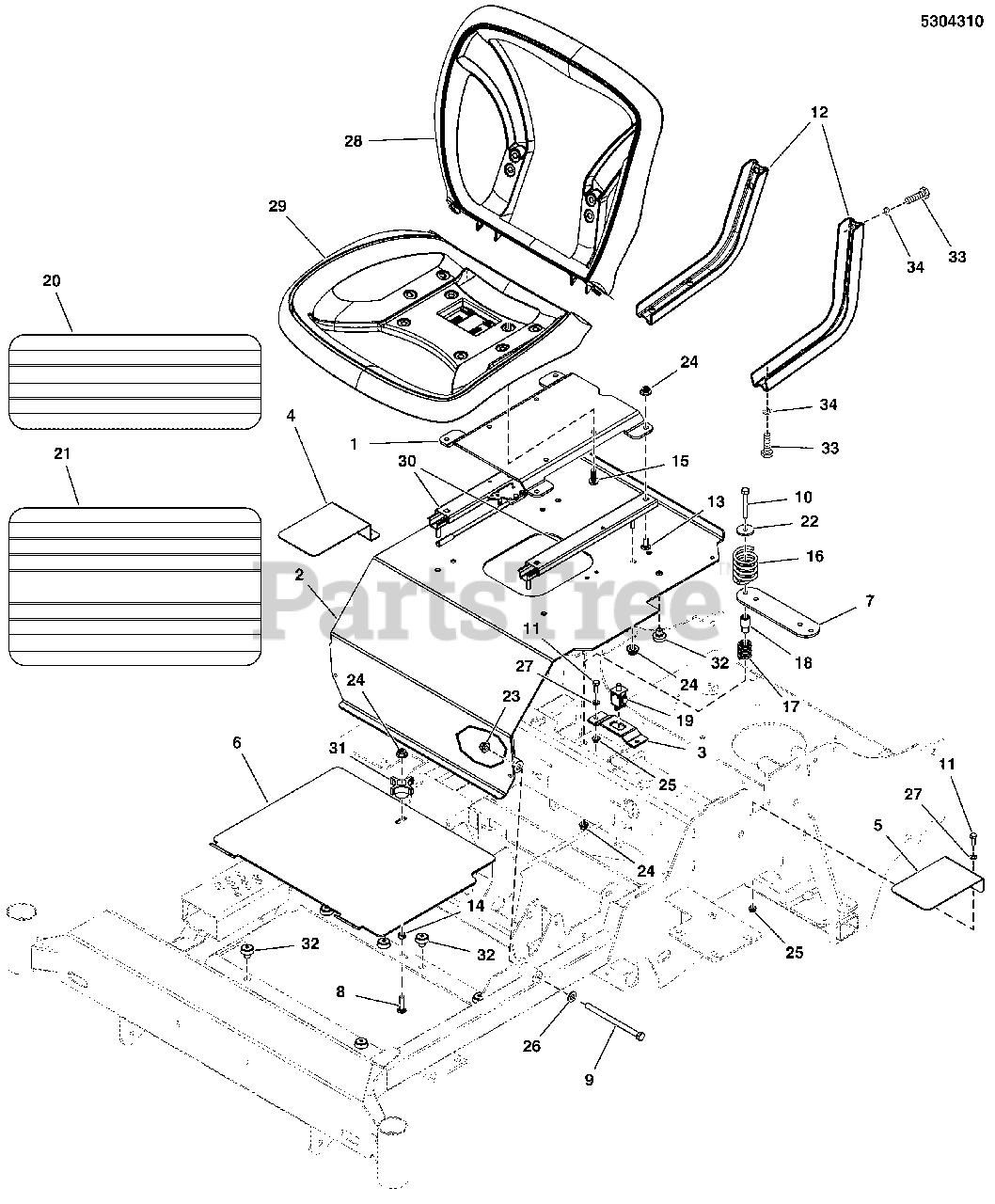

Seat Mount & Floor (5304310) Parts Diagram

  • Title

1

Simplicity 5414329AYP

PLATE, SEAT MOUNT - CONTENDER

$100.99

$

Usually ships in 2-12 days

0

2

Simplicity 5600916YP

ASSM, SEAT PLATE W/DECALS, CNTDR-DOM

Note: (5414325C)

$572.99

$

Usually ships in 2-12 days

0

3

Simplicity 5411845CYP

PLATE, SEAT SWITCH - ORG

$24.99

$

Usually ships in 2-12 days

0

4

Simplicity 5411490AYP

PLATE, FAN GUARD, RH - BLK

$17.99

$

Usually ships in 2-12 days

0

5

Simplicity 5411489AYP

PLATE, FAN GUARD, LH - BLK

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 5411414CYP

PLATE, FLOOR, REMOVABLE - ORG

$113.99

$

Usually ships in 2-12 days

0

7

Simplicity 5402732CYP

PLATE, SEAT SWITCH - ORG

$17.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE CZ

$3.49

$

In Stock, only 2 left!

0

9

Simplicity 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 CZ

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4 GD5 CZ

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 CZ

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1737848AYP

SUPPORT, MESH SEAT (BLACK)

$31.99

$

Usually ships in 2-12 days

0

13

Simplicity 703185

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 703164

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 703354

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC

$5.49

$

In Stock, only 4 left!

0

16

Simplicity 7078299SM

SPRING, SEAT SUPPORT

$15.99

$

In Stock, only 4 left!

0

17

Simplicity 5103070YP

SPRING COMP .76IDX1.3LGX.105WIRE BLACK

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 5102228YP

SPACER, .33 X .66 X 1.31 SHLDR, CZ

$15.99

$

Usually ships in 2-12 days

0

19

Simplicity 5101589YP

SWITCH, PLUNGER, NO, SINGLE POLE SNAP-IN
(Superseded to 84006599)

$13.99

$

Usually ships in 2-12 days

0

20

Simplicity 5101374YP

SAFETY WALK, FLOOR REST, 6.00 X 16.00

$19.99

$

In Stock, only 1 left!

0

21

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X16

$39.99

$

Usually ships in 2-12 days

0

22

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

23

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

25

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (5025391)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 15

0

27

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1738014YP

SEAT, MESH BACK

$257.99

$

In Stock, only 1 left!

0

29

Simplicity 1738013YP

SEAT, MESH BOTTOM

$238.99

$

In Stock, only 2 left!

0

30

Simplicity 1722356SM

SLIDE-SEAT VIPER (2 PC SEAT)

$65.99

$

In Stock, only 1 left!

0

31

Simplicity 1670578SM

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG

$14.99

$

In Stock, only 4 left!

0

32

Simplicity 197546GS

MNT, VBRTN, RBBR

$8.49

$

In Stock, Qty 5

0

33

Simplicity 708715

SCREW, 5/16-18X.750 BUTTON HD PHOS&OIL

Note: (80017909)

$6.49

$

Usually ships in 2-12 days

0

34

Simplicity 5025170SM

WASHER, 5/16 LOCK CZ

$4.49

$

In Stock, only 2 left!

0
