5901492 - Simplicity Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton Hydraulic Group (5303399A) Parts Diagram

Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton

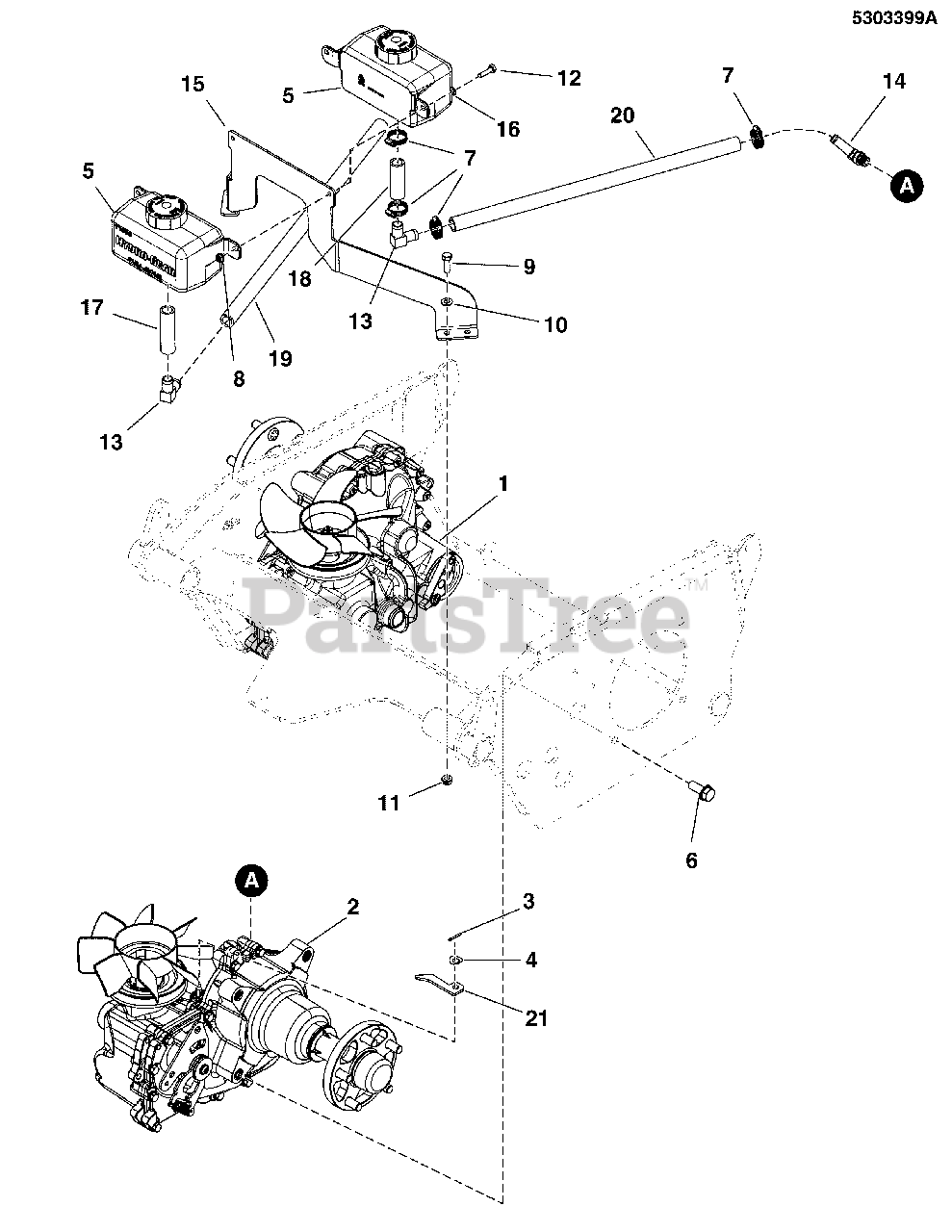

Hydraulic Group (5303399A) Parts Diagram

  • Title

1

Simplicity 5104385YP

TRANS, ZT-4400, RH,LONG AXLE, 1710-1057R
(Superseded to 84008006)

$1842.99

$

Usually ships in 2-12 days

0

2

Simplicity 5104386YP

TRANS, ZT-4400, LH,LONG AXLE, 1710-1057L
(Superseded to 84007999)

$1842.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025201X6SM

PIN, COTTER, 3/32 X 3/4
(Superseded to 703312)

$4.49

$

In Stock, Qty 8

0

4

Simplicity 5023202SM

WASHER,WAVE,M10

$5.49

$

Usually ships in 2-12 days

0

5

Simplicity 5101998YP

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER

$69.99

$

In Stock, only 2 left!

0

6

Simplicity 5025535YP

BOLT, 1/2-13 X 1-1/4, SF, PLT W/PATCH

$7.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021164SM

CLAMP, #10 HOSE, STAINLESS

$4.49

$

In Stock, only 2 left!

0

8

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (5025391)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

10

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

11

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 11

0

12

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 10

0

13

Simplicity 5023119SM

FITTING, 90 DEG, 5/8

$27.99

$

Usually ships in 2-12 days

0

14

Simplicity 5104409YP

FITTING 22.5 ELBOW5/8 TUBE-7/8-14 O-RING

$33.99

$

Usually ships in 2-12 days

0

15

Simplicity 5413062AYP

PLATE, TANK MOUNT, 2100 - BLK

$66.99

$

Usually ships in 2-12 days

0

16

Simplicity 703332

WASHER, 1/4 SAE

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5050933X3YP

HOSE, 5/8, PUSH-LOCK, 3.00

$7.99

$

Usually ships in 2-12 days

0

18

Simplicity 5050933X2P5YP

HOSE, 5/8, PUSH-LOCK, 2.50

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 5050933X23YP

HOSE, 5/8, PUSH-LOCK, 23.00

$

$

Not available

20

Simplicity 5050933X20YP

HOSE, 5/8, PUSH-LOCK, 20.00

$

$

Not available

21

Simplicity 5104436YP

ARM, TRANSMISSION RELEASE, ZT4400

$4.99

$

In Stock, only 1 left!

0
