5901532 - Simplicity 72" Mower Deck, 4900/72 Ansi-Exp 72" Mower Deck - Pulleys, Belt, & Idler Arm (5302040BMF) Parts Diagram

72" Mower Deck, 4900/72 Ansi-Exp

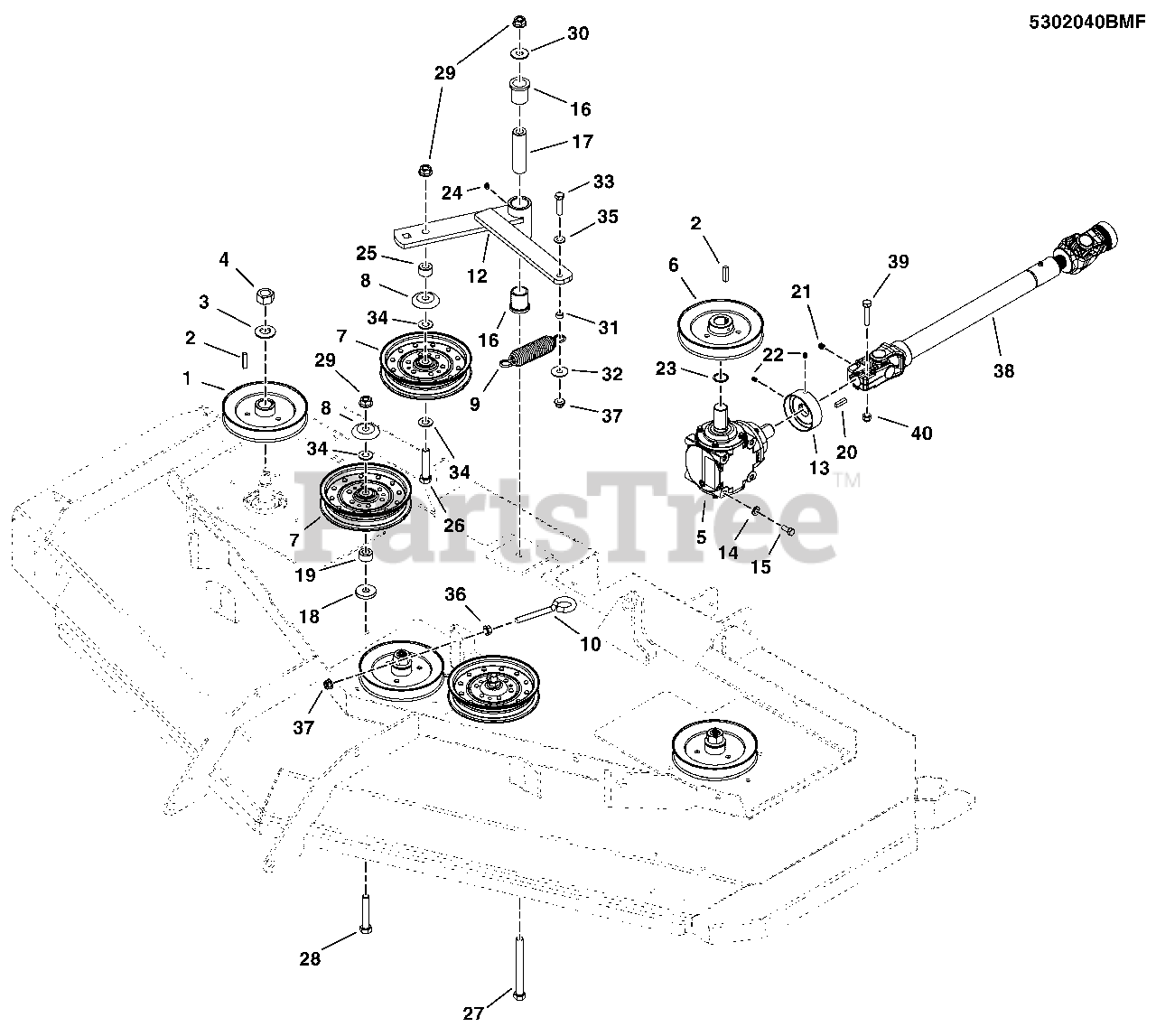

72" Mower Deck - Pulleys, Belt, & Idler Arm (5302040BMF) Parts Diagram

  • Title

1

Simplicity 5023178SM

PULLEY, Spindle, Black (52" Deck, S/N: 586 & above)

$71.99

$

In Stock, only 2 left!

0

2

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

In Stock, only 2 left!

0

3

Simplicity 5025406SM

WASHER, 3/4" Belleville (Included with Complete Spindle Assembly)
(Superseded to 770223)

$4.49

$

In Stock, only 4 left!

0

4

Simplicity 5025405SM

NUT, 3/4-16 Hex (Included with Complete Spindle Assembly)

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 5101164YP

GEAR BOX, RIGHT ANGLE

$1481.99

$

Usually ships in 2-12 days

0

6

Simplicity 5101166YP

PULLEY, 6.25" SPLIT STEEL W/ 1" ID

$152.99

$

Usually ships in 2-12 days

0

7

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$54.99

$

In Stock, Qty 6

0

8

Simplicity 5101103SM

SHIELD, PULLEY BEARING, CZ

$10.99

$

In Stock, only 2 left!

0

9

Simplicity 5100633YP

SPRING-EXT, 1.25 ODX5.70LGX.142WR, BLK

$34.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023497SM

EYEBOLT, 3/8-16 X 5, 2.88 THRD (5021812)

$9.49

$

In Stock, only 1 left!

0

11

Simplicity 5022435YP

BELT, BP-SEC, 156.906EL, ARAMID, WRPD

Note: (Not Shown)

$158.99

$

Usually ships in 2-12 days

0

12

Simplicity 5408313DYP

WELD., IDLER ARM, S800X-72 - RED

$62.99

$

Usually ships in 2-12 days

0

13

Simplicity 5102465YP

GUARD, TRASH, S800X

$87.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025170SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0

16

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 9

0

17

Simplicity 5045022SM

SPACER, .52 X 1.00 X 3.50

$24.99

$

Usually ships in 2-12 days

0

18

Simplicity 5044913SM

WASHER, .53 X 1.50 X .25

$6.99

$

In Stock, only 1 left!

0

19

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56, PM, CZ

$7.49

$

In Stock, only 2 left!

0

20

Simplicity 5050407X8SM

KEY, 1/4 Square x 1

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025063X3YP

SET SCREW, 3/8-16 X 3/8

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025554YP

SOC SET SCREW, 1/4-20X3/8, DRI-LOC PATCH

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 5020864SM

SNAP RING, EXTERNAL, 1 SHAFT

$3.99

$

In Stock, only 2 left!

0

24

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 5101161YP

SPACER, .52 X 1.00 X .63, CZ

$8.99

$

In Stock, only 1 left!

0

26

Simplicity 5025017X20SM

BOLT, 1/2-13 X 2-1/2 GD5 YZ

$5.49

$

In Stock, only 2 left!

0

27

Simplicity 5025017X40SM

BOLT, 1/2-13 X 5" GD5 YZ

$6.49

$

In Stock, Qty 7

0

28

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 YZ

$5.99

$

In Stock, only 1 left!

0

29

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

30

Simplicity 5025150SM

WASHER, 1/2" USS

$3.99

$

In Stock, only 3 left!

0

31

Simplicity 5041930SM

SPACER, .38 X .50 X .27, CZ

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 1 left!

0

33

Simplicity 5025013X12SM

CAPSCREW, Hex Head, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, only 2 left!

0

35

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

36

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 5101173YP

SHAFT, TELESCOPING DRIVE, OUT-FRONT

Note: (Gasoline Models Only)(S/N: 2017795055 & Below)

$446.99

$

Usually ships in 2-12 days

0

38

Simplicity 5105404

DRIVE SHAFT SEALED S800 GAS - NET

Note: (Gasoline Models Only)(S/N: 2017795056 & Above)

$887.99

$

Usually ships in 2-12 days

0

39

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, Qty 5

0

40

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 11

0
