5901561 - Simplicity Contender 52" Zero-Turn Mower, 25hp Briggs & Stratton Seat Mount & Floor Group Parts Diagram

Contender 52" Zero-Turn Mower, 25hp Briggs & Stratton

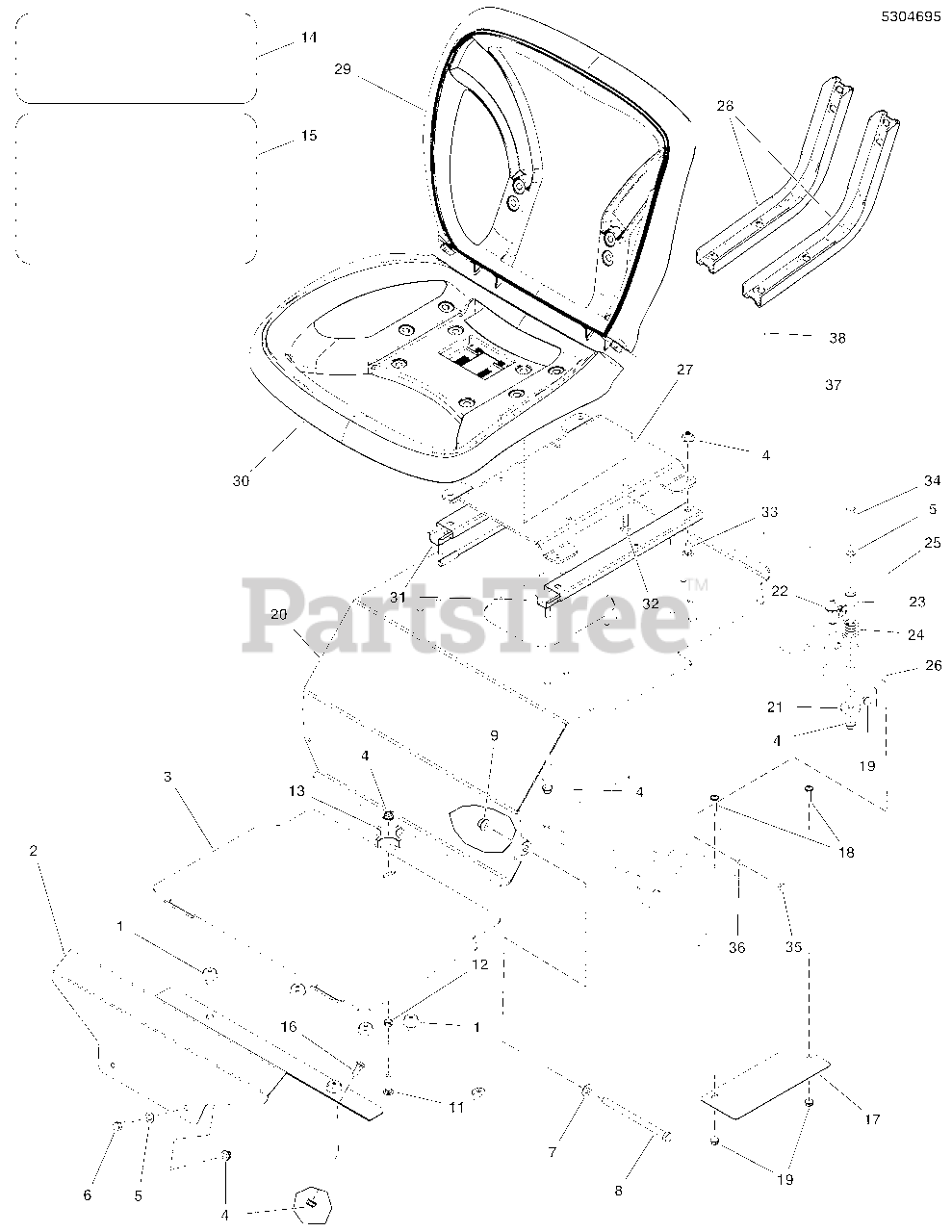

Seat Mount & Floor Group Parts Diagram

  • Title

1

Simplicity 197546GS

MOUNT, Vibration

$8.49

$

In Stock, Qty 5

0

2

Simplicity 5410898CYP

PLATE, FLOOR RIGID, S125XT - ORG

$190.99

$

Usually ships in 2-12 days

0

3

Simplicity 5410296CYP

PLATE, FLOOR, REMOVABLE, IS700 - ORG

$71.99

$

Usually ships in 2-12 days

0

4

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

Note: (5025392)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 703302

WASHER, Flat, 5/16

Note: (5025155)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

7

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

Note: (5025156)

$3.99

$

In Stock, Qty 15

0

8

Simplicity 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 YZ

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 7078299SM

SPRING, SEAT SUPPORT

$15.99

$

In Stock, only 4 left!

0

11

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 703164

NUT, Hex Center Lock, 5/16-18, GRB

Note: (80003675)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 24 in. Models)

$14.99

$

In Stock, only 4 left!

0

14

Simplicity 5101374YP

SAFETY WALK

$19.99

$

In Stock, only 1 left!

0

15

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$39.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 5415847AYP

PLATE, SEAT BELT GUARD - S125XT - BLK

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025299X6SM

CAPSCREW, Button Allen Head, 1/4-20 x 3/4
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 703463

NUT, 1/4-20, GR5 Flanged Nylock, Zinc/Clear
(Superseded to 5025391FS)

Note: (5025391)

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 5600990YP

ASSM, SEAT PLATE W/DECAL (5416034C)

$519.99

$

Usually ships in 2-12 days

0

21

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

22

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC) (gray)

$12.99

$

In Stock, Qty 20+

0

23

Simplicity 5102228YP

SPACER, .33 X .66 X 1.31 SHLDR, CZ

$15.99

$

Usually ships in 2-12 days

0

24

Simplicity 5103070YP

SPRING COMP .76IDX1.3LGX.105WIRE BLACK

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 5415788CYP

PLATE, SEAT SWITCH - ORG

$16.99

$

Usually ships in 2-12 days

0

26

Simplicity 5415787CYP

WELD, OPERATOR PRESENCE - ORG

$49.99

$

Usually ships in 2-12 days

0

27

Simplicity 5415794AYP

PLATE, SEAT MOUNT - CONTENDER - BLK

$103.99

$

Usually ships in 2-12 days

0

28

Simplicity 1737848AYP

SUPPORT, Mesh Seat, R.H.

$31.99

$

Usually ships in 2-12 days

0

29

Simplicity 1738014YP

SEAT, Mesh Back

$257.99

$

In Stock, only 1 left!

0

30

Simplicity 1738013YP

SEAT, Mesh Bottom

$238.99

$

In Stock, only 2 left!

0

31

Simplicity 1722356SM

SLIDE-SEAT VIPER (2 PC SEAT)

$65.99

$

In Stock, only 1 left!

0

32

Simplicity 703354

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5

$5.49

$

In Stock, only 4 left!

0

33

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4, GR5

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 11

0

36

Simplicity 703332

WASHER, 1/4, Flat, GR5 Zinc/Clear

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 708715

SCREW, 5/16-18X.750 BUTTON HD PHOS&OIL

Note: (80017909)

$6.49

$

Usually ships in 2-12 days

0

38

Simplicity 5025170SM

WASHER, Flat

$4.49

$

In Stock, only 2 left!

0
