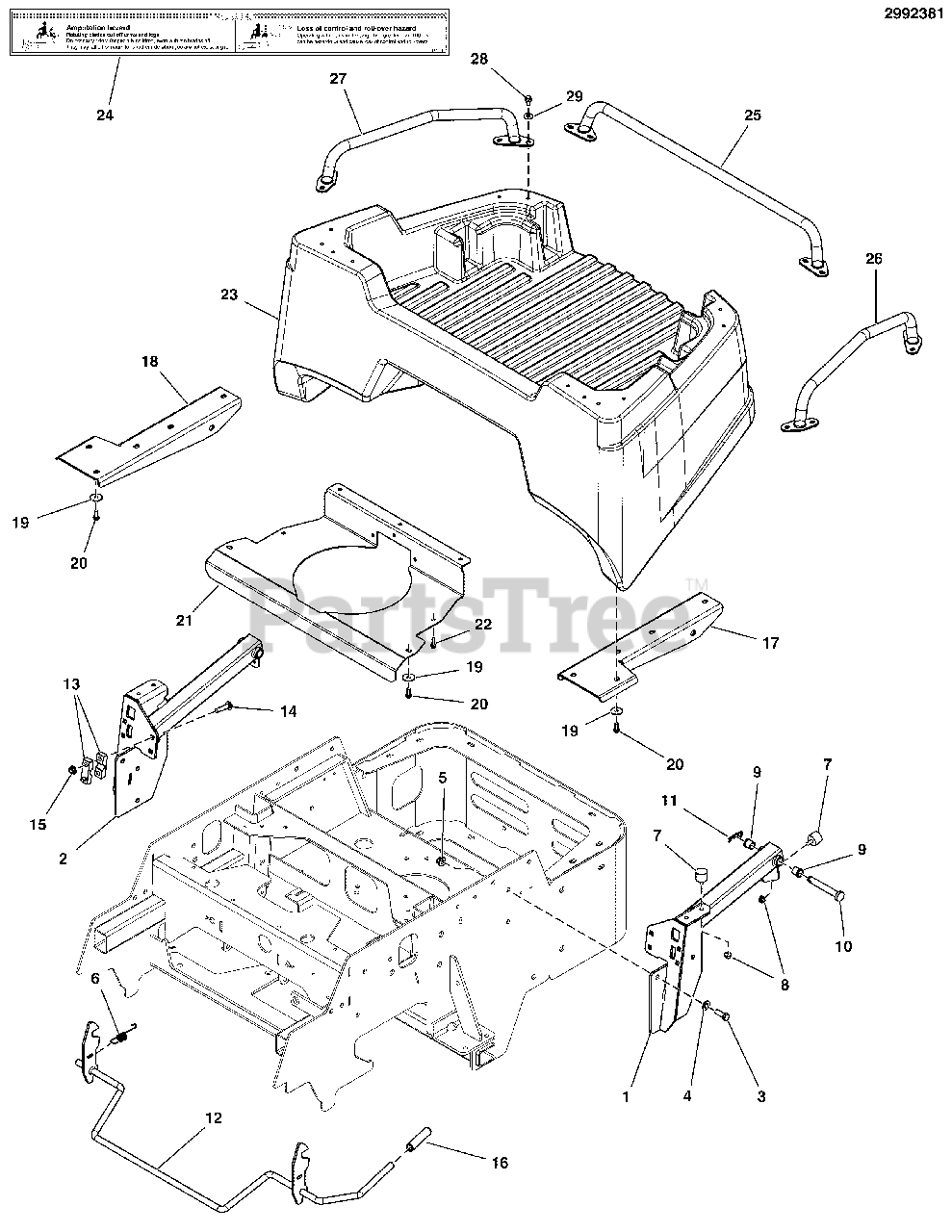

5901565 - Simplicity Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton Cargo Bed Group Parts Diagram

Contender 61" Zero-Turn Mower, 25hp Briggs & Stratton

Cargo Bed Group Parts Diagram

  • Title

1

Snapper 1760784YP

WELDMENT, CARGO BOX SUPPORT-LH (BLACK)

$

$

Currently unavailable

2

Snapper 1760785YP

WELDMENT, CARGO BOX SUPPORT-RH (BLACK)

$

$

Currently unavailable

3

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 CZ

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 703590

WASHER, 3/8 SAE

Note: (5025156)

$3.99

$

In Stock, Qty 9

0

5

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1758283YP

SPRING, EXTENSION

$7.49

$

In Stock, Qty 11

0

7

Simplicity 5022673SM

BUMPER, RUBBER 1/4-20

$20.99

$

In Stock, only 1 left!

0

8

Simplicity 703233

NUT, 1/4-20 HEX SERR. FLANGE

Note: (5025126)

$4.49

$

In Stock, Qty 10

0

9

Simplicity 1715025SM

BUSHING-0.505IDX0.63 ODX0.62 LG NY/GLASS

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1760901YP

PIN, CLEVIS, 1/2 X 3-1/2

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 703300

PIN, 3/32 X 1.600, HAIR, ZINC/CLEAR

Note: (80002737)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1760796AYP

WELDMENT, CARGO BOX LATCH (BLACK)

$199.99

$

Usually ships in 2-12 days

0

13

Simplicity 1760881YP

BEARING, HALF - .267 RAD (NYLON)

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 703296

BOLT,5/16-18X1.500,CARRIAGE,SQ,GR5,ZC/CL

Note: (80003669)

$4.49

$

In Stock, only 3 left!

0

15

Simplicity 704067

NUT,5/16-18,HEX FLNG,CNTR LCK,ZC/CL

Note: (80005941)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1759817YP

GRIP, FOAM, .475 X 3.00 X .095
(Superseded to 5021880SM)

$5.99

$

In Stock, only 2 left!

0

17

Simplicity 1760786AYP

BRACKET, CARGO BED MOUNT (LH)(BLACK)

$63.99

$

Usually ships in 2-12 days

0

18

Simplicity 1760787AYP

BRACKET, CARGO BED MOUNT (RH)(BLACK)

$63.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, Qty 11

0

20

Simplicity 703338

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

Note: (80002437)

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1760893AYP

PLENUM, CARGO - 560Z/CONT BRIGGS (BLACK)

$120.99

$

Usually ships in 2-12 days

0

22

Simplicity 708152

SCREW, HEX WASHER HD - SELF PIERCING

Note: (80012322)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1760830YP

BOX, CARGO - 560Z/CONTENDER

$489.99

$

Usually ships in 2-12 days

0

24

Simplicity 1760818YP

DECAL, 560Z CARGO BED DECAL

$

$

Not available

25

Simplicity 1760855YP

WELDMENT, FRONT RAIL - CARGO (560Z/CONT)

$

$

Not available

26

Simplicity 1760858YP

WELDMENT, LH RAIL - CARGO (560Z/CONT)

$

$

Not available

27

Simplicity 1760862YP

WELDMENT, RH RAIL - CARGO (560Z/CONT)

$

$

Not available

28

Simplicity 1931646SM

SCREW,1/4-20X0.500 HEX WZ LOCK FLG CL/ZN
(Superseded to 7091579SM)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 7091253SM

FW, .281X.75X.051

$4.99

$

Usually ships in 2-12 days

0
