5901742 - Simplicity Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton 48" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton

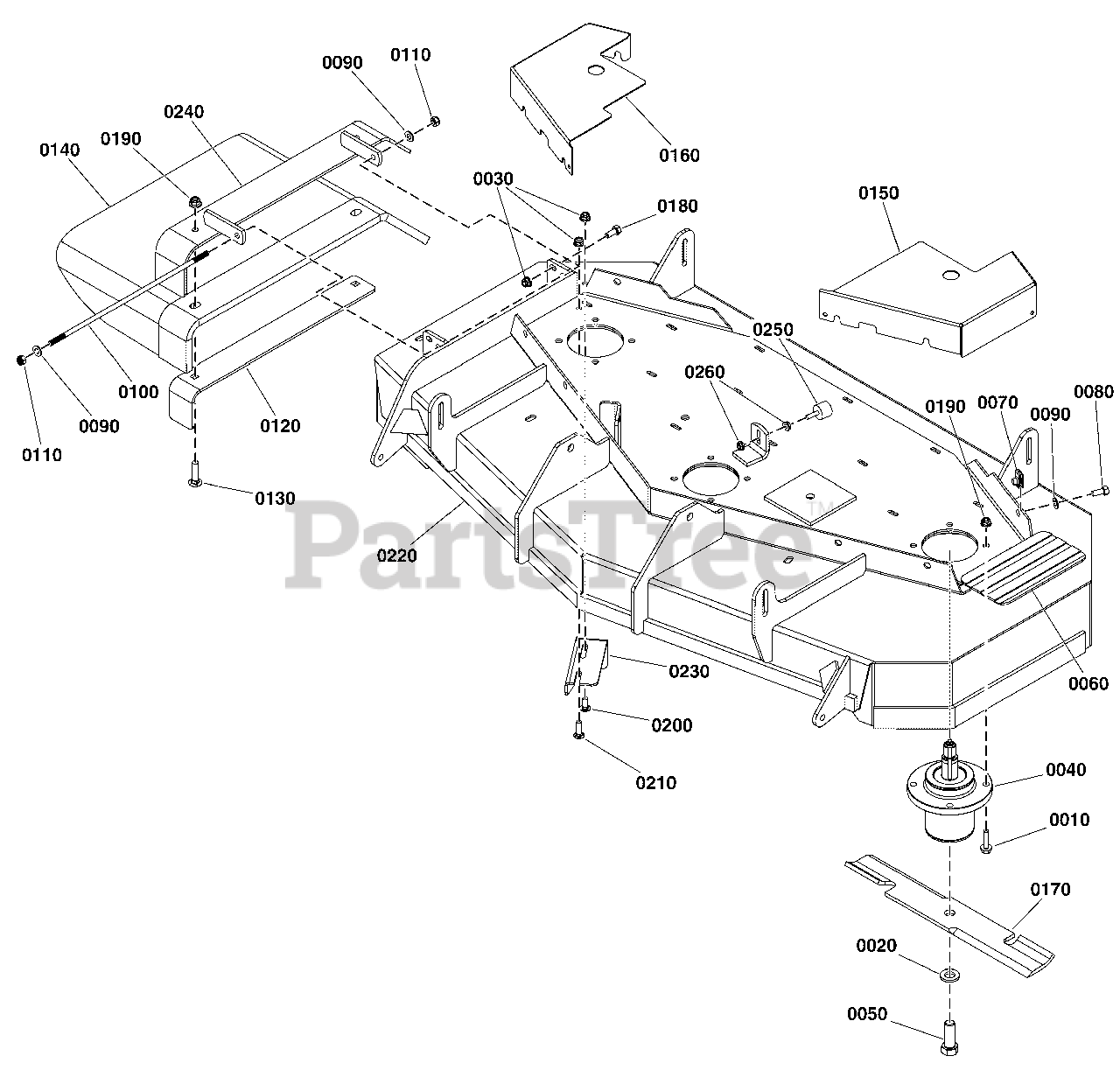

48" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

Note: (Torque spindle mounting bolts to 30 ft-lbs (41 Nm)

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 5025477SM

WASHER, Blade Bolt, 9/16"

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0040

Simplicity 5061095SM

SPINDLE ASSEMBLY, Complete (See Spindle Service Parts group)

$189.99

$

In Stock, only 4 left!

0

0050

Simplicity 770136

BOLT, 5/8-11 X 1 3/4, GR 8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to 120 ft-lbs (163 Nm)

$4.49

$

Usually ships in 2-12 days

0

0060

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.99

$

In Stock, only 1 left!

0

0070

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

0080

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

0090

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 5042555SM

ROD, 5/16 x 13-3/4

$11.99

$

In Stock, only 4 left!

0

0110

Simplicity 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 15

0

0120

Simplicity 5413401AYP

SUPPORT, Chute

$33.99

$

Usually ships in 2-12 days

0

0130

Simplicity 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$4.49

$

In Stock, only 1 left!

0

0140

Simplicity 5413498YP

CHUTE, Discharge

$176.99

$

Usually ships in 2-12 days

0

0150

Simplicity 5408163CYP

GUARD, DECK, LH - ORG

$59.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5408162CYP

GUARD, DECK, RH - ORG

$80.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5101986SYP

BLADE, 16.25 X.25 X 2.5, 1 X 3.5 (SET OF 3)

Note: (Set of 3 blades)

$

$

Not available

0180

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

0190

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 20+

0

0210

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

0220

Simplicity 5601145

DECK SHELL W/ DECALS, CNTDR XT-48

$

$

Currently unavailable

0230

Simplicity 5401344AYP

PLATE, Deflector

$28.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5413403AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK

$

$

Not available

0250

Simplicity 5105237YP

BUMPER, RUBBER, 1/4-20 X 7/8" STUD

$7.49

$

Usually ships in 2-12 days

0

0260

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 10

0
