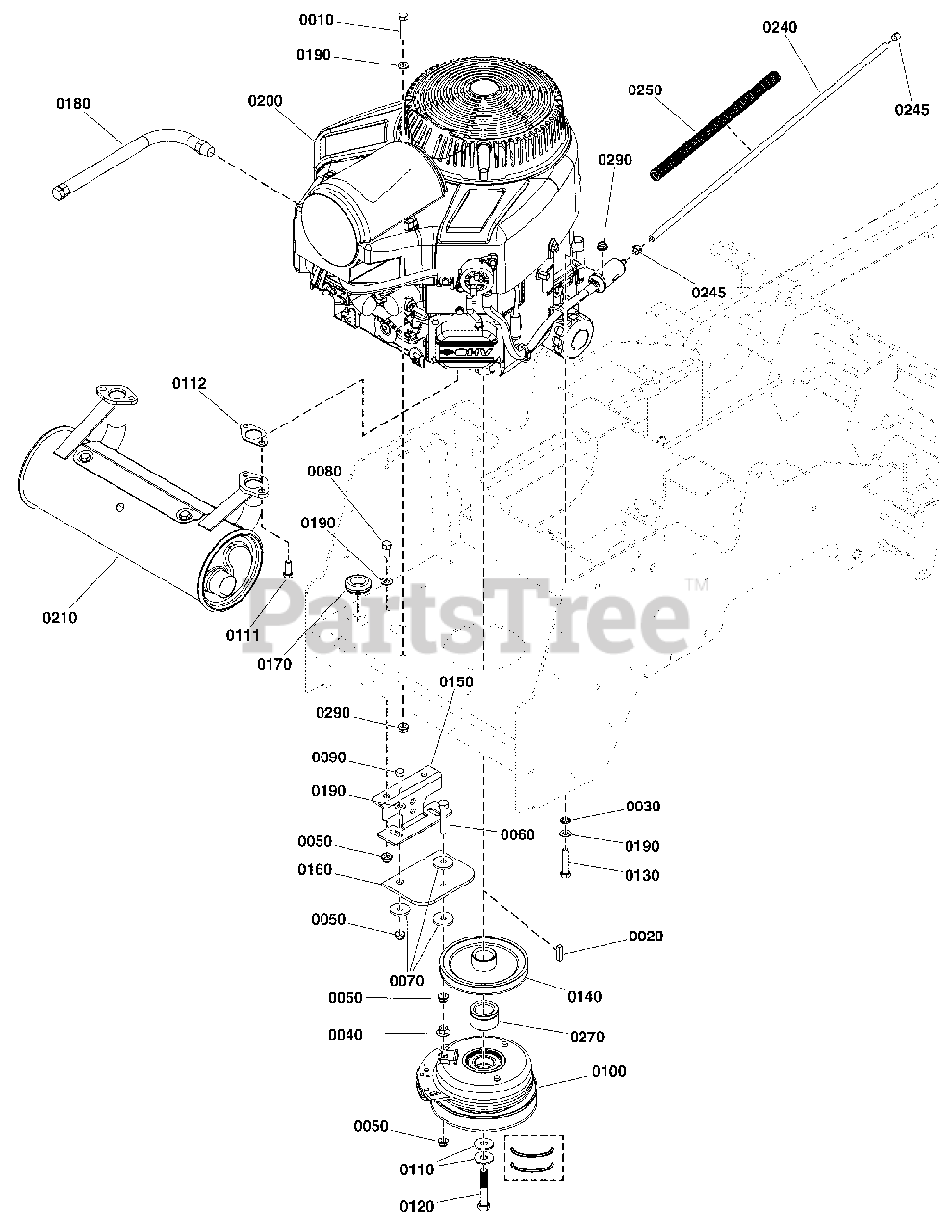

5901742 - Simplicity Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton Engine and PTO Group Parts Diagram

Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton

Engine and PTO Group Parts Diagram

  • Title

0010

Simplicity 5025025X12YP

BOLT-HEX, 5/16-24 X 1-1/2", GD8, PHOS

$4.49

$

Usually ships in 2-12 days

0

0020

Simplicity 5050407X8SM

KEY, 1/4 Square x 1

$4.49

$

In Stock, only 2 left!

0

0030

Simplicity 5025188SM

WASHER, 5/16" Internal Tooth Lock

$4.49

$

Usually ships in 2-12 days

0

0040

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 5

0

0050

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060

Simplicity 5025055X16SM

BOLT, 5/16-18 X 2" GD 5 TFL

$4.49

$

Usually ships in 2-12 days

0

0070

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

Usually ships in 2-12 days

0

0080

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

0090

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 6

0

0100

Simplicity 5105087YP

CLUTCH, WARNER, 125 FT LBS, 1-1/8" BORE

$446.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 2 left!

0

0111

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0112

Simplicity 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 17

0

0120

Simplicity 5102864YP

BOLT CRANKSHAFT

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm)

$5.49

$

In Stock, only 2 left!

0

0130

Simplicity 5025025X14YP

BOLT, 5/16-24 X 1-3/4, GD8, PHOS

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 5103558YP

PULLEY,CRANKSHAFT,1.125ID X 5.5OD A SECT

$59.99

$

In Stock, only 1 left!

0

0150

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 2 left!

0

0170

Simplicity 5021379SM

GROMMET, 7/8"

$6.99

$

Usually ships in 2-12 days

0

0180

Simplicity 5048681SM

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

0190

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 44T977-0005-G1

ENGINE, 25HP B&S COMM TURF, 1-1/8 X 4.29

Note: (Refer to Note: *)

$

$

Currently unavailable

0210

Simplicity 706900

MUFFLER, RIGHT OUTLET ASSY

$235.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5050831X25SM

HOSE 1/4 FUEL - 25

$21.99

$

Usually ships in 2-12 days

0

0245

Simplicity 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

0250

Simplicity 5050833X13YP

WIRE LOOM, 1/2 ID, 13.00 LONG

$7.49

$

Usually ships in 2-12 days

0

0270

Simplicity 5047033SM

SPACER, 1.13 X 1.75 X 1.03, CZ

$14.99

$

In Stock, only 1 left!

0

0290

Simplicity 5025616YP

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS

$3.99

$

In Stock, only 2 left!

0
