5901742 - Simplicity Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton Rear Bumper and ROPS Group Parts Diagram

Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton

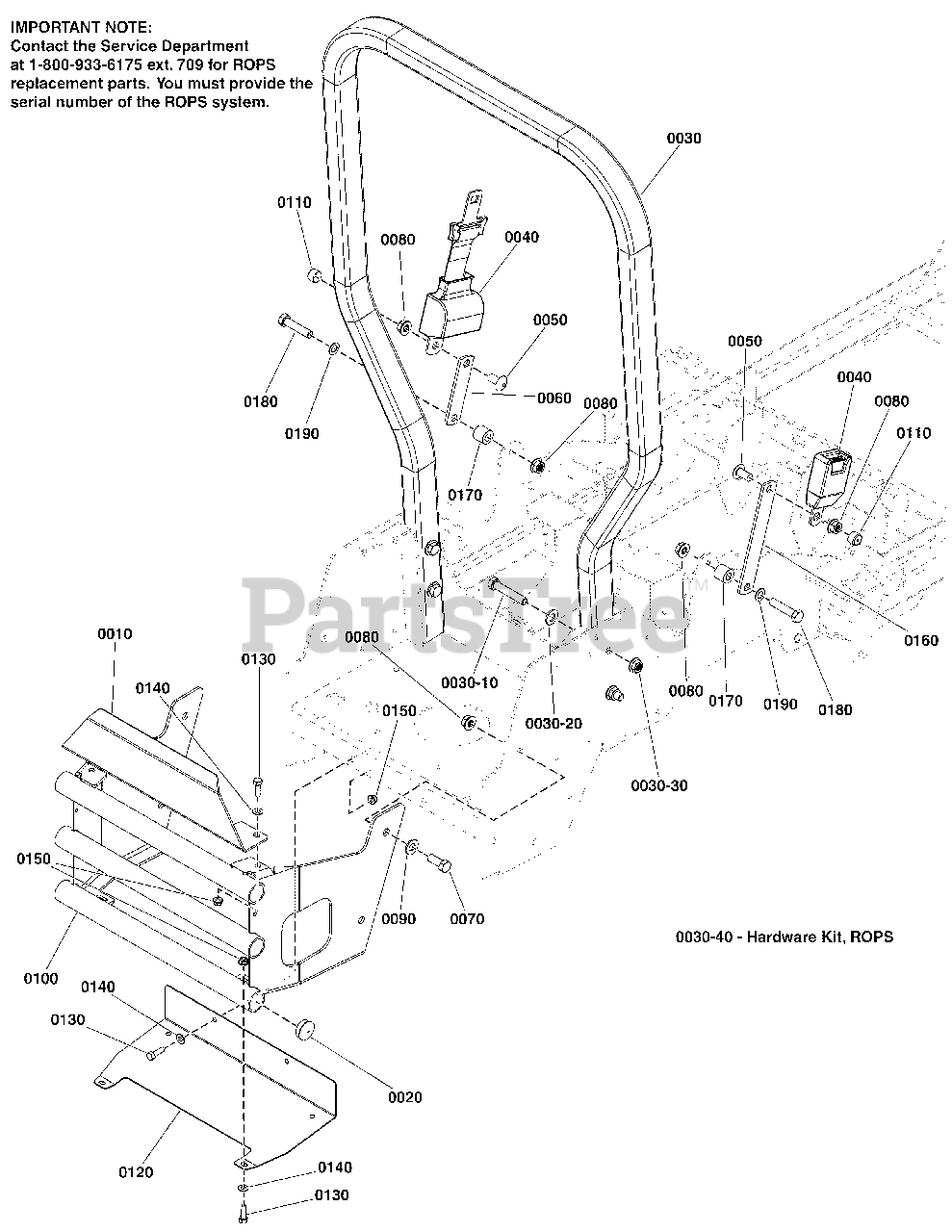

Rear Bumper and ROPS Group Parts Diagram

  • Title

0010

Simplicity 5410480CYP

PLATE, CARB PROTECTOR - ORG

$50.99

$

Usually ships in 2-12 days

0

0020

Simplicity 5023484SM

PLUG, PANEL, 1.25 - BLACK

$3.99

$

In Stock, only 1 left!

0

0030

ROPS, RIDGID, IS600

Note: (Refer to Note: *)

$

$

Not available

0030-10

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 YZ

$5.99

$

In Stock, only 1 left!

0

0030-20

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, only 2 left!

0

0030-30

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

0030-40

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0040

Simplicity 5100139SM

SEAT BELT ASSEMBLY, Standard

$103.99

$

Usually ships in 2-12 days

0

0050

Simplicity 5100267SM

SCREW, 1/2 - 13 X 1.00 SCHS

$3.49

$

Usually ships in 2-12 days

0

0060

Simplicity 5401044AYP

EXTENSION, SEAT BELT - BLK

$6.99

$

Usually ships in 2-12 days

0

0070

Simplicity 5025017X10YP

BOLT, 1/2-13 X 1-1/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

0080

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

0090

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, only 2 left!

0

0100

Simplicity 5410477CYP

WELD, BUMPER - IS600 - ORG

$216.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5101049SM

CAP, VINYL - .750 X .50 - BLK

$2.99

$

Usually ships in 2-12 days

0

0120

Simplicity 5410479AYP

PLATE, HEAT SHIELD - BLK

$33.99

$

Usually ships in 2-12 days

0

0130

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 3 left!

0

0140

Simplicity 5025292SM

WASHER, 5/16" GD.9 FLAT

$3.99

$

In Stock, only 2 left!

0

0150

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0160

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0170

Simplicity 5044673SM

SPACER, .52 X 1.00 X .88, PM, CZ

$8.99

$

Usually ships in 2-12 days

0

0180

Simplicity 5025017X18SM

BOLT, 1/2-13 X 2-1/4" GD5 YZ

$5.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703128

WASHER, 33/64 x .7/8 OD

$3.49

$

In Stock, Qty 20+

0
