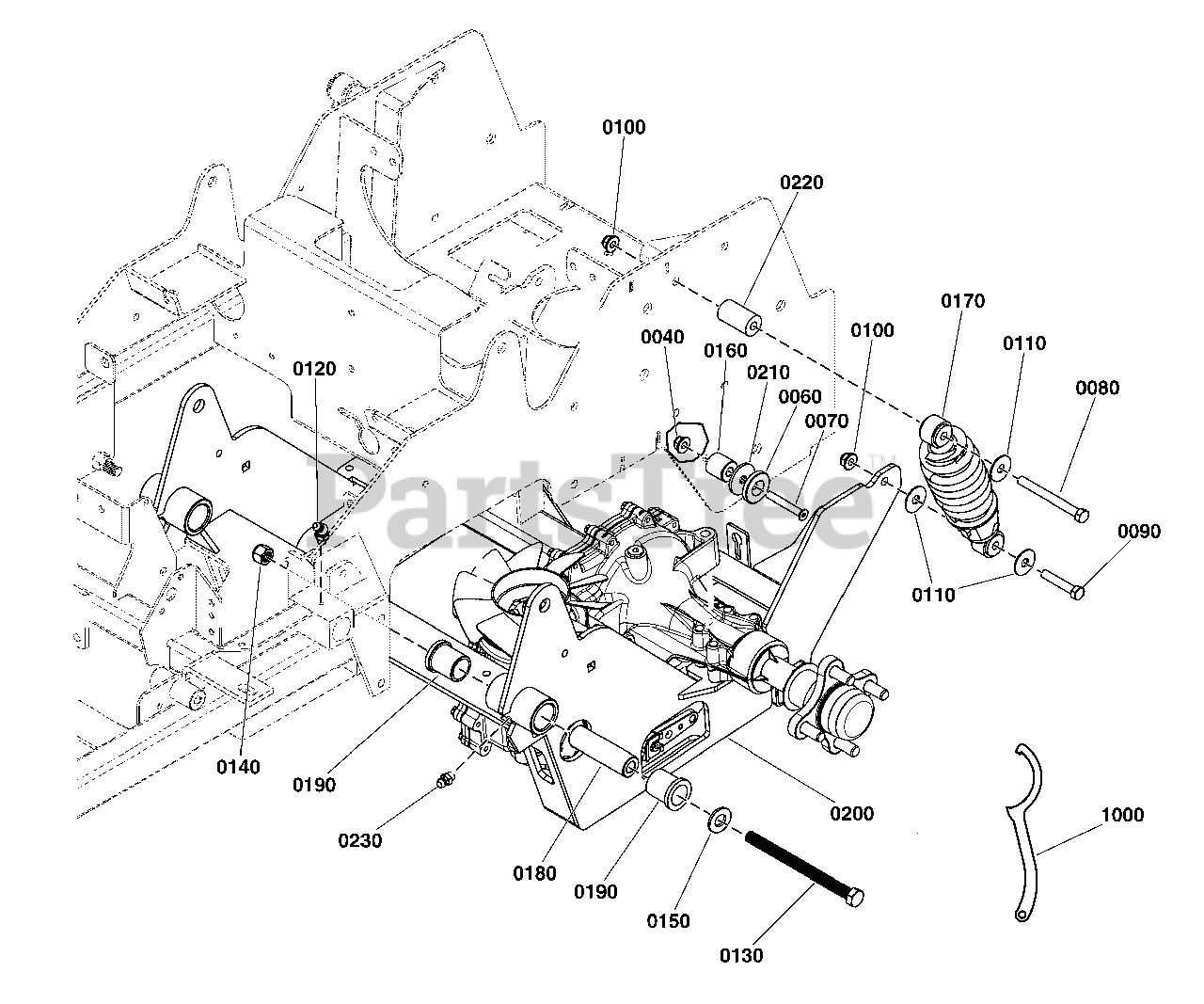

5901742 - Simplicity Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton Rear Suspension Group Parts Diagram

Contender XT 48" Zero-Turn Mower, 24hp Briggs & Stratton

Rear Suspension Group Parts Diagram

  • Title

0040

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0060

Simplicity 5102701YP

SPACER, .34 X 1.54 X .25 - UHMW

$4.49

$

In Stock, only 1 left!

0

0070

Simplicity 5025303X12YP

SCREW, 5/16-18X1.5

$4.49

$

Usually ships in 2-12 days

0

0080

Simplicity 5025013X24SM

CAPSCREW, Hex Head, 3/8-16 x 3

$4.49

$

In Stock, Qty 5

0

0090

Simplicity 5025013X16SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 5025165SM

WASHER, Fender, 3/8

$4.49

$

In Stock, Qty 12

0

0120

Simplicity 5020020SM

GREASE FITTING, 45 DEGREE

$4.49

$

Usually ships in 2-12 days

0

0130

Simplicity 5025488X52YP

BOLT, 1/2-13 X 6-1/2 GD8, YZ
(Superseded to 5025017X52SM)

$10.99

$

In Stock, Qty 8

0

0140

Simplicity 7091325YP

NUT, 1/2-13 HEX NYLON LOCK

$4.99

$

In Stock, only 4 left!

0

0150

Simplicity 5025158SM

WASHER, 1/2

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 5046860SM

SPACER, .39 X 1.00 X .50, PM, CZ

$6.99

$

In Stock, only 2 left!

0

0170

Simplicity 5103624YP

SHOCK ABSORBER, IS600

$232.99

$

In Stock, only 2 left!

0

0180

Simplicity 5061339SM

SPACER, .52 X 1.00 X 3.42

$14.99

$

Usually ships in 2-12 days

0

0190

Simplicity 5021541SM

BUSHING, FLANGE

$10.99

$

In Stock, Qty 20+

0

0200

Simplicity 5408633CYP

WELD, SUSPENSION CRADLE, IS600 - ORG

$710.99

$

Usually ships in 2-12 days

0

0210

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

In Stock, only 1 left!

0

0220

Simplicity 5100896SM

SPACER, .390 X 1.00 X 1.00 - YZ

$8.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$4.49

$

In Stock, only 2 left!

0

1000

Simplicity 5022853SM

WRENCH, SPANNER, CZ

$16.99

$

Usually ships in 2-12 days

0
