5901744 - Simplicity Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

Contender XT 61" Zero-Turn Mower, 24hp Briggs & Stratton

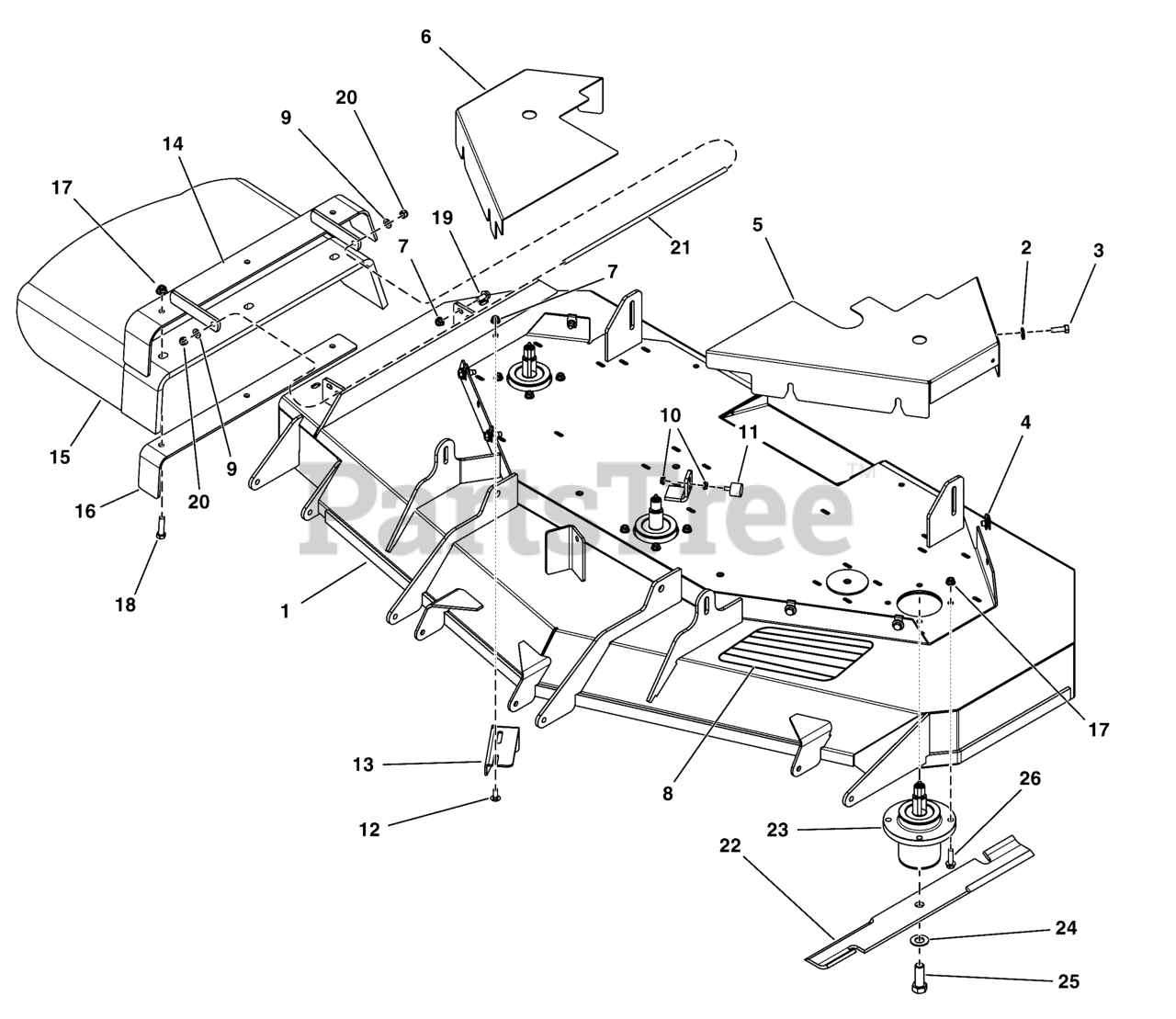

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Simplicity 5601192

DECK SHELL W/ DECALS, CNTDR XT-61

$

$

Currently unavailable

2

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

4

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 5413073CYP

GUARD 61" LH - ORG

$146.99

$

Usually ships in 2-12 days

0

6

Simplicity 5413243CYP

PLATE, GUARD, 61, RH - ORG

$101.99

$

Usually ships in 2-12 days

0

7

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

8

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.99

$

In Stock, only 1 left!

0

9

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 10

0

11

Simplicity 5105237YP

BUMPER, RUBBER, 1/4-20 X 7/8" STUD

$7.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5401344AYP

PLATE, Deflector

$28.99

$

Usually ships in 2-12 days

0

14

Simplicity 5413387AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 84003246)

$89.99

$

Usually ships in 2-12 days

0

15

Simplicity 5413499YP

CHUTE, RUBBER DISCHARGE (5104442)

$170.99

$

Usually ships in 2-12 days

0

16

Simplicity 5413385AYP

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$29.99

$

In Stock, Qty 5

0

17

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, only 4 left!

0

20

Simplicity 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 15

0

21

Simplicity 5061300SM

MOUNT, Chute

$14.99

$

In Stock, only 2 left!

0

22

Simplicity 5101755BMYP

BLADE 21 X .25 X 2.5

$27.99

$

Usually ships in 2-12 days

0

23

Simplicity 5061095SM

SPINDLE ASSEMBLY, Complete (See Spindle Service Parts group)

$189.99

$

In Stock, only 4 left!

0

24

Simplicity 5025477SM

WASHER, Blade Bolt, 9/16"

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 770136

BOLT, 5/8-11 X 1 3/4, GR 8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0
