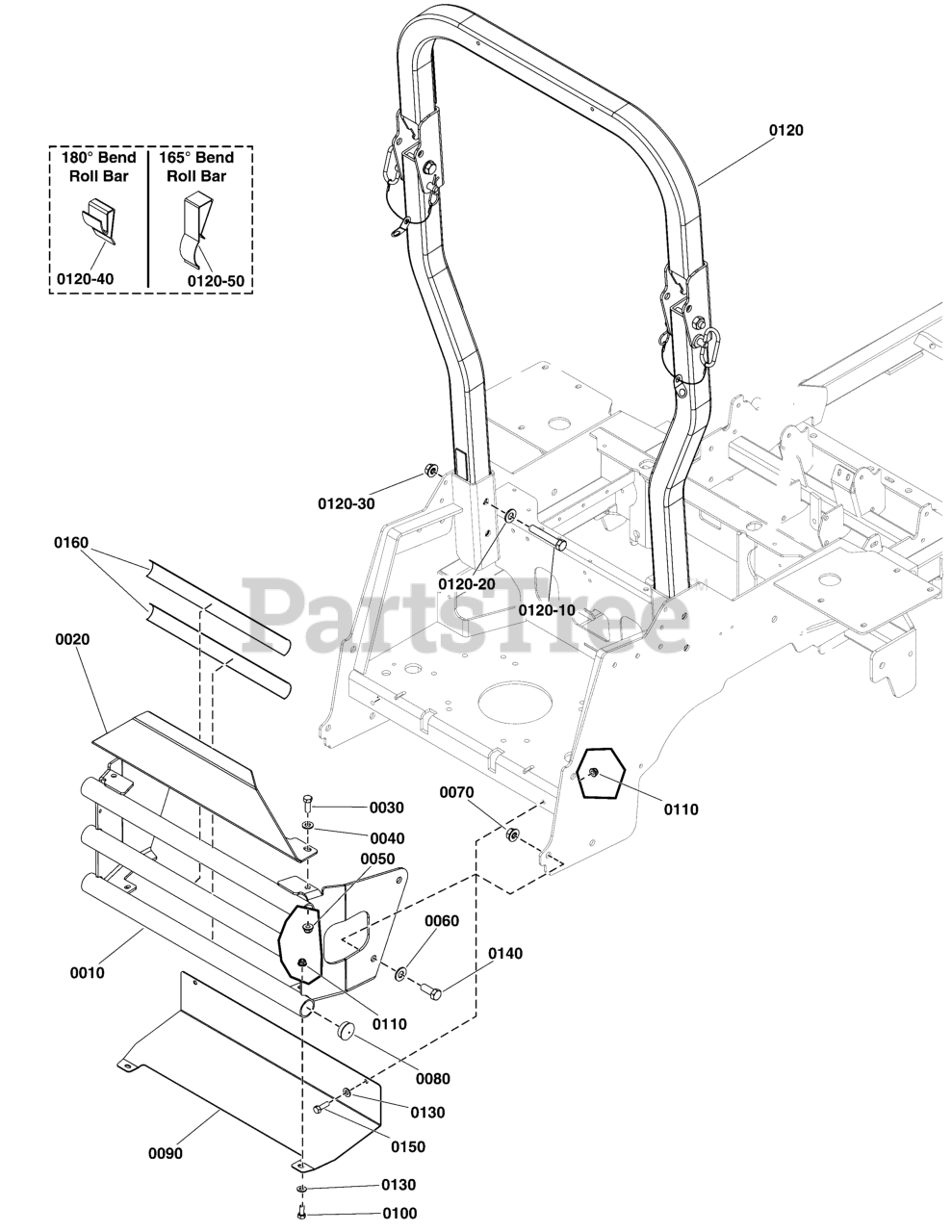

5901748 - Simplicity Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton Rear Bumper and ROPS Group S/N: 4000015531 & Above Parts Diagram

Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton

Rear Bumper and ROPS Group S/N: 4000015531 & Above Parts Diagram

  • Title

0010

Simplicity 5410483CYP

WELD, BUMPER - IS700 - ORG

$256.99

$

Usually ships in 2-12 days

0

0020

Simplicity 5410486CYP

PLATE, CARB PROTECTOR - ORG

$53.99

$

Usually ships in 2-12 days

0

0030

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, only 1 left!

0

0040

Simplicity 5025293SM

WASHER, 3/8" GR. 9 FLAT

$4.49

$

In Stock, Qty 8

0

0050

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 5025158SM

WASHER, 1/2

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 5023484SM

PLUG, PANEL, 1.25 - BLACK

$4.49

$

In Stock, Qty 13

0

0090

Simplicity 5410485AYP

PLATE, HEAT SHIELD, IS700 - BLK

$71.99

$

Usually ships in 2-12 days

0

0100

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

0110

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0120

ROPS, IS700/IS2100/S125XT

Note: (Refer to Note: *)

$

$

Not available

0120-10

Simplicity 5025017X24SM

BOLT, 1/2-13 X 3 GD5 YZ

$5.99

$

In Stock, Qty 6

0

0120-20

Simplicity 5025158SM

WASHER, 1/2

$4.49

$

In Stock, Qty 20+

0

0120-30

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, Qty 20+

0

0120-40

Simplicity 5103403X1YP

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.99

$

Usually ships in 2-12 days

0

0120-50

Simplicity 5105140X1YP

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$6.49

$

Usually ships in 2-12 days

0

0130

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 5025017X10YP

BOLT, 1/2-13 X 1-1/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

0150

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

0160

Simplicity 84002227

TAPE

$7.49

$

Usually ships in 2-12 days

0
