5901780 - Simplicity Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton Main Frame and Front Suspension Group Parts Diagram

Citation XT 61" Zero-Turn Mower, 27hp Briggs & Stratton

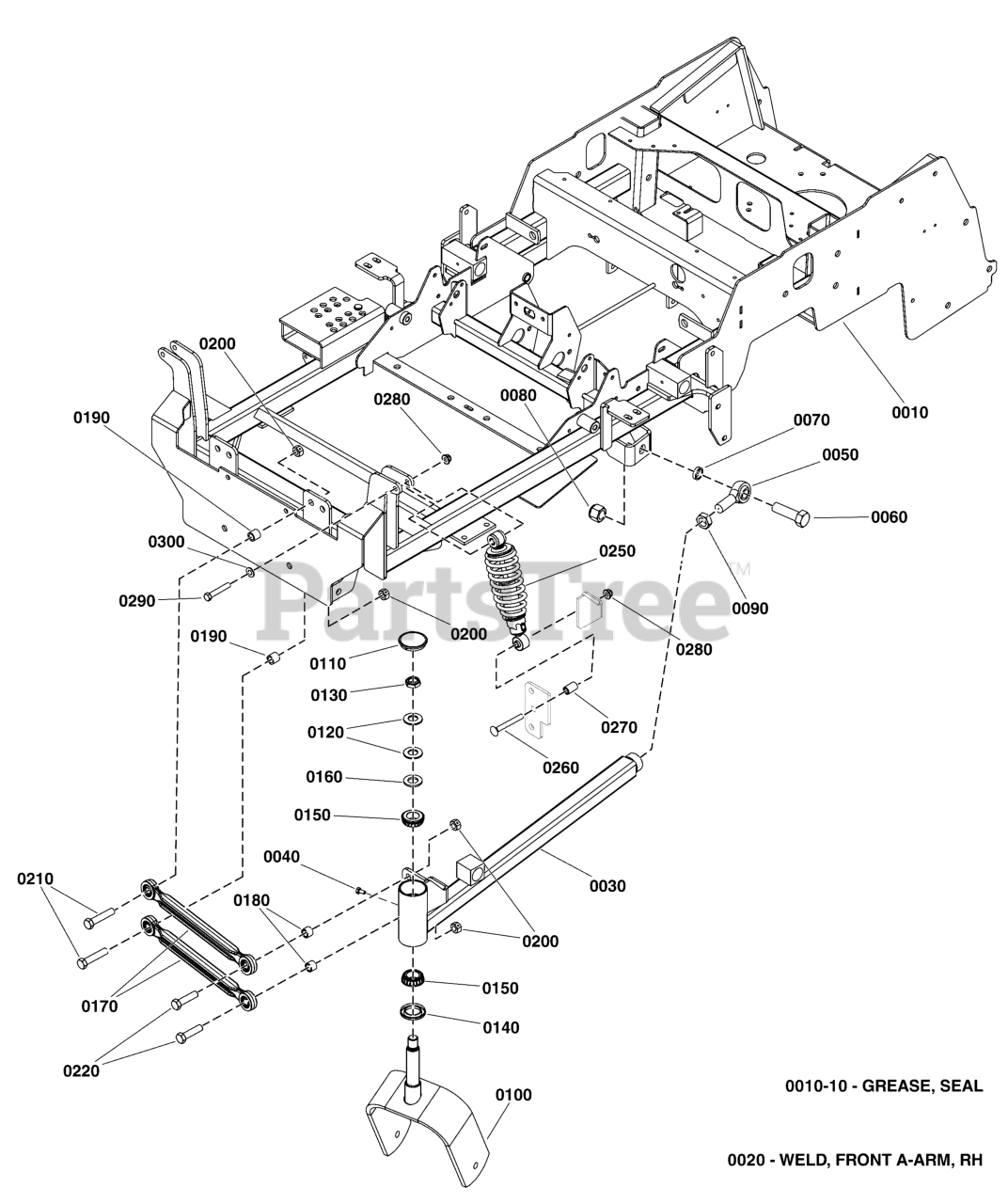

Main Frame and Front Suspension Group Parts Diagram

  • Title

0010

WELD, MAIN FRAME, ISX800Z - ORG

Note: (Refer to Note: *)

$

$

Not available

0010-10

Simplicity 5020883SM

CUP, BEARING (SV)

$9.49

$

In Stock, Qty 20+

0

0020

Simplicity 84002459

WELD, FRONT A-ARM, RH, 61 - ORG

$267.99

$

Usually ships in 2-12 days

0

0030

Simplicity 84002460

WELD, FRONT A-ARM, LH, 61 - ORG

$326.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5025457SM

BOLT, 1/4-28 X 1/2, GD5 YZ

$3.99

$

In Stock, only 2 left!

0

0050

Simplicity 5022039SM

BALL JOINT, 3/4-16, MALE

$38.99

$

In Stock, only 1 left!

0

0060

Simplicity 5025265X20YP

BOLT, 3/4-16 X 2-1/2 YZ GD8

$10.99

$

Usually ships in 2-12 days

0

0070

Simplicity 5047461SM

SPACER, .76 X 1.00 X .25

$4.99

$

In Stock, only 2 left!

0

0080

Simplicity 5025284SM

NUT, Hex, Nylon Lock, 3/4-16

$3.49

$

In Stock, only 2 left!

0

0090

Simplicity 5025093SM

NUT, Hex, Jam, 3/4-16

$4.49

$

In Stock, only 2 left!

0

0100

Simplicity 5600966YP

KIT-YOKE REPLACEMENT
(Superseded to 84003067)

$287.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5102929YP

CAP, LOW PROFILE, STEEL

$9.99

$

Usually ships in 2-12 days

0

0120

Simplicity 5025449SM

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

In Stock, Qty 14

0

0130

Simplicity 5025448SM

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, only 4 left!

0

0140

Simplicity 5021072SM

SEAL, GREASE

$7.99

$

In Stock, Qty 13

0

0150

Simplicity 5020884SM

BEARING, TAPPERD ROLLER, 1"

$26.99

$

In Stock, Qty 20+

0

0160

Simplicity 5025160SM

WASHER, 3/4" SAE

$4.49

$

In Stock, Qty 7

0

0170

Simplicity 84002002

CONTROL ARM, CAST

$80.99

$

Usually ships in 2-12 days

0

0180

Simplicity 5047027SM

SPACER, .51 X .75 X .56, CZ

$5.49

$

In Stock, Qty 13

0

0190

Simplicity 84002461

SPACER, .50 X .75 X .66, CZ

$8.99

$

In Stock, only 2 left!

0

0200

Simplicity 5025332SM

NUT, 1/2-13 HEX SIDE LOCK

$3.49

$

In Stock, only 1 left!

0

0210

Simplicity 5025017X16YP

CAPSCREW, Hex Head, 1/2-13 x 2

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 5025017X14YP

BOLT, 1/2-13 X 1-3/4 GD5 YZ

$3.99

$

In Stock, only 3 left!

0

0250

Simplicity 84001896

ABSORBER, SHOCK

$150.99

$

Usually ships in 2-12 days

0

0260

Simplicity 84001932

BOLT, 3/8-16 X 3, CARRIAGE, GD5, CZ

$3.99

$

Usually ships in 2-12 days

0

0270

Simplicity 5101933YP

SPACER, .39 X .63 X 1.00, YZ

$4.99

$

Usually ships in 2-12 days

0

0280

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0290

Simplicity 5025013X18SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$4.49

$

In Stock, Qty 8

0

0300

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0
